- The 6-pin P7 High Flex (Left side) Power&I/O Cable can be used to power the camera, I/O signal wiring, and is available in a variety of lengths.
MV-ACP-H6p(left)-open-HF-3m

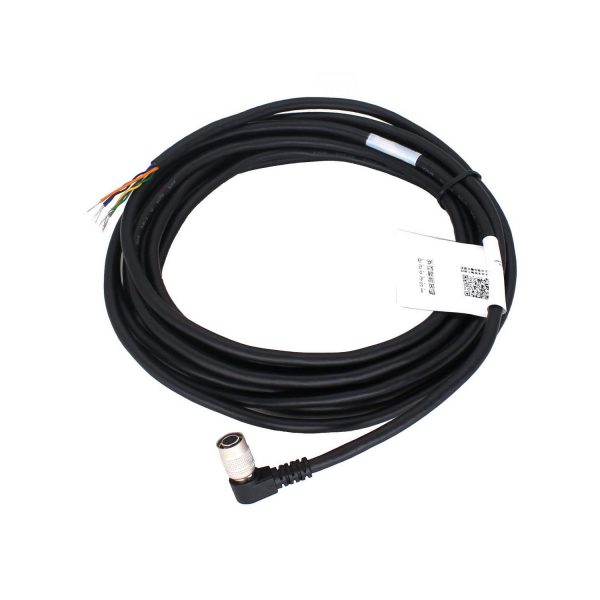

HIKROBOT Power/IO Cable, Hirose 6pin Flexible, Right Angle HR10A-7P-6S (left) to Open, 3m
HIKROBOT Power/IO Cable, Hirose 6pin Flexible, Right Angle HR10A-7P-6S (left) to Open, 3m
Hikrobot provides high-quality cable products including power line, I/O control line, data transmission line to fulfill diverse application needs.
The cables’ length covers 0.5 m – 80 m to meet requirements in different scenarios. Even at the maximum length, the data transmission maintains high stability. Some cables also have motion performance, support the application scenes of moving drag chains.
Product Downloads:
| Model | Product Model | MV-ACP-H6p(left)-open-HF-3m |
| Type | MV-ACP-H6p(left)-open-HF-3m | |

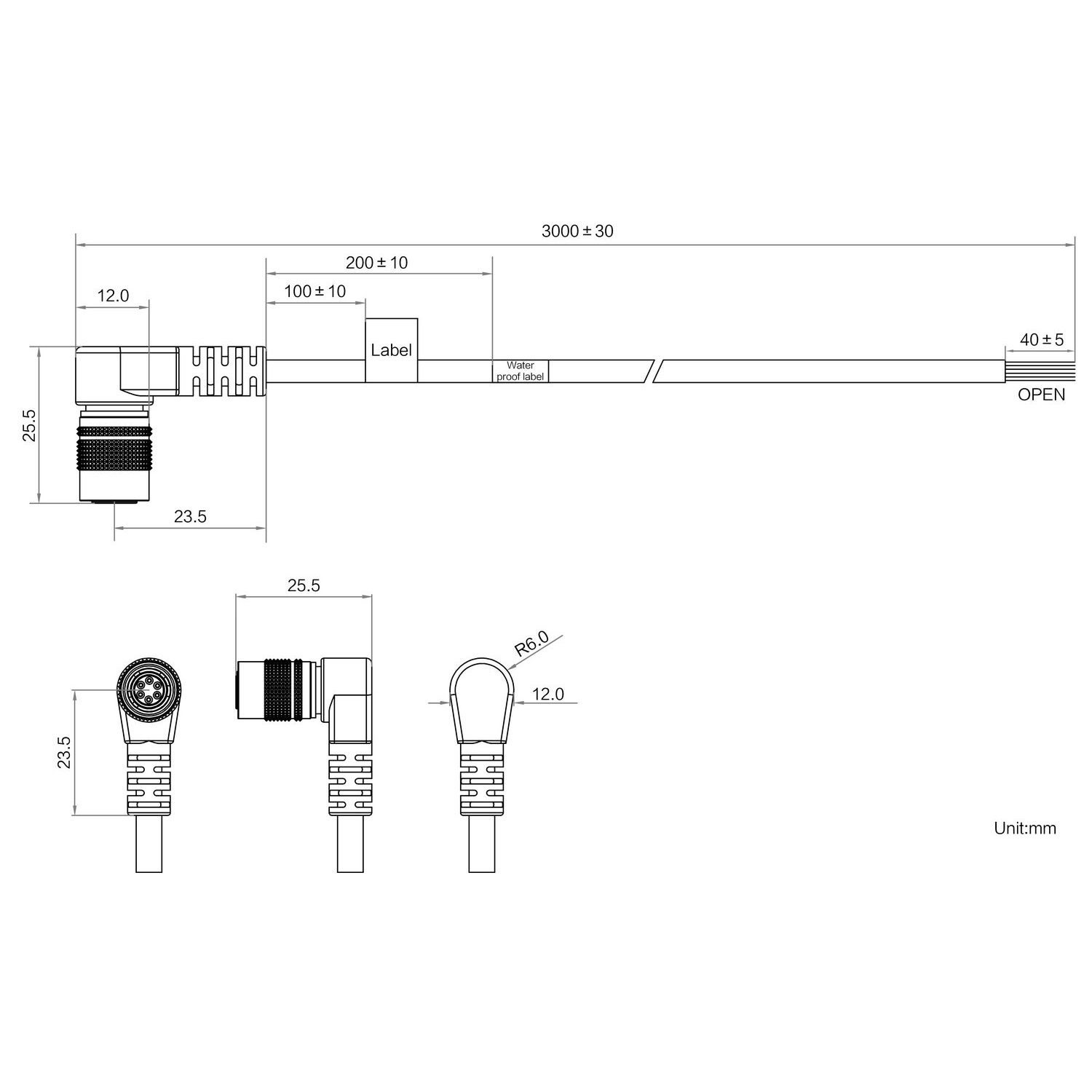

| Physical specification | End A connector | P7 6-pin，Femal，Left side |
| End B connector | Open | |
| Cable diameter | 5.5 mm | |
| Length | 3 m | |
| Cable mechanical | 2P*28AWG+2C*23AWG+AB | |
| Jacket | PVC | |
| Cable color | Black | |
| Connector model | made in China | |
| Connector durability | ≥ 750 cycles | |
| Min. bending radius | 66 mm | |
| Applicable scenario | Tank chain | |
| Max. U-type bending cycles | ≥ 5 million times | |
| Electrical specification | Max. voltage | 30 VDC |
| Additional information | Working temperature | -20℃~80℃ |
| Certification | RoHS2.0 | |
| Packaging | Individual package |
