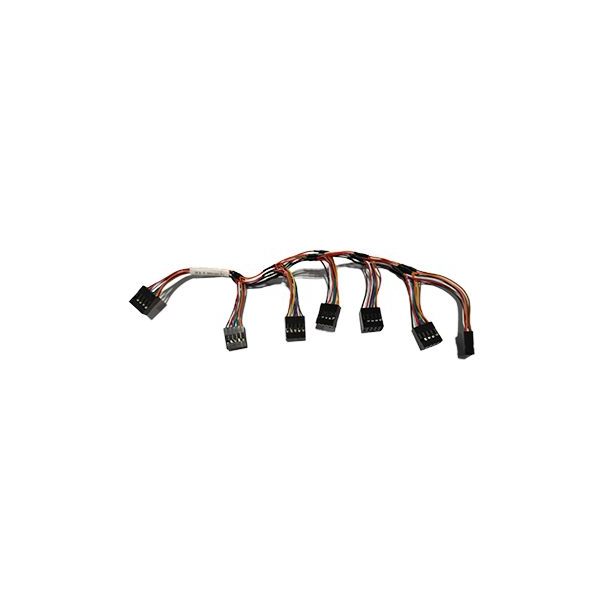

- The Frame Grabber Internal I/O Casecade Cable (Flexible) can be used for I/O signal wiring of multiple frame grabbers, and can support up to seven interfaces.
MV-ACP-TJC8x7-FL-0.6m
HIKROBOT Power/IO Cable, Frame Grabber internal I/O cable, TJC8 9pin, 0.6m
HIKROBOT Power/IO Cable, Frame Grabber internal I/O cable, TJC8 9pin, 0.6m
Hikrobot provides high-quality cable products including power line, I/O control line, data transmission line to fulfill diverse application needs.
The cables’ length covers 0.5 m – 80 m to meet requirements in different scenarios. Even at the maximum length, the data transmission maintains high stability. Some cables also have motion performance, support the application scenes of moving drag chains.
Product Downloads:
| Model | Product Model | MV-ACP-TJC8x7-FL-0.6m |
| Type | FG I/O expansion cable | |

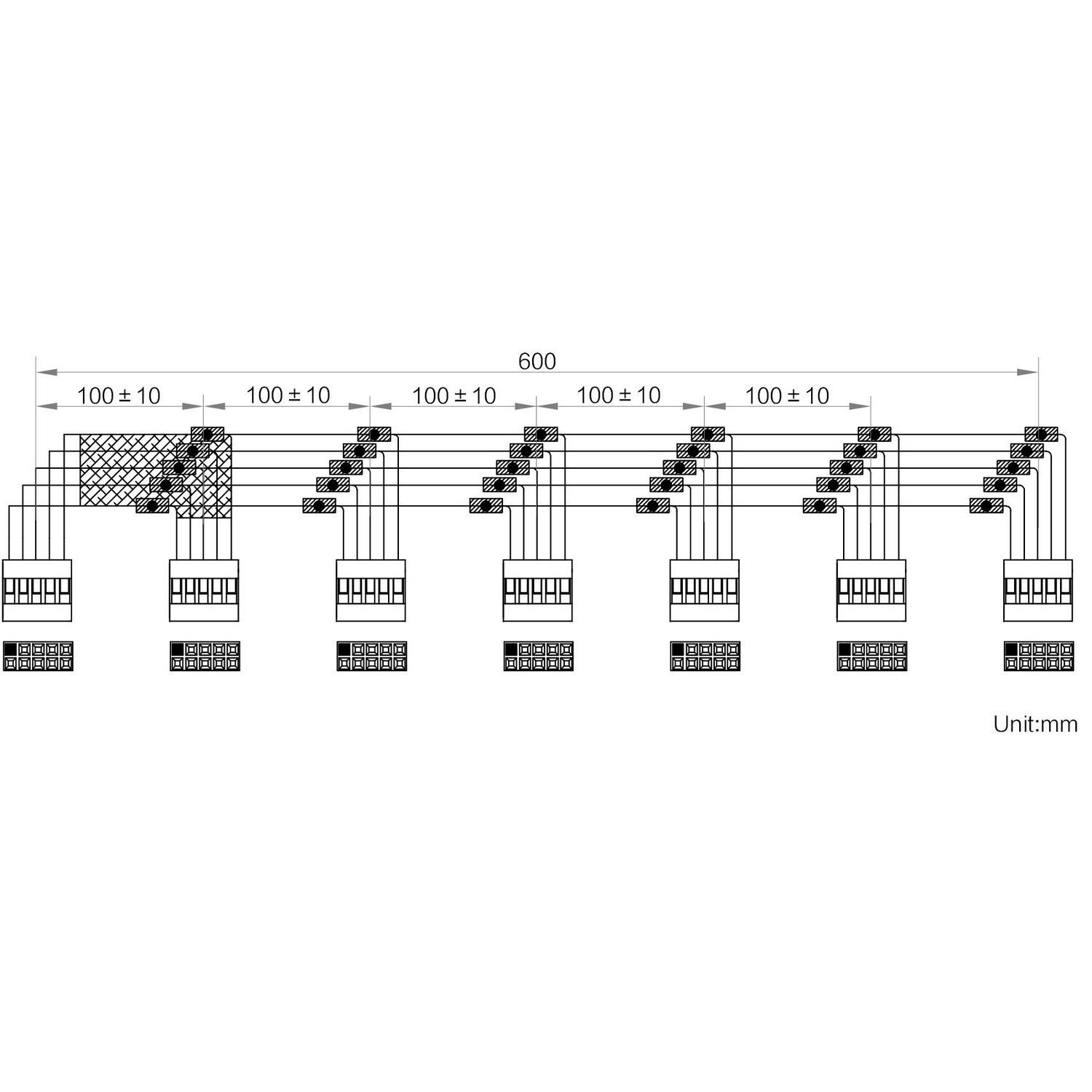

| Physical specification | Interface | 9-pin Female Header*7 |
| Cable diameter | 8.5 mm | |
| Length | 0.6 m | |
| Cable mechanical | UL1571+28AWG+PVC(70-80P) | |
| Jacket | PVC | |
| Cable color | Black | |
| Connector durability | >100 cycles | |
| Applicable scenario | Static scene | |
| Electrical specification | Max. voltage | 30 VDC |
| Additional information | Working temperature | -20℃ ~ 80℃ |
| Certification | RoHS | |
| Packaging | Individual package |
