- USB3.0 flexible data cable can be used for data transmission and power supply of USB3.0 interface cameras.
MV-ACU3-MBMs-AM-FL(EMC)-3m

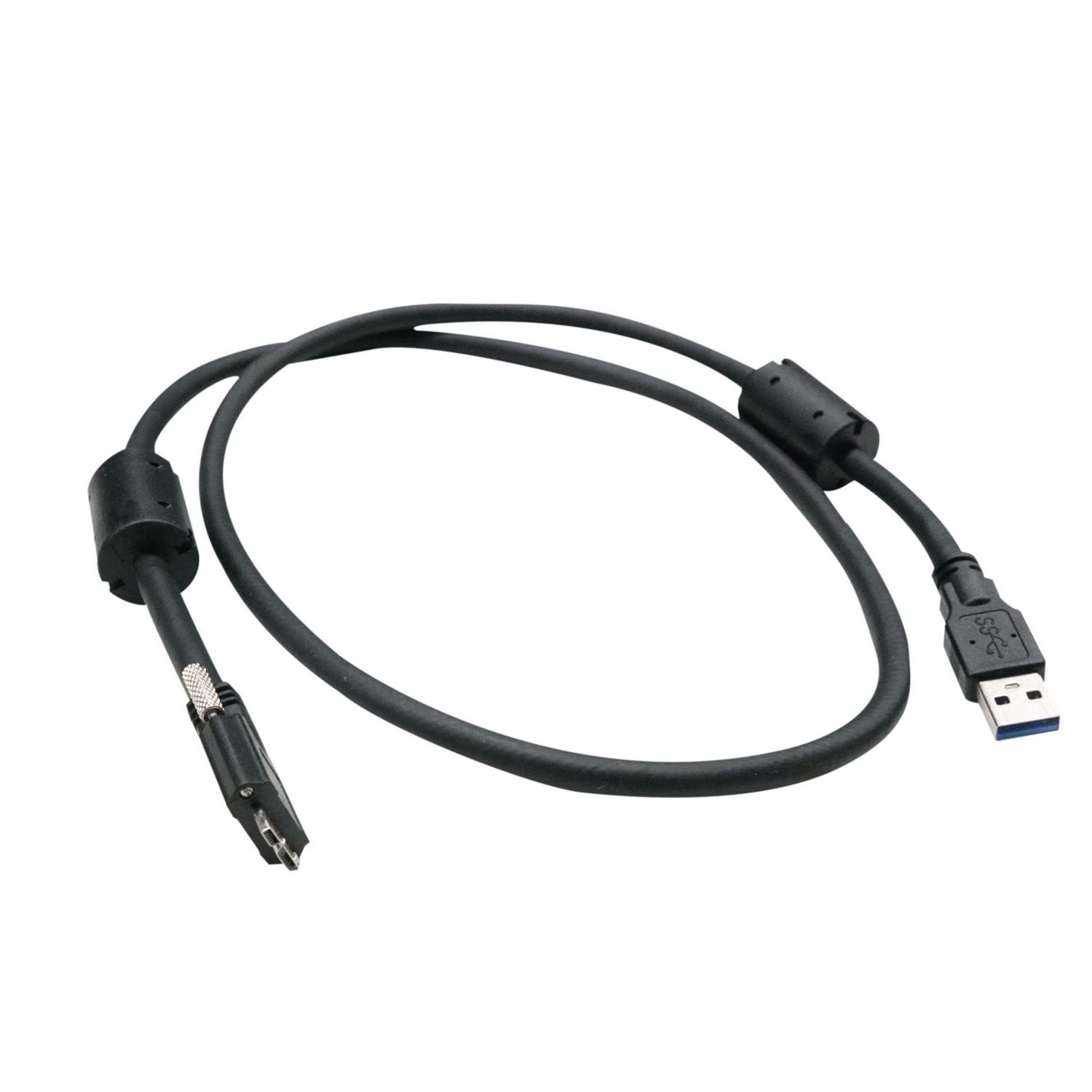

HIKROBOT Data Cable, Flexible USB3.0 EMC Cable, Micro BM to A male, 3m
HIKROBOT Data Cable, Flexible USB3.0 EMC Cable, Micro BM to A male, 3m
Hikrobot provides high-quality cable products including power line, I/O control line, data transmission line to fulfill diverse application needs.
The cables’ length covers 0.5 m – 80 m to meet requirements in different scenarios. Even at the maximum length, the data transmission maintains high stability. Some cables also have motion performance, support the application scenes of moving drag chains.
Product Downloads:

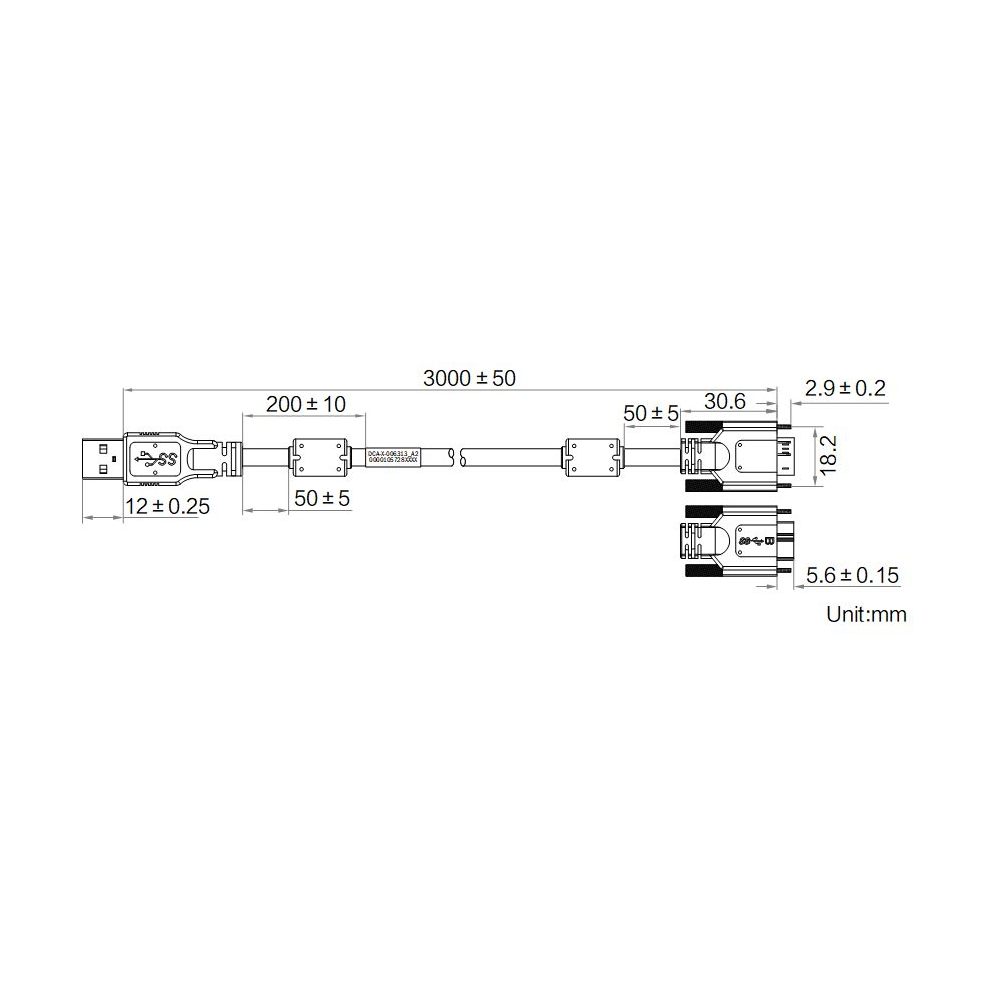

| Model | Model | MV-ACU3-MBMs-AM-FL(EMC)-3m |
| Name | Flexible USB3.0 data cable (high shielding) | |
| Physical specifications | A end interface | Micro-B male(screw) |
| B end interface | A male | |
| Wire harness diameter | 6.8 mm | |
| Length | 3 m | |
| Wire structure | 26#*1P+24#*2C+26#*(1P+D)+AL+D+B, with magnetic ring | |
| Outer covering material | Nitrile PVC | |
| Wire color | Black | |
| Connector durability | >750 plug-in and pull-out cycles | |
| Minimum bending radius | 81.6 mm | |
| Applicable scenarios | Drag chain | |
| Drag chain (U-type) sliding cycle number | 100,000 times | |
| Electrical Specifications | Maximum Operating Voltage | 5 VDC |
| Other Information | Operating Temperature | -20°C~ 80°C |
| Certification | RoHS,UL | |
| Packaging | Individual Packaging Bag |
