- The USB3.0 Standard Data Cable can be used for data transmission and power supply of USB3.0 interface cameras, and is available in a variety of lengths.
MV-ACU3-MBMs-AM-ST-3m
HIKROBOT Data Cable, USB3.0, Micro BM to A male, 3m
HIKROBOT Data Cable, USB3.0, Micro BM to A male, 3m
Hikrobot provides high-quality cable products including power line, I/O control line, data transmission line to fulfill diverse application needs.
The cables’ length covers 0.5 m – 80 m to meet requirements in different scenarios. Even at the maximum length, the data transmission maintains high stability. Some cables also have motion performance, support the application scenes of moving drag chains.
Product Downloads:
| Model | Product Model | MV-ACU3-MBMs-AM-ST-3m |
| Type | MV-ACU3-MBMs-AM-ST-3m | |

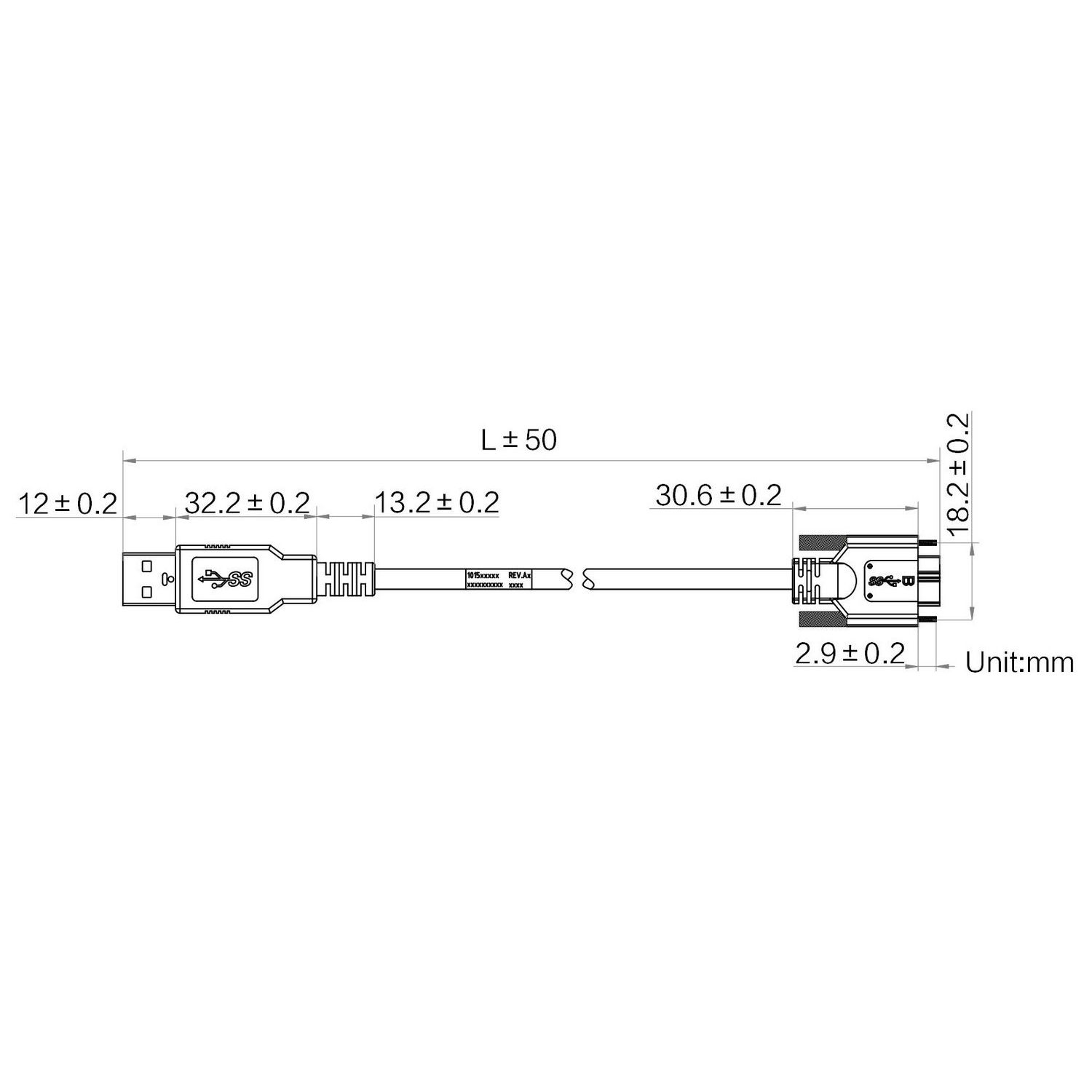

| Physical specification | End A connector | Micro-B male (with screw) |
| End B connector | A male | |
| Cable diameter | 6.8 mm | |
| Length | 3 m | |
| Cable mechanical | (26#*1P+EAM)*2+26#*1P*20#*2C+AEB | |
| Jacket | Nitrile PVC | |
| Cable color | Black | |
| Connector durability | >750 cycles | |
| Min. bending radius | 81.6 mm | |
| Applicable scenario | Static scenes | |
| Electrical specification | Max. voltage | 5 VDC |
| Additional information | Working temperature | -20℃~ 80℃ |
| Certification | RoHS，UL | |
| Packaging | Individual package |
