MV-ACXP12-HDBNC-HDBNC-ST-5m

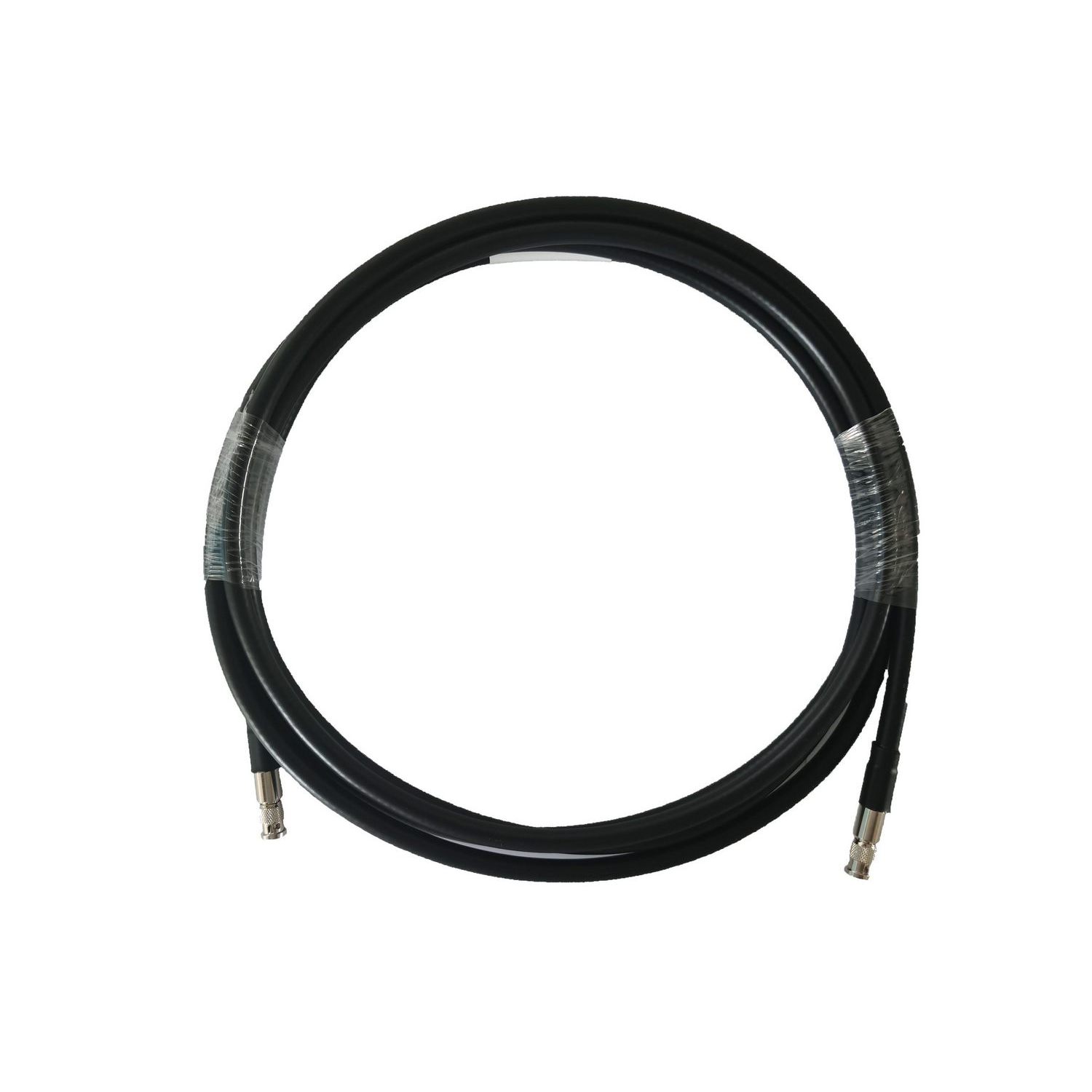

HIKROBOT Data Cable, COAXPRESS, HD-BNC to HD-BNC, single core, 5m

COAXPRESS, HD-BNC to HD-BNC, single core, 5m

HIKROBOT Data Cable, COAXPRESS, HD-BNC to HD-BNC, single core, 5m

Hikrobot provides high-quality cable products including power line, I/O control line, data transmission line to fulfill diverse application needs.
The cables’ length covers 0.5 m – 80 m to meet requirements in different scenarios. Even at the maximum length, the data transmission maintains high stability. Some cables also have motion performance, support the application scenes of moving drag chains.

Product Downloads:

Data Sheet

SKU: MV-ACXP12-HDBNC-HDBNC-ST-5m Categories: , Tags: , , ,
Compare
  • The CXP-12 Standard Data Cable can be used for data transmission of CoaxPress interface cameras, and is available in a variety of lengths.

ModelProduct ModelMV-ACXP12-HDBNC-HDBNC-ST-5m
TypeMV-ACXP12-HDBNC-HDBNC-ST-5m

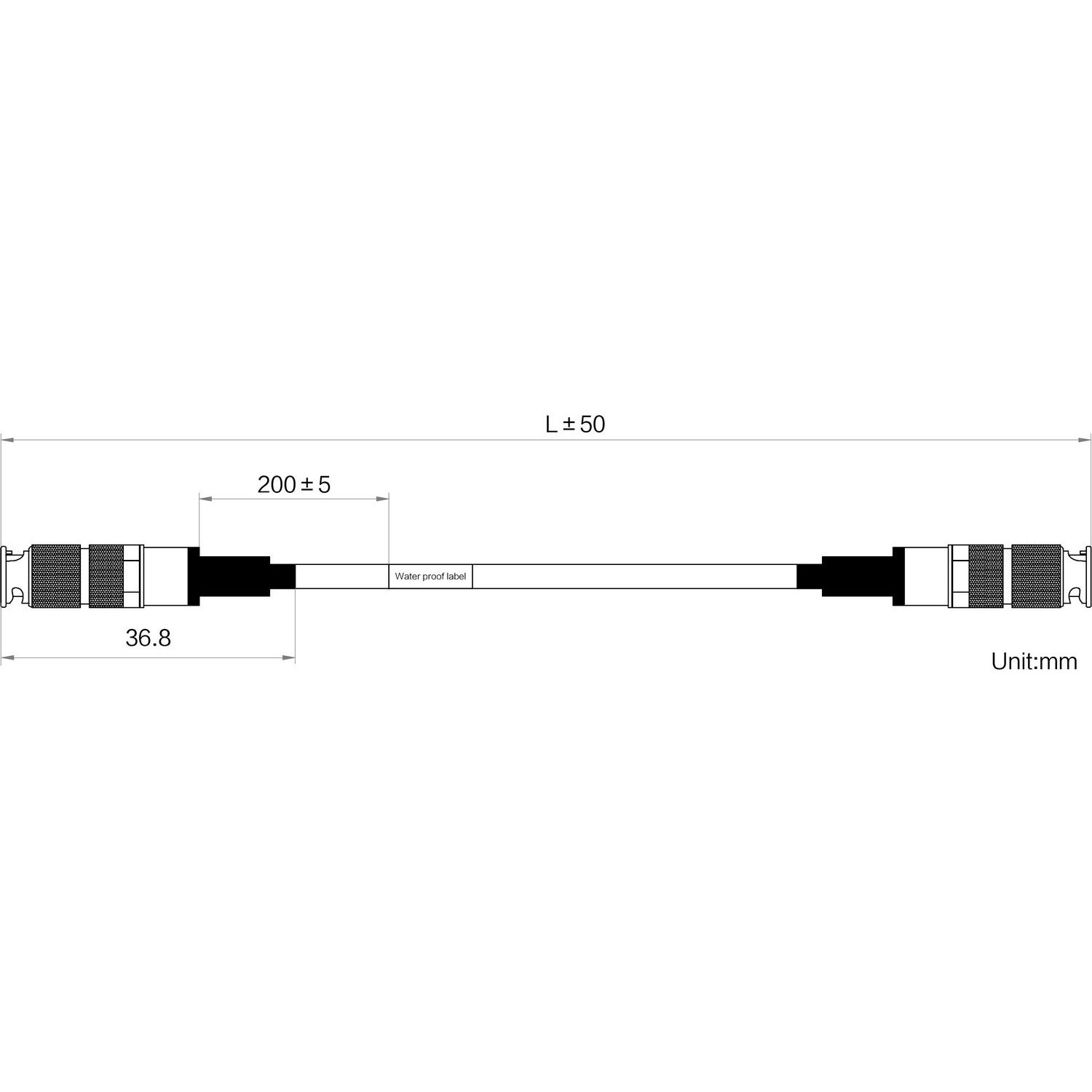

Physical specificationEnd A connectorHD-BNC
End B connectorHD-BNC
Cable diameter7 mm
Length5 m
Cable mechanicalCoaxial
JacketPVC
Cable colorBlack
Connector durability500 cycles
Min. bending radius84 mm
Applicable scenarioStatic scenes
Electrical specificationMax. voltage300 VDC
Additional informationWorking temperature-20℃~ 80℃
CertificationUL
PackagingIndividual package
