MV-ACXP6-DIN-BNC-HF-5m

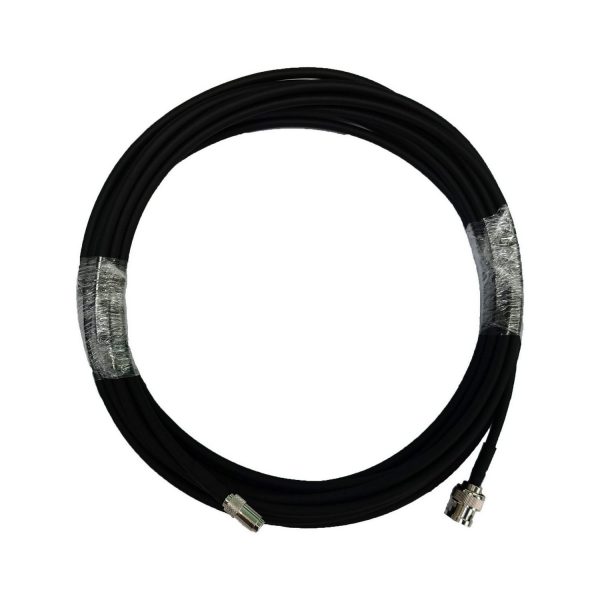

HIKROBOT Data Cable, COAXPRESS, DIN to BNC, single core, 5m, Flexible

COAXPRESS, DIN to BNC, single core, Flexible, 5m

HIKROBOT Data Cable, COAXPRESS, DIN to BNC, single core, 5m, Flexible

Hikrobot provides high-quality cable products including power line, I/O control line, data transmission line to fulfill diverse application needs.
The cables’ length covers 0.5 m – 80 m to meet requirements in different scenarios. Even at the maximum length, the data transmission maintains high stability. Some cables also have motion performance, support the application scenes of moving drag chains.

Product Downloads:

Data Sheet

Compare
  • The CXP-6 High Flex Data Cable can be used for data transmission of CoaxPress interface cameras, and is available in a variety of lengths.

ModelProduct ModelMV-ACXP6-DIN-BNC-HF-5m
TypeHigh-flex CXP-6 cable(Din-BNC), 5m

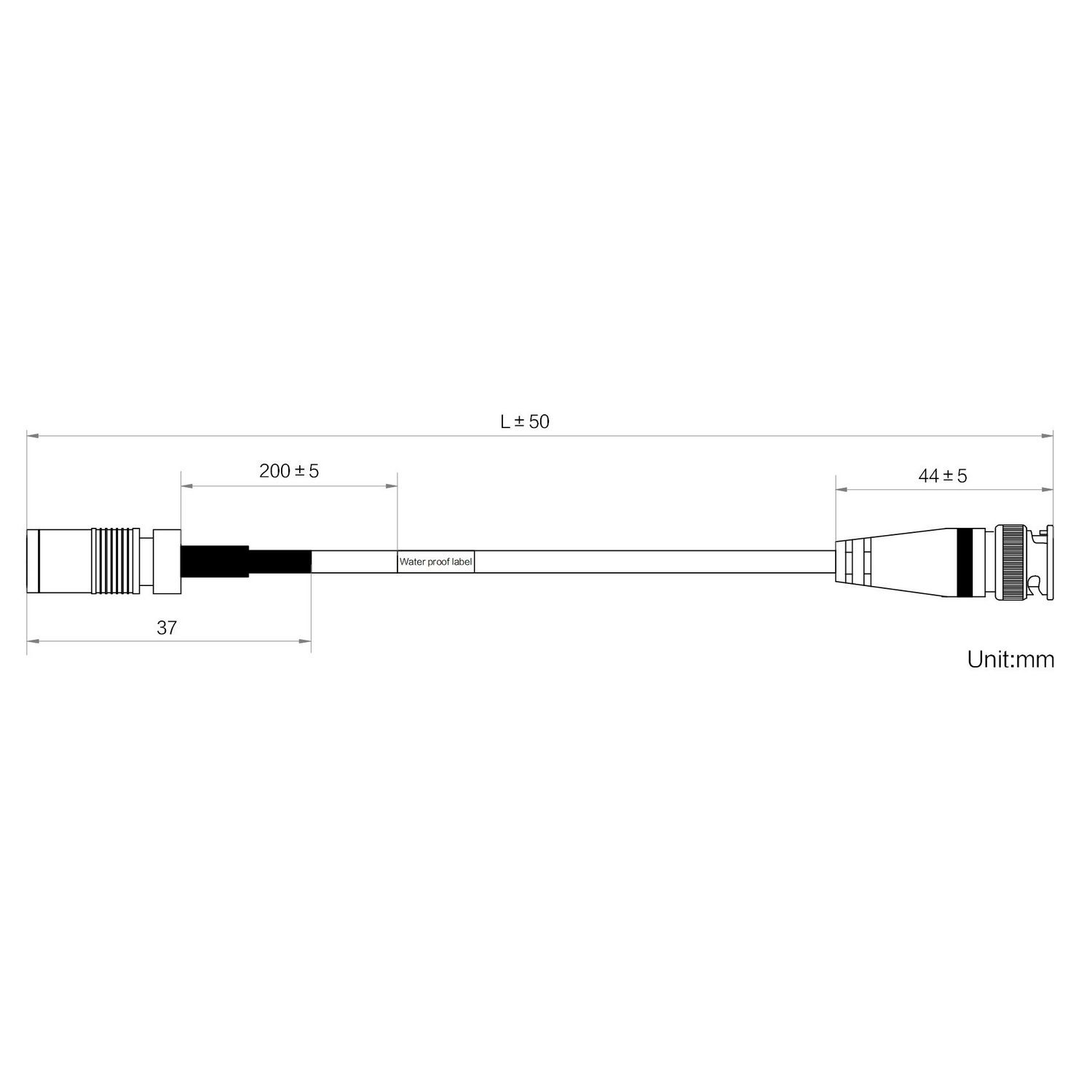

Physical specificationEnd A connectorDIN 1.0/2.3
End B connectorBNC
Cable diameter5 mm
Length5 m
Cable mechanicalCoaxial
JacketPVC
Cable colorBlack
Connector durability500 cycles
Min. bending radius60 mm
Applicable scenarioTank chain
Max. U-type bending cycles2 million times
Electrical specificationMax. voltage300 VDC
Additional informationWorking temperature-30°C-80°C
CertificationRoHS,UL
PackagingIndividual package
