- The CXP-6 High Flex Data Cable can be used for data transmission of CoaxPress interface cameras, and is available in a variety of lengths.
MV-ACXP6-DIN-HDBNC-HF-10m

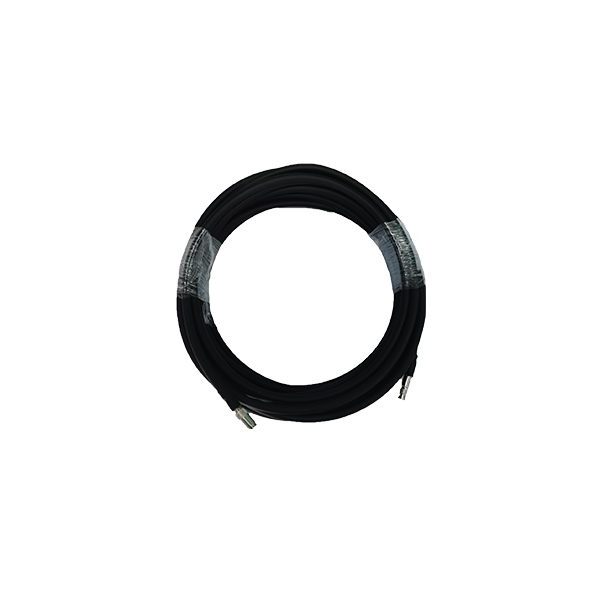

HIKROBOT Data Cable, COAXPRESS, DIN to HD-BNC, single core, 10m, Flexible
HIKROBOT Data Cable, COAXPRESS, DIN to HD-BNC, single core, 10m, Flexible
Hikrobot provides high-quality cable products including power line, I/O control line, data transmission line to fulfill diverse application needs.
The cables’ length covers 0.5 m – 80 m to meet requirements in different scenarios. Even at the maximum length, the data transmission maintains high stability. Some cables also have motion performance, support the application scenes of moving drag chains.
Product Downloads:
| Model | Product Model | MV-ACXP6-DIN-HDBNC-HF-10m |
| Type | High-flex CXP-6 cable(Din-HDBNC), 10m | |
| Physical specification | End A connector | DIN 1.0/2.3 |
| End B connector | HD-BNC | |
| Cable diameter | 5 mm | |
| Length | 10 m | |
| Cable mechanical | Coaxial | |
| Jacket | PVC | |
| Cable color | Black | |
| Connector durability | 500 cycles | |
| Min. bending radius | 60 mm | |
| Applicable scenario | Tank chain | |
| Max. U-type bending cycles | 2 million times | |
| Electrical specification | Max. voltage | 300 VDC |
| Additional information | Working temperature | -30°C-80°C |
| Certification | RoHS、UL | |
| Packaging | Individual package |
