- Resolution of 2592 × 2160, pixel size of 2.5 µm × 2.5 µm.
- Adopts global shutter CMOS sensor to provide high dynamic range, SNR, and high-quality image.
- Supports LSC correction, super palette, CCM, and SuperBayer.
- Adopts CXP-6 interface to transmit data.
- Supports Off, Once, and Continuous exposure modes.
- Compatible with CoaXPress Protocol and GenlCam Standard.
MV-CH050-90XM-C-NN
HIKROBOT Area Scan Camera CH Series
HIKROBOT Area Scan Camera CH Series
High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress.
Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage.
Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.
Product Downloads:
| Model | Product Model | MV-CH050-90XM-C-NN |
| Type | 5MP Area Scan Camera, GMAX2505, CXP-6, Mono, C-mount, without fan | |
| Performance | Sensor type | CMOS, global shutter |
| Sensor model | GMAX2505 | |
| Pixel size | 2.5 µm × 2.5 µm | |
| Sensor size | 1/2″ | |
| Resolution | 2592 × 2160 | |
| Max. frame rate | 213 fps @ 2592 × 2160 Mono 8 | |
| Dynamic range | 63.8 dB | |
| SNR | 37 dB | |
| Gain | 1.0 ×, 1.25 ×, 1.5 ×, 1.75 ×, 2.0 × | |
| Exposure time | 5 μs to 10 sec | |
| Exposure mode | Off/Once/Continuous exposure mode | |
| Mono/color | Mono | |
| Pixel format | Mono 8/12 | |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | CoaXPress |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. | |
| Power supply | 9 VDC to 24 VDC, CXP-1 supports PoCXP | |
| Power consumption | Typ. 5.3 W @ 12 VDC | |
| Mechanical | Lens mount | C-mount, flange focal length 17.52 mm |

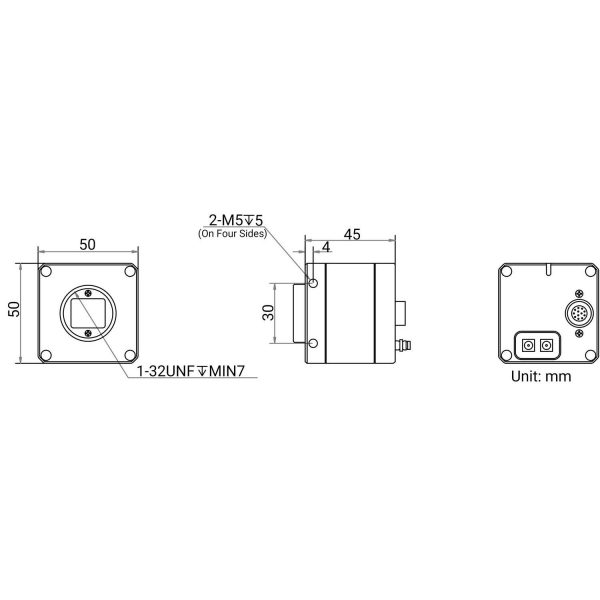

| Dimension | 50 mm × 50 mm × 45 mm (2.0″ × 2.0″ × 1.8″) | |
| Weight | Approx. 220 g (0.5 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) | |
| Humidity | 20% RH to 95% RH, no condensation | |
| General | Client software | MVS or frame grabber software meeting with CoaXPress Protocol |
| Operating system | 32/64-bit Windows XP/7/10/11, 32/64-bit Linux | |
| Compatibility | CoaXPress, GenlCam | |
| Certification | CE, RoHS, KC |
