- Resolution of 4096 × 3000, and pixel size of 3.45 μm × 3.45 μm.
- Supports auto or manual adjustment for gain, exposure time, Gamma correction, LUT, etc.
- Adopts 10 GigE interface, compatible with GigE, and max. transmission distance of 100 meters.
- Compact design with mounting holes on panels for flexible mounting.
- Compatible with GigE Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

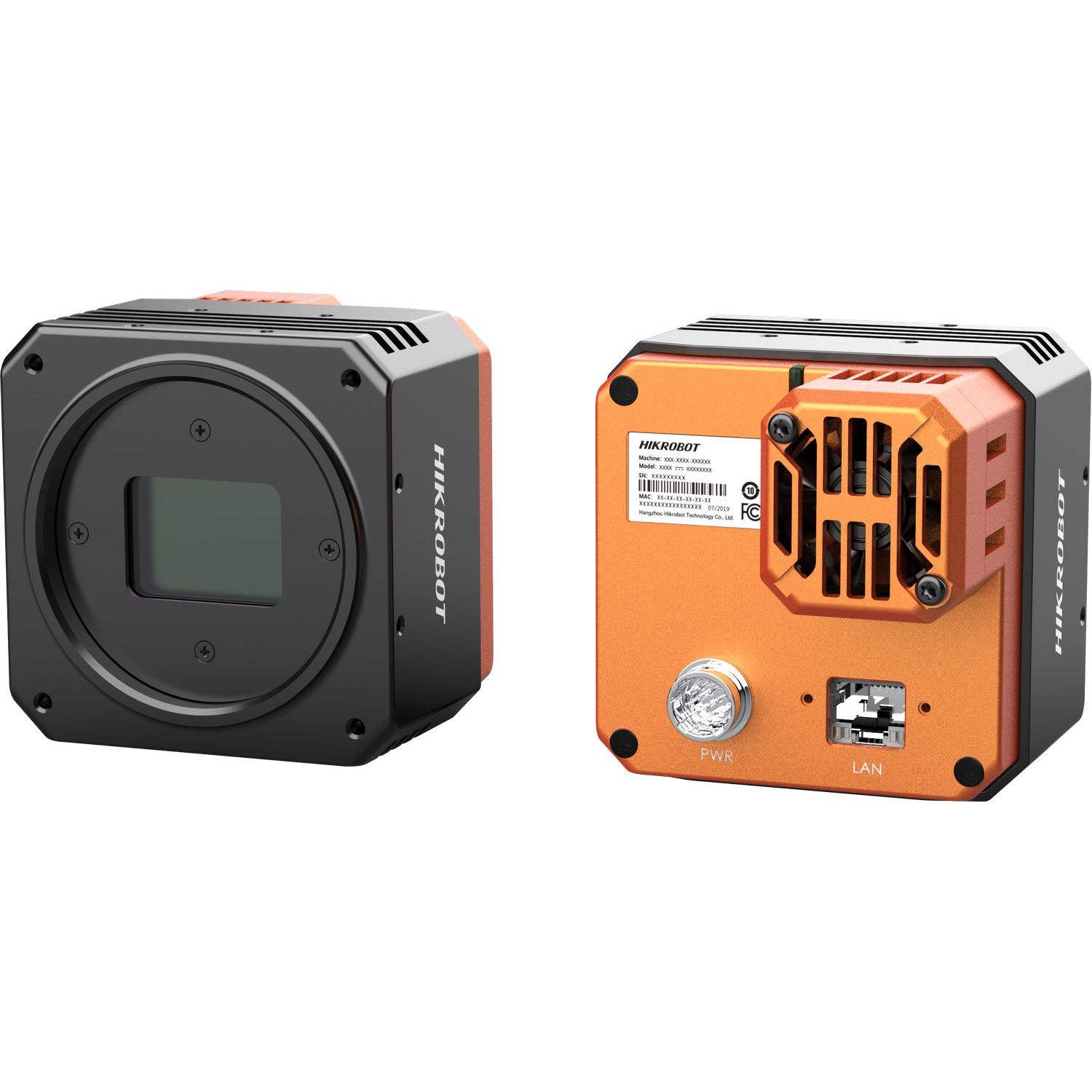

MV-CH120-15TC-M58S-NF
HIKROBOT Area Scan Camera CH Series
HIKROBOT Area Scan Camera CH Series
High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress.
Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage.
Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.
Product Downloads:
| Model | Product Model | MV-CH120-15TC-M58S-NF |
| Type | 12MP Area Scan Camera, 10GigE, IMX253, Color, M58-mount | |
| Performance | Sensor type | CMOS, global shutter |
| Sensor model | IMX253 | |
| Pixel size | 3.45 μm × 3.45 μm | |
| Sensor size | 1.1″ | |
| Resolution | 4096 × 3000 | |
| Max. frame rate | 68.3 fps @4096 × 3000 | |
| Dynamic range | 71.6 dB | |
| SNR | 39.7 dB | |
| Gain | 0 dB to 18 dB | |
| Exposure time | UltraShort exposure mode: 2 μs to 14 μsStandard exposure mode: 15 μs to 10 sec | |
| Exposure mode | Off/Once/Continuous exposure mode | |
| Mono/color | Color | |
| Pixel format | Mono 8, Bayer RG 8, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 | |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | 10GigE |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1 | |
| Power supply | 9 VDC to 24 VDC | |
| Power consumption | Typ. 10.1 W@24 VDC | |
| Mechanical | Lens mount | M58-mount, optical back focal length: 11.48 mm (0.5″) |

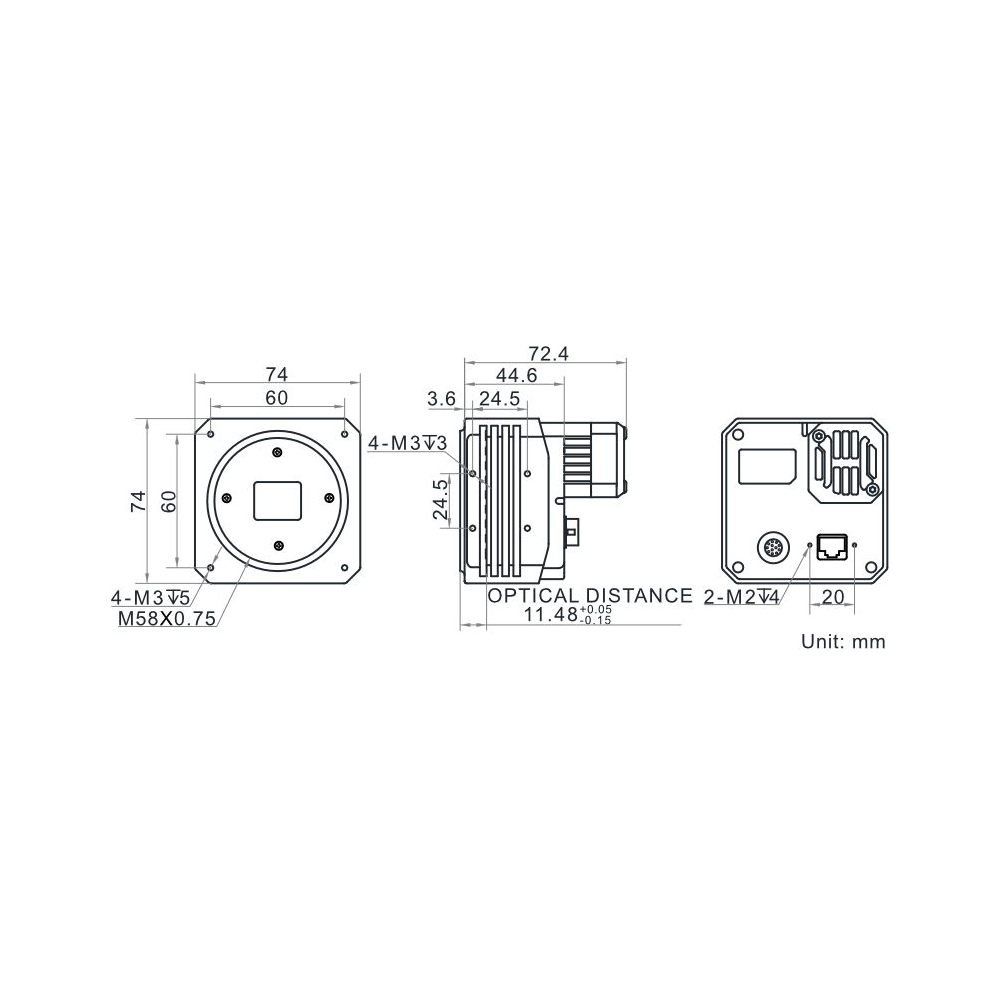

| Dimension | 74 mm × 74 mm × 72.4 mm (2.9″ × 2.9″ × 2.9″) | |
| Weight | Approx. 550 g (1.2 lb) | |
| Ingress protection | IP40 ( under proper lens installation and wiring) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10 | |
| Compatibility | GigE Vision V2.0, GenICam | |
| Certification | CE, RoHS, KC |
