- Resolution of 5120 × 5120 and pixel size of 4.5 μm × 4.5 μm.
- Adopts GigE interface providing max. transmission distance of 100 meters without relay.
- Adopts local memory for burst transmission and retransmission.
- Compact design with mounting holes on the up and bottom panels for flexible mounting.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.
MV-CH250-21GM-F-NF
HIKROBOT Area Scan Camera CH Series
HIKROBOT Area Scan Camera CH Series
High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress.
Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage.
Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.
Product Downloads:
| Model | Product Model | MV-CH250-21GM-F-NF |
| Type | 25MP Area Scan Camera, GigE,PYTHON25K,Mono，F-mount,with fan | |
| Performance | Sensor type | CMOS, global shutter |
| Sensor model | PYTHON25K | |
| Pixel size | 4.5 µm × 4.5 µm | |
| Sensor size | 23 mm × 23 mm | |
| Resolution | 5120 × 5120 | |
| Max. frame rate | 4.64 fps @5120 × 5120 | |
| Dynamic range | 58 dB | |
| SNR | 41 dB | |
| Gain | 0 dB to 15 dB | |
| Exposure time | 80 μs to 10 sec | |
| Exposure mode | Off/Once/Continuous exposure mode | |
| Mono/color | Mono | |
| Pixel format | Mono 8/10/10p/12/12p | |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 | |
| Decimation | Supports 1 × 1, 2 × 2 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | GigE |
| Digital I/O | 12-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1, and RS-485 × 1 | |
| Power supply | 12 VDC | |
| Power consumption | Typ. 6.7 W@12 VDC | |
| Mechanical | Lens mount | F-mount, optical back focal length 46.5 mm (1.8″) |

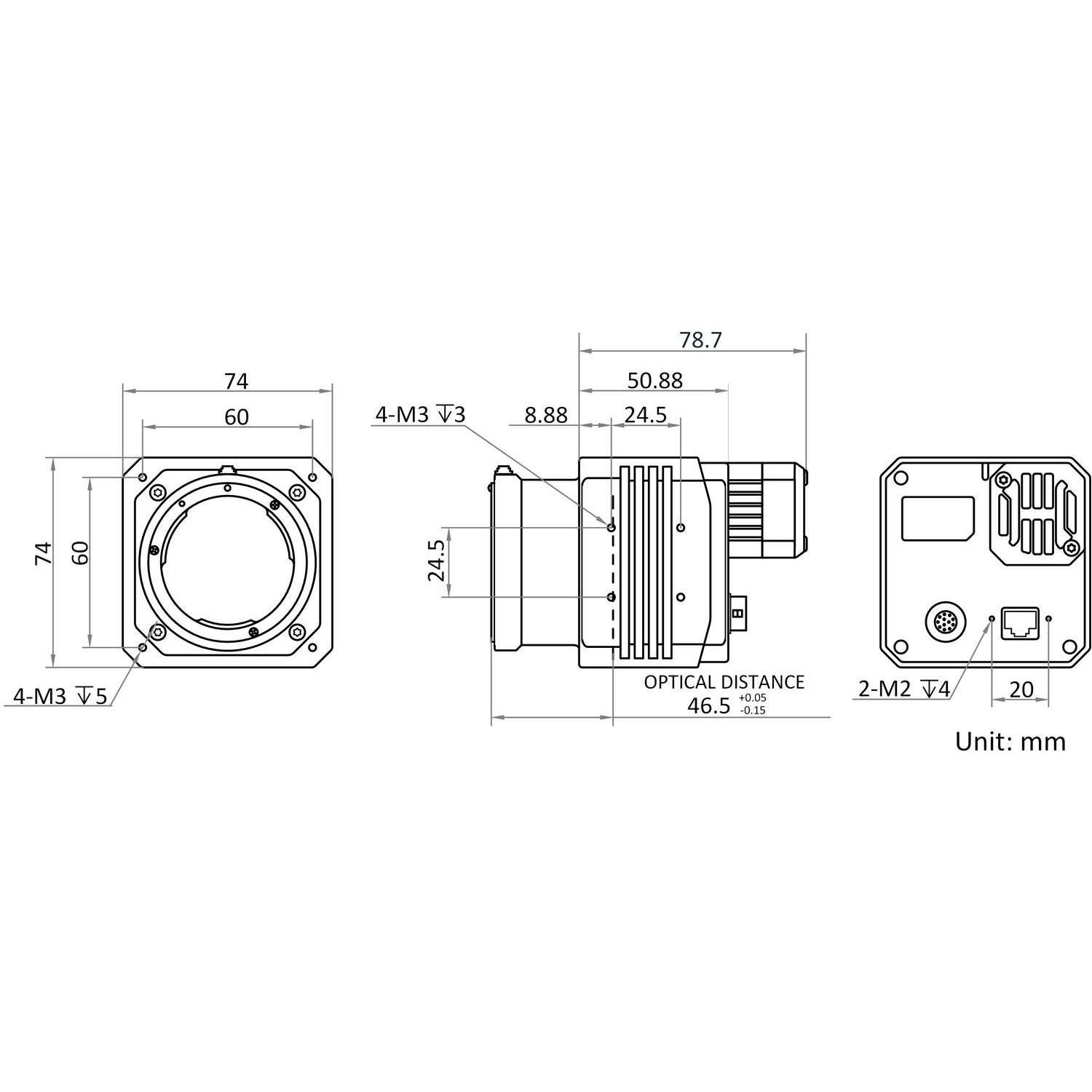

| Dimension | F-mount with fan: 74 mm × 74 mm × 78.7 mm (2.9″ × 2.9″ × 3.1″) | |
| Weight | F-mount with fan: < 600 g (1.3 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS | |
| Compatibility | GigE Vision V2.0, GenlCam | |
| Certification | CE, RoHS, KC |
