- Resolution of 5120 × 5120, and pixel size of 4.5 μm × 4.5 μm.
- Supports auto or manual adjustment of exposure time, and manual adjustment of gain, Gamma correction, LUT, etc.
- Adopts 10 GigE interface, compatible with GigE, and max. transmission distance of 100 meters.
- Compact design with mounting holes on panels for flexible mounting.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

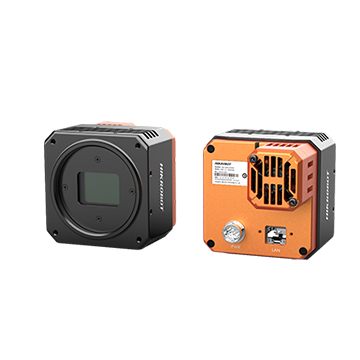

MV-CH250-60TM-M58S-NF
HIKROBOT Area Scan Camera CH Series
HIKROBOT Area Scan Camera CH Series
High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress.
Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage.
Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.
Product Downloads:
| Model | Product Model | MV-CH250-60TM-M58S-NF |
| Type | 25MP Area Scan Camera, 10GigE | |
| Performance | Sensor type | CMOS, global shutter |
| Pixel size | 4.5 μm × 4.5 μm | |
| Sensor size | 23 mm × 23 mm | |
| Resolution | 5120 × 5120 | |
| Max. frame rate | 31.7 fps @5120 × 5120 Mono 8 | |
| Dynamic range | 66 dB | |
| SNR | 40 dB | |
| Gain | 0 dB to 15.6 dB | |
| Exposure time | 15 μs to 10 sec | |
| Exposure mode | Off/Once/Continuous exposure mode | |
| Mono/color | Mono | |
| Pixel format | Mono 8/10/10Packed/12/12Packed | |
| Binning | Not support | |
| Decimation | Not support | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | 10GigE |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1 | |
| Power supply | 12 VDC to 24 VDC | |
| Power consumption | Typ. 15.1 W@12 VDC | |

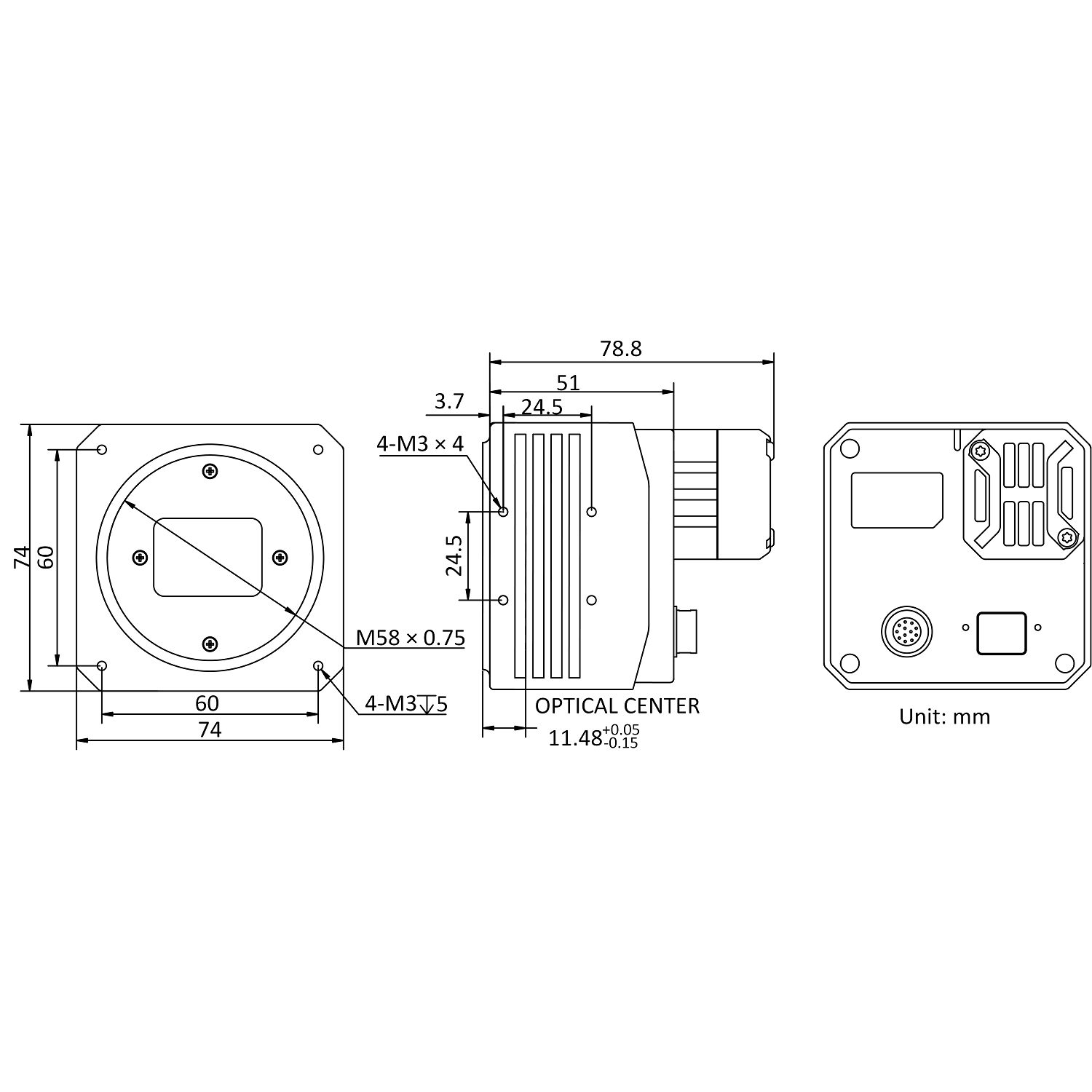

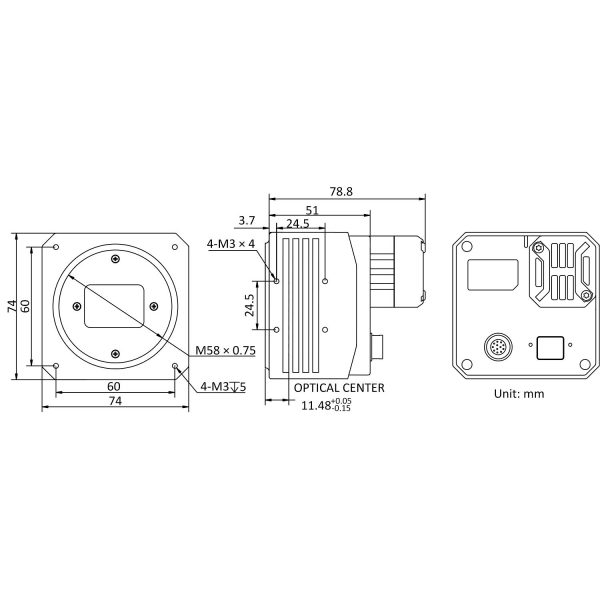

| Mechanical | Lens mount | M58-mount, flange back focal length: 11.48 mm (0.5″) |
| Dimension | 74 mm × 74 mm × 78.8 mm (2.9″ × 2.9″ × 3.1″) | |
| Weight | Approx. 550 g (1.2 lb) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10 | |
| Compatibility | GigE Vision V2.0, GenlCam | |
| Certification | CE, RoHS, KC |
