- Resolution of 5120 × 5120, pixel size of 2.5 μm × 2.5 μm.
- Adopts 10 GigE interface providing maximum transmission distance of 100 meters.
- Supports adjustment for exposure time, gain, Look-Up Table (LUT), Gamma correction, etc.
- Mounting holes on panels for flexible installation.
- Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocols.
MV-CH250-90TC-M58S-NF
HIKROBOT Area Scan Camera CH Series
HIKROBOT Area Scan Camera CH Series
High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress.
Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage.
Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.
Product Downloads:
| Model | Product Model | MV-CH250-90TC-M58S-NF |
| Type | 25MP Area Scan Camera, 10GigE, GMAX0505, Color, M58-mount, with fan | |
| Performance | Sensor type | CMOS, global shutter |
| Sensor model | GMAX0505 | |
| Pixel size | 2.5 µm × 2.5 µm | |
| Sensor size | 1.1″ | |
| Resolution | 5120 × 5120 | |
| Max. frame rate | 41.6 fps @5120 × 5120 Bayer BG 8 | |
| Dynamic range | 63 dB | |
| SNR | 36 dB | |
| Gain | 2.0 × to 5.0 × | |
| Exposure time | UltraShort exposure mode: 3 μs to 8 μsStandard exposure mode: 9 μs to 10 sec | |
| Exposure mode | Off/Once/Continuous exposure mode | |
| Mono/color | Color | |
| Pixel format | Mono 8/10/12,Bayer BG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_PackedRGB 8, BGR 8 | |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | 10GigE |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1 | |
| Power supply | 9 VDC to 24 VDC | |
| Power consumption | Typ. 10.0 W@12 VDC | |
| Mechanical | Lens mount | Flange focal length 11.48 mm (0.5″) |

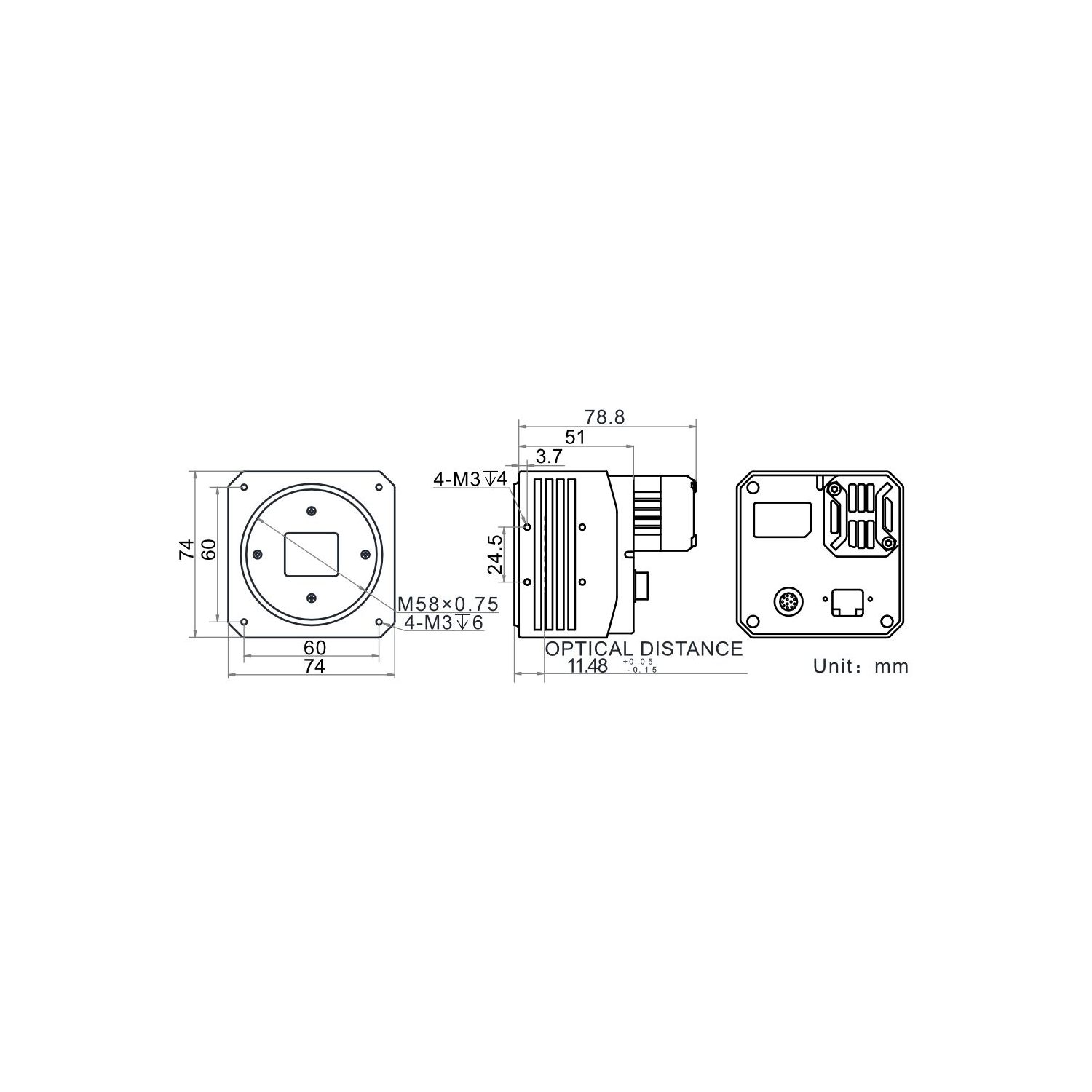

| Dimension | 74 mm × 74 mm × 78.8 mm (2.9″ × 2.9″ × 3.1″) | |
| Weight | Approx. 550 g (1.2 lb.) | |
| Ingress protection | IP40 ( under proper lens installation and wiring) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 64-bit Windows 11 | |
| Compatibility | GigE Vision V2.0, GenlCam | |
| Certification | CE, RoHS, KC |
