- Resolution of 5120 × 5120, pixel size of 2.5 µm × 2.5 µm.
- Supports LSC correction, binning, image reverse, etc.
- Supports hardware trigger, software trigger, and free run.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
MV-CH250-90UC
HIKROBOT Area Scan Camera CH Series
HIKROBOT Area Scan Camera CH Series
High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress.
Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage.
Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.
Product Downloads:
| Model | Product Model | MV-CH250-90UC |
| Type | 25MP Area Scan Camera, USB3，GMAX0505，Color | |
| Performance | Gain | Supports 2.0 ×, 2.5 ×, 3.0 ×, 3.5 ×, 4.0 ×, 4.5 ×, 5.0 × |
| Exposure mode | Off/Once/Continuous exposure mode | |
| Dynamic range | 65 dB | |
| Pixel size | 2.5 µm × 2.5 µm | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Resolution | 5120 × 5120 | |
| Sensor type | CMOS, global shutter | |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 | |
| Exposure time | 12 μs to 10 sec | |
| Mono/color | Color | |
| SNR | 36 dB | |
| Sensor size | 1.1″ | |
| Max. frame rate | 14.3 fps @5120 × 5120 | |
| Sensor model | GMAX0505 | |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 | |
| Image buffer | USB3.0, compatible with USB2.0 | |
| Pixel format | Mono 8/10/12, Bayer BG 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 | |
| Electrical feature | Power supply | 9 VDC to 24 VDC, supports USB3.0 power supply |
| Data interface | USB3.0 | |
| Power consumption | Typ. 4.0 W@5 VDC(USB3.0 provides power supply) | |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). | |
| Mechanical | Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Lens mount | C-mount | |
| Weight | Approx. 100 g (0.2 lb.) | |
| Humidity | 20% to 95% RH, non-condensing | |
| Ingress protection | IP30 (under proper lens installation and wiring) | |

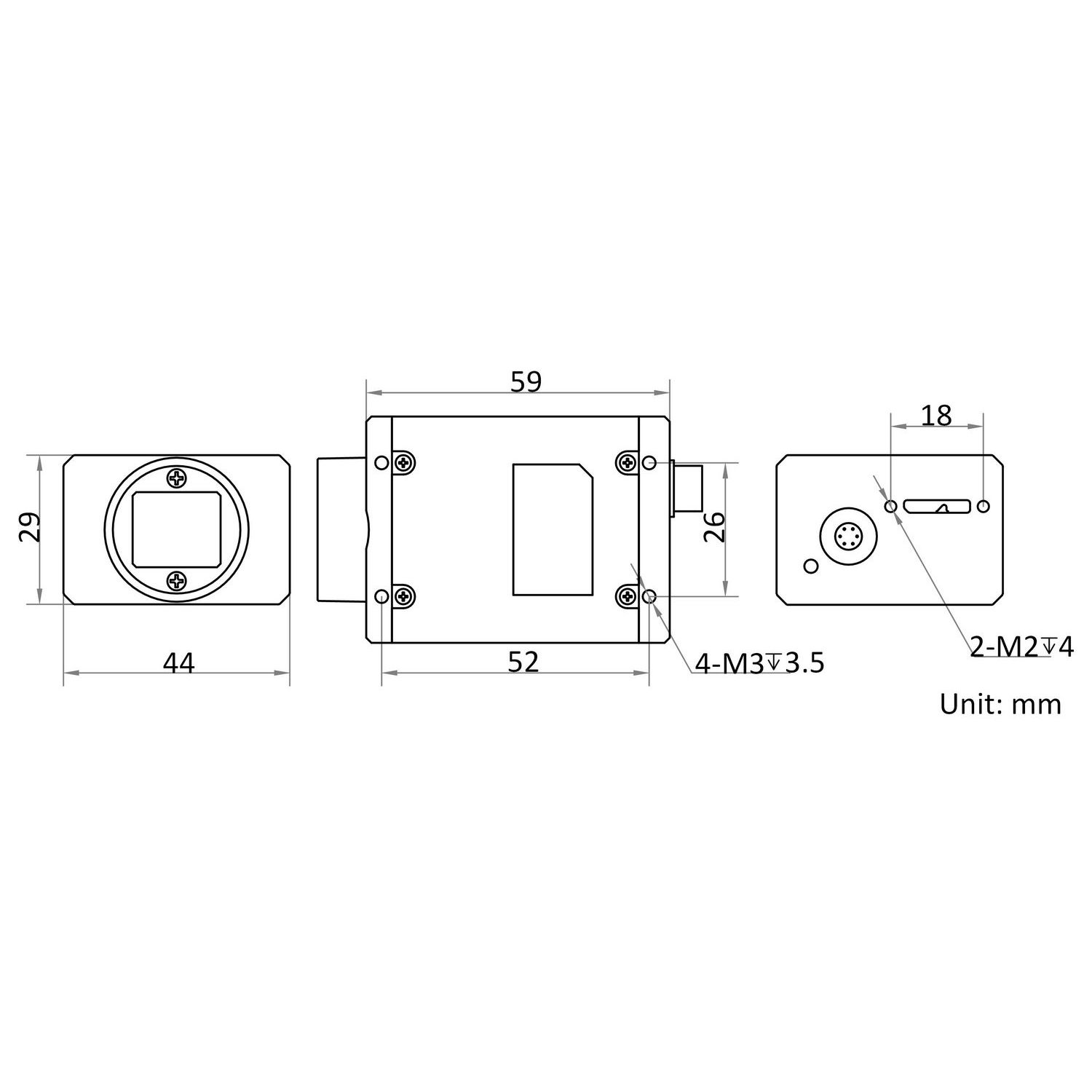

| Dimension | 29 mm × 44 mm × 59 mm (1.1″ × 1.7″ × 2.3″) | |
| General | Certification | CE, FCC, RoHS, KC |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS | |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol | |
| Compatibility | USB3 Vision, GenICam |
