- Resolution of 28416 × 21280, pixel size of 3.76 µm × 3.76 µm.
- Supports 151 MP or 604 MP resolution mode.
- Adopts ISP algorithm to improve image quality.
- Supports FFC correction and 16-bit ADC output.
- Adopts CXP-6 interface to transmit data.
- Compatible with CoaXPress Protocol and GenlCam Standard, and third-party software based on the protocol and standard.

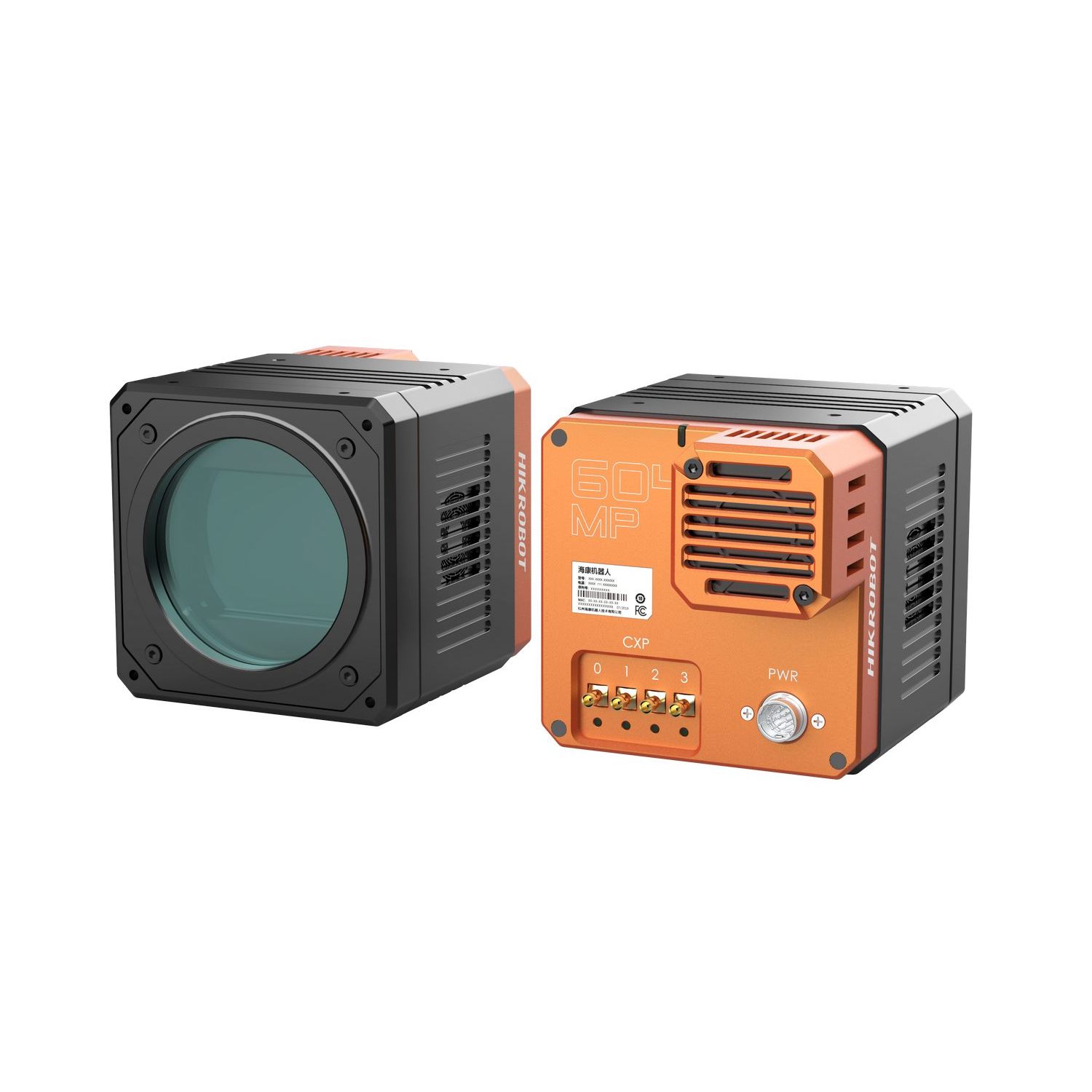

MV-CH6040-10XM-M72-NF
HIKROBOT Area Scan Camera CH Series
HIKROBOT Area Scan Camera CH Series
High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress.
Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage.
Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.
Product Downloads:
| Model | Product Model | MV-CH6040-10XM-M72-NF |
| Type | 604MP Area Scan Camera, CXP-6 | |
| Performance | Sensor type | CMOS, rolling shutter |
| Sensor model | IMX411 | |
| Pixel size | 3.76 µm × 3.76 µm | |
| Sensor size | 66.7 mm | |
| Resolution | 28416 × 21280 | |
| Max. frame rate | 1.45 fps @28416 × 21280 | |
| Dynamic range | 78.7 dB | |
| SNR | 46.4 dB | |
| Gain | 0 dB to 40 dB | |
| Exposure time | 15 μs to 1 sec (604 MP) | |
| Exposure mode | Off/Once/Continuous exposure mode, supports Rolling and Global Reset | |
| Mono/color | Mono | |
| Pixel format | Mono 8/10/12/16 | |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
| Decimation | Not support | |
| Reverse image | Supports horizontal reverse image output | |
| Electrical feature | Data interface | CoaXPress |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. | |
| Power supply | 24 VDC | |
| Power consumption | Typ. 15 W@24 VDC | |
| Mechanical | Lens mount | M72-mount, optical back focal length 19.55 mm (0.8″) |

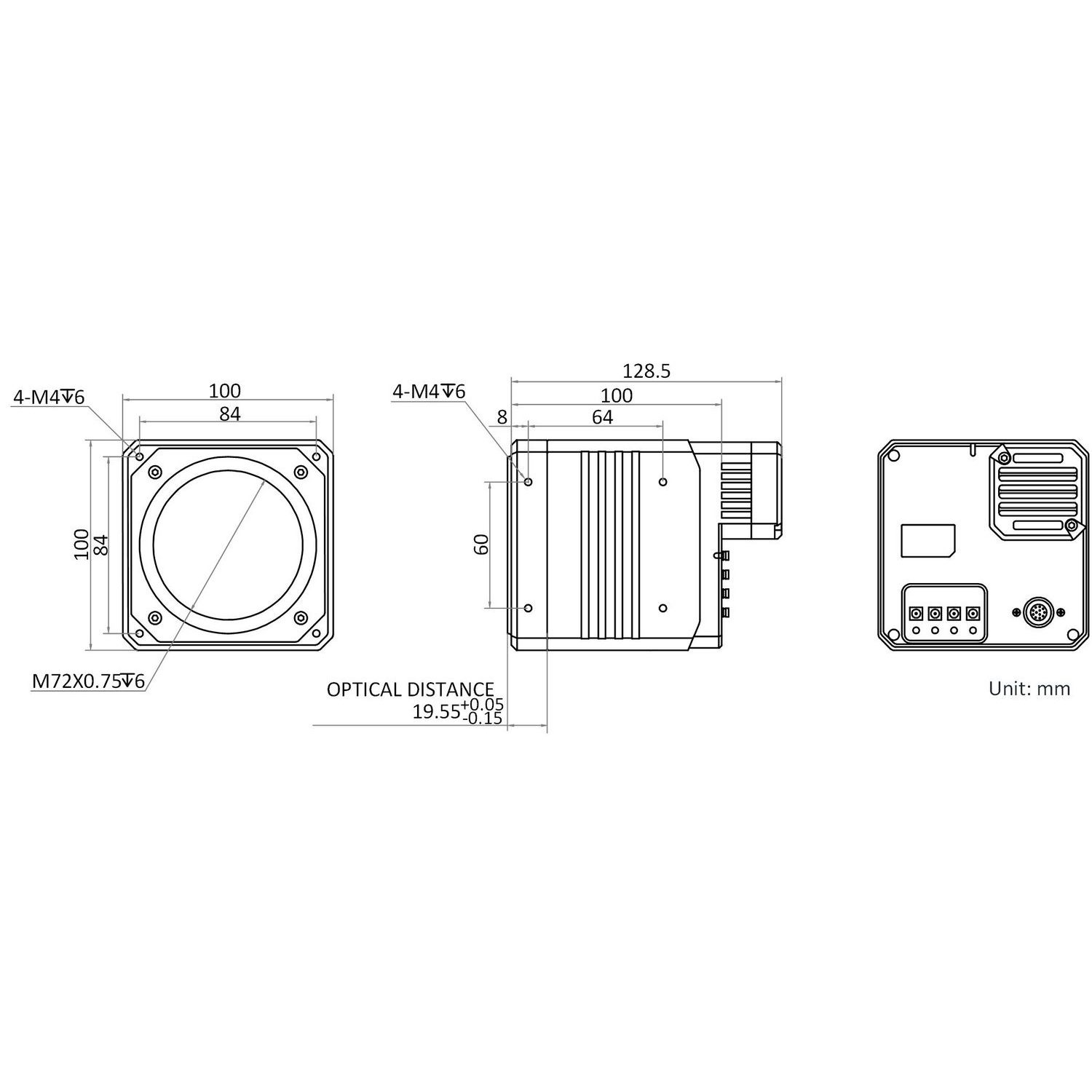

| Dimension | 100 mm × 100 mm × 128.5 mm (3.9″ × 3.9″ × 5.1″) | |
| Weight | Approx. 1.4 kg (3.1 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Performance temperature: 20 °C to 35 °C (68 °F to 95 °F)Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | MVS or frame grabber software meeting with CoaXPress Protocol |
| Operating system | 64-bit Windows 7/10 with 16 GB memory or above | |
| Compatibility | CoaXPress, GenlCam | |
| Certification | CE, RoHS, KC |
