- Resolution of 9344 × 7000, and pixel size of 3.2 µm × 3.2 µm.
- Adopts global shutter CMOS to provide high dynamic range, SNR, and high-quality image.
- Adopts CXP-6 interface to transmit data.
- Supports Off, Once, and Continuous exposure mode.
- Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
MV-CH650-90XM-F-NF
HIKROBOT Area Scan Camera CH Series
HIKROBOT Area Scan Camera CH Series
High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress.
Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage.
Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.
Product Downloads:
| Model | Product Model | MV-CH650-90XM-F-NF |
| Type | 65MP Area Scan Camera, CXP-6, GMAX3265, Mono, F-mount, with fan | |
| Performance | Sensor type | CMOS, global shutter |
| Sensor model | GMAX3265 | |
| Pixel size | 3.2 µm × 3.2 µm | |
| Sensor size | 29.9 mm × 22.4 mm | |
| Resolution | 9344 × 7000 | |
| Max. frame rate | 31.5 fps @9344 × 7000 | |
| Dynamic range | 66 dB | |
| SNR | 40 dB | |
| Gain | 1.25x to 6x | |
| Exposure time | 14 μs to 10 sec | |
| Exposure mode | Off/Once/Continuous exposure mode | |
| Mono/color | Mono | |
| Pixel format | Mono 8/10/12 | |
| Binning | Supports 1 ×1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
| Decimation | Supports 1 ×1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | CoaXPress |
| Digital I/O | 12-pin P10 connector provides I/O: opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. | |
| Power supply | 24 VDC | |
| Power consumption | Typ. 10.5 W@24 VDC | |
| Mechanical | Lens mount | F-mount: optical back focal length: 46.5 mm (1.8″) |

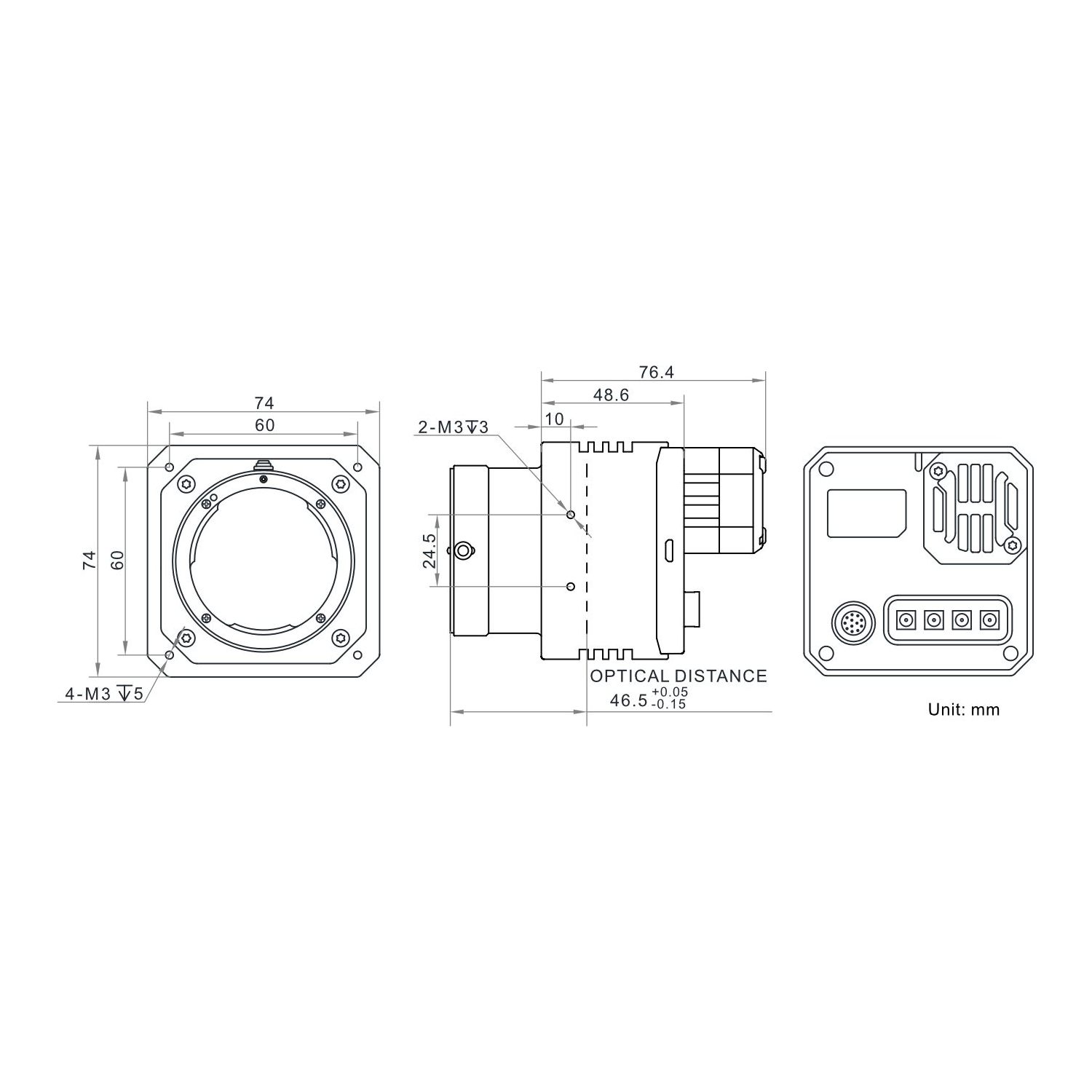

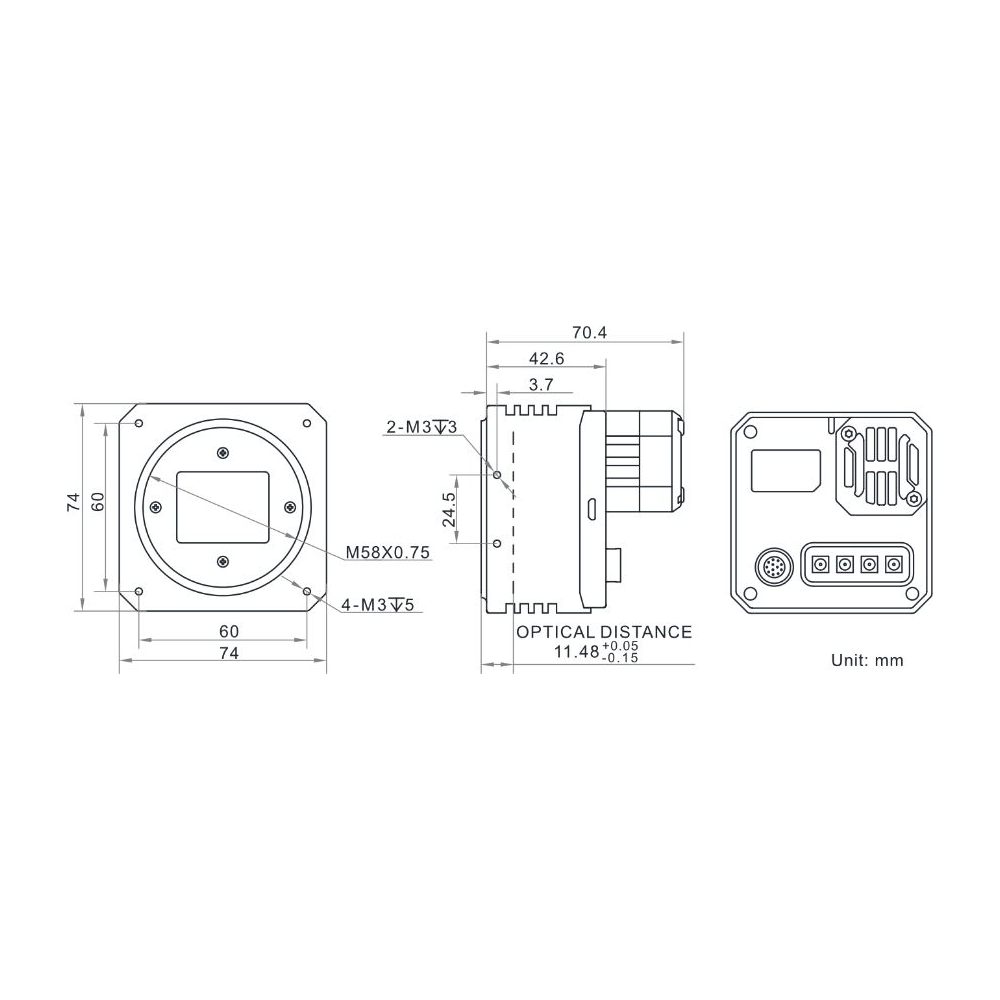

| Dimension | F-mount with fan: 74 mm × 74 mm × 76.4 mm (2.9″ × 2.9″ × 3.0″) | |
| Weight | F-mount with fan: approx. 500 g (1.1 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | Frame grabber software meeting with CoaXPress Protocol |
| Operating system | 32/64-bit Windows 7/10 with 8 GB memory or above | |
| Compatibility | CoaXPress, GenlCam | |
| Certification | CE, RoHS, KC |
