- Adopts InGaAs sensor and supports spectral imaging of 0.4 μm to 1.7 μm.
- Multiple ISP functions like digital noise reduction, contrast ratio, etc.
- Adopts compact structure and design to meet spatial requirements.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
MV-CI013-GS-NN
HIKROBOT Infrared Camera CI Series
HIKROBOT Infrared Camera CI Series
It adopts high-sensitivity Vanadium Oxide uncooled detector with a response band of 8-14μm, can visualize temperature information and measure the temperature characteristics of objects. Can meet the new application needs in New Energy, Auto Parts, Electronic Semiconductors and other industries.
Support multiple trigger modes and event outputs, can be flexibly applied to various scenarios.
Compatible with GigE Vision standard, supports GenICam protocol: can achieve 100m repeaterless transmission, adopt universal programming interface, compatible with third parties.
Product Downloads:
| Model | Product Model | MV-CI013-GS-NN |
| Type | 1.3MP SWIR Camera, IMX990, GigE, fanless | |
| Performance | Sensor type | InGaAs |
| Sensor model | IMX990 | |
| Pixel size | 5 μm × 5 μm | |
| Sensor size | 1/2″ | |
| Resolution | 1280 × 1024 | |
| Max. frame rate | 91 fps @1280 × 1024 Mono 8 | |
| Dynamic range | 56 dB | |
| SNR | 52.2 dB | |
| Gain | 0 dB to 18 dB | |
| Exposure time | UltraShort exposure mode: 3 μs to 7 μsStandard exposure mode: 8 μs to 0.1 sec | |
| Exposure mode | Off/Once/Continuous exposure mode | |
| Pixel format | Mono 8/10/10Packed/12/12Packed | |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 | |
| Decimation | Supports 1 × 1, 2 × 2 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | GigE |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2) | |
| Power supply | 9 VDC to 24 VDC, supports PoE | |
| Power consumption | Typ. 2.7 W@12 VDC | |
| Mechanical | Lens mount | C-mount |

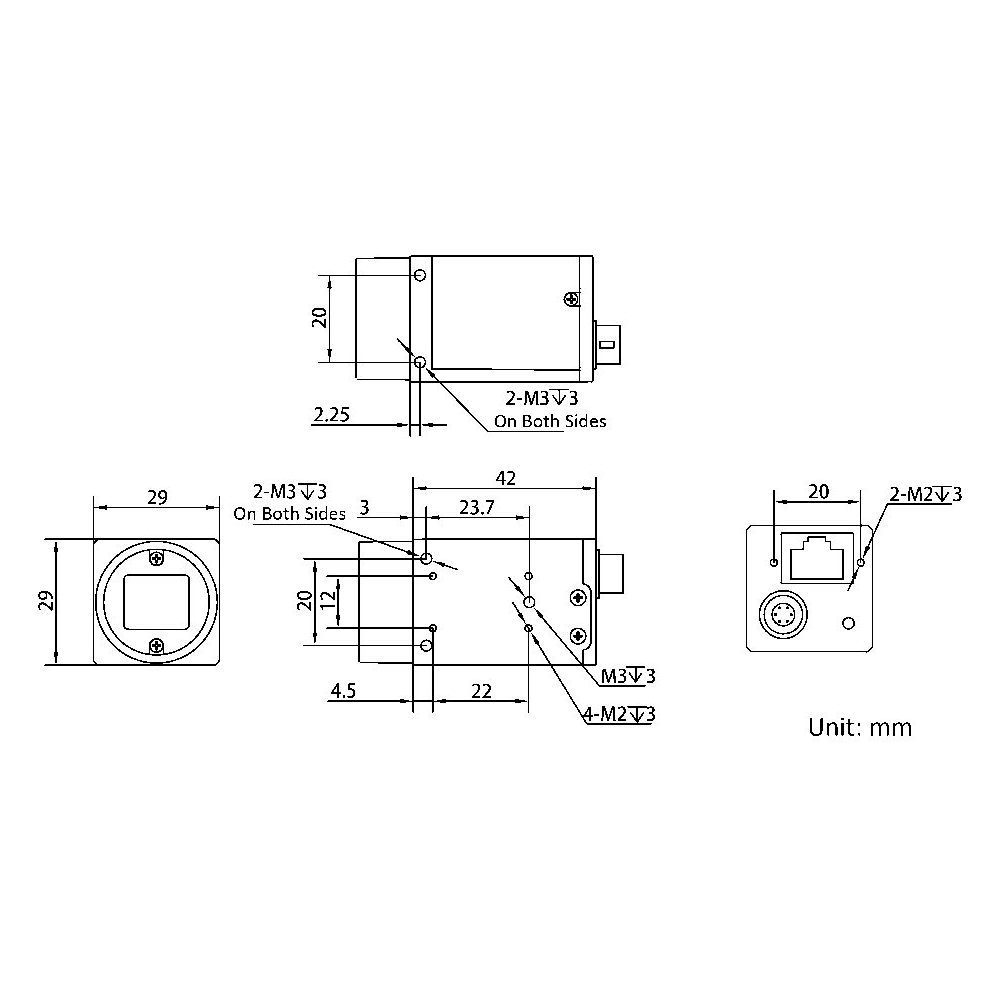

| Dimension | 29 mm × 29 mm × 42 mm (1.1″ × 1.1″ × 1.2″) | |
| Weight | Approx. 100 g (0.22 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: -30 °C to 50 °C (-22 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 64-bit Windows 11, 32/64-bit Linux and 64-bit MacOS | |
| Compatibility | GigE Vision V2.0, GenICam | |
| Certification | CE, RoHS, KC |
