- Adopts multiple ISP like Gamma, flat field correction, LUT, black level offset, etc.
- Provides 20G fiber port to transmit data with max. line rate of 66.6 kHz.
- Supports RGB true color, multiple exposure and acquisition methods.
- Adopts bi-directional configurable I/O hardware design.
- Compact design and flexible installation.

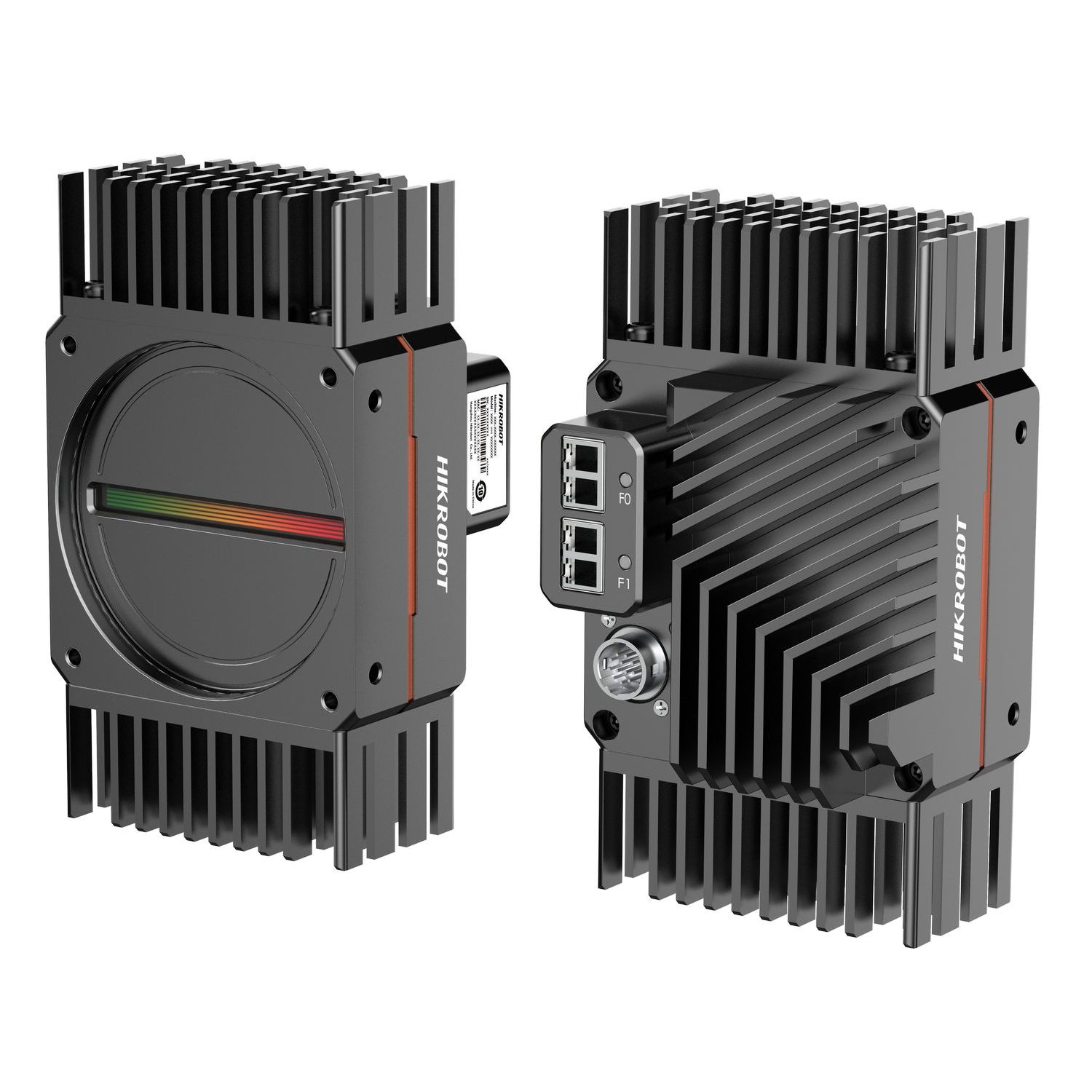

MV-CL083-91F2C
HIKROBOT Line Scan Camera CL Series
HIKROBOT Line Scan Camera CL Series
The CL series covers 2K-16K pixels and equipped with GigE/Camera Link/XoF interfaces, support a variety of ISP and algorithms that can fulfill various application needs of line scan cameras.
The CL camera supports various ISP functions: Flat field correction, Gamma, LUT, white balance, CCM, SC, etc. to help users obtain higher quality image data; Despite timed exposure, a new acquisition method of trigger-width controlled exposure is added, and with external (soft/hard) trigger signals, it can flexibly adapt to external lighting conditions and exposure control needs.
The High-Bandwidth Mode is equipped in the new GigE CL line scan camera. Breaking through the physical bandwidth of the gigabit network, the line frequency can been improved by 1.5-2 times, which provide users with a more cost-effective solution.
Product Downloads:
| Model | Product Model | MV-CL083-91F2C |
| Type | 8K7 XoF(2 SFP+) linescan camera，true-color | |
| Performance | Sensor type | CMOS |
| Pixel size | 7 μm × 7 μm | |
| Resolution | 8192 × 3 | |
| Image mode | Supports 1-line | |
| Max. line rate | 66.6 kHz @Mono 8/Mono 12/RGB 8/BGR 8 | |
| Dynamic range | 63.4 dB | |
| SNR | 40.8 dB | |
| Gain | Supports 1.0 × | |
| Exposure time | 3 μs to 10 ms | |
| Exposure mode | Off/ Once/ Continuous exposure mode, and supports trigger-width exposure | |
| Mono/color | Color | |
| Pixel format | Mono 8/12, RGB 8, BGR 8 | |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
| Reverse image | Supports horizontal reverse image output | |
| Trigger mode | External trigger, internal trigger | |
| External trigger mode | Line trigger, frame trigger, line + frame trigger | |
| Electrical feature | Data interface | 2LC fiber connector |
| Digital I/O | 12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4) and single-ended/differential is supported. | |
| Power supply | 12 VDC to 24 VDC | |
| Power consumption | Typ. 14 W@24 VDC | |
| Mechanical | Lens mount | M72 *0.75, optical back focal length: 12 mm (0.5″), applicable to F-mount via lens adapter |

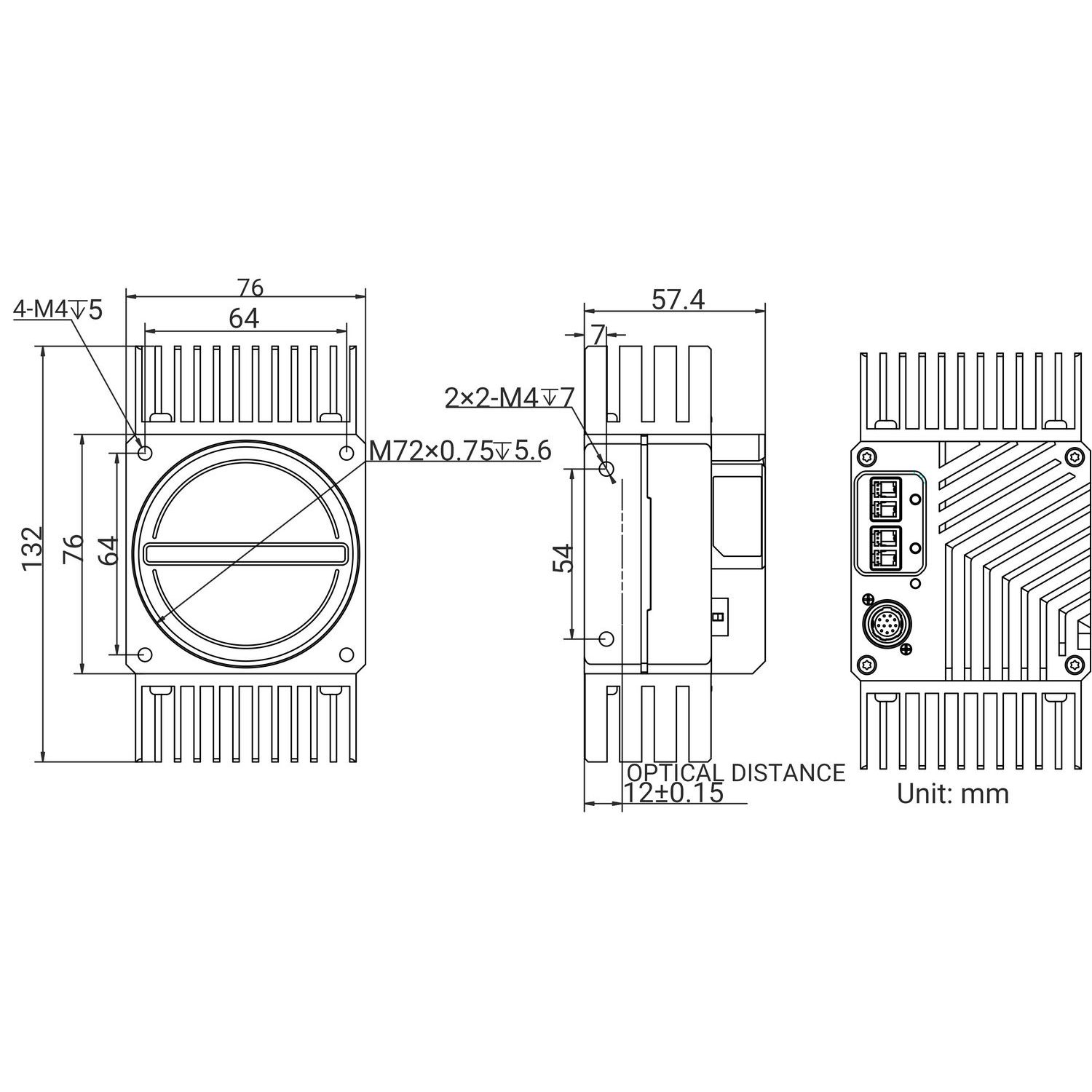

| Dimension | 132 mm × 76 mm × 57.4 mm (5.2″ × 3.0″ × 2.3″) | |
| Weight | Approx. 600 g (1.3 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: -20 °C to 50 °C (-4 °F to 122 °F); Storage temperature: -30 °C to 80 °C (-22 °F to 176 °F) | |
| Humidity | 5% to 90% RH, non-condensing | |
| General | Client software | MVS |
| Operating system | 32/64-bit Windows XP/7/10 | |
| Compatibility | Self-developed protocol, GenlCam | |
| Certification | CE, RoHS, KC |
