- Supports high bandwidth image compression mode, trigger-width exposure, RGB true color imaging, etc.
- Rich ISP image algorithms and supports manual adjustment for Gamma correction, flat field correction, LUT, black level, etc.
- Adopts bi-directional I/O hardware design.
- Compact design and flexible installation.
- Compatible with GigE Vision V2.0, GenlCam standard.
MV-CL083-92GC
HIKROBOT Line Scan Camera CL Series
HIKROBOT Line Scan Camera CL Series
The CL series covers 2K-16K pixels and equipped with GigE/Camera Link/XoF interfaces, support a variety of ISP and algorithms that can fulfill various application needs of line scan cameras.
The CL camera supports various ISP functions: Flat field correction, Gamma, LUT, white balance, CCM, SC, etc. to help users obtain higher quality image data; Despite timed exposure, a new acquisition method of trigger-width controlled exposure is added, and with external (soft/hard) trigger signals, it can flexibly adapt to external lighting conditions and exposure control needs.
The High-Bandwidth Mode is equipped in the new GigE CL line scan camera. Breaking through the physical bandwidth of the gigabit network, the line frequency can been improved by 1.5-2 times, which provide users with a more cost-effective solution.
Product Downloads:
| Model | Product Model | MV-CL083-92GC |
| Type | 8K 7μm GigE line scan camera，Gpixel，Color | |
| Performance | Sensor type | CMOS |
| Pixel size | 7 μm × 7 μm | |
| Resolution | 8192 × 3 | |
| Image mode | Supports 1-line | |
| Max. line rate | Standard mode: 14.1 kHz @Bayer·RG·8/Mono·8, 7.7 kHz @Bayer·RG·10, 4.7 kHz @RGB·8/BGR·8High-bandwidth mode: 33 kHz @Bayer·RG·/Mono 8, 23.2 kHz @Bayer·RG·10, 12.5 kHz @RGB·8/BGR·8 | |
| Dynamic range | 63.4 dB | |
| SNR | 40.8 dB | |
| Gain | 1.0 × | |
| Exposure time | 3 μs to 10 ms | |
| Exposure mode | Off/ Once/ Continuous exposure mode, and supports trigger-width exposure | |
| Mono/color | Color | |
| Pixel format | Bayer RG 8/10, RGB 8, BGR 8, Mono 8 | |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
| Reverse image | Supports horizontal reverse image output | |
| Trigger mode | External trigger, internal trigger | |
| External trigger mode | Line trigger, frame trigger, line + frame trigger | |
| Electrical feature | Data interface | GigE |
| Digital I/O | 12-pin P10 connector provides power and I/O: configurable input or output × 4 (Line 0/1/3/4) and supports single-ended/differential | |
| Power supply | 12 VDC to 24 VDC | |
| Power consumption | Typ. 7.7 W@12 VDC | |
| Mechanical | Lens mount | M72 *0.75, flange focal length: 12 mm (0.5″), applicable to F/C-mount and others via adapter |

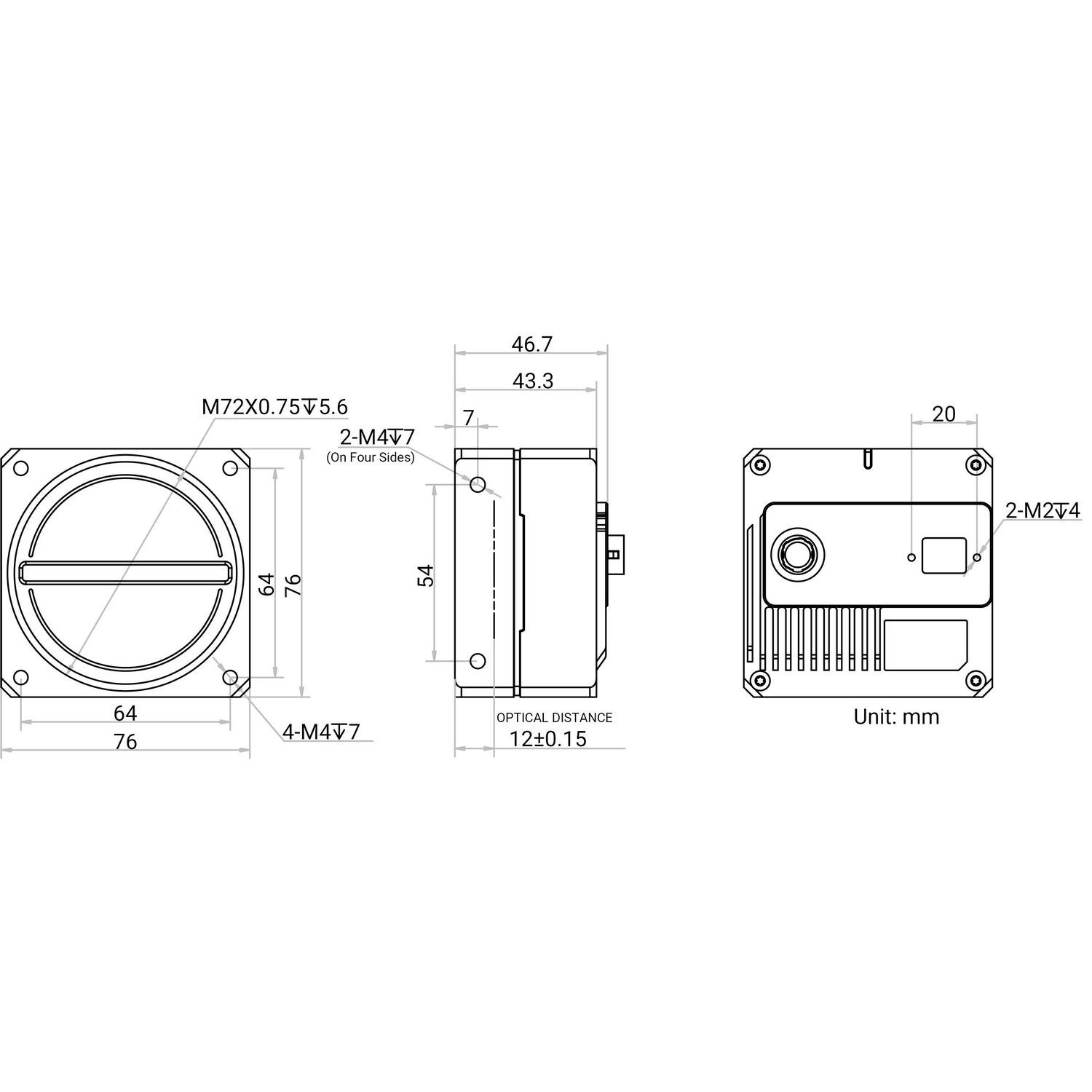

| Dimension | 76 mm × 76 mm × 46.7 mm (3.0″ × 3.0″ × 1.8″) | |
| Weight | Approx. 400 g (0.9 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: -20 °C to 50 °C (-4 °F to 122 °F); Storage temperature: -30 °C to 80 °C (-22 °F to 176 °F) | |
| Humidity | 5% to 90% RH, non-condensing | |
| General | Client software | MVS or the third-party software meeting with GigE Vision protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux, and 64-bit MacOS | |
| Compatibility | GigE Vision V2.0, GenICam | |
| Certification | CE, RoHS, KC |
