- Integrates multiple ISP technologies, and supports manual adjustment of Gamma correction, FFC correction, LUT, black level, etc.
- Supports multiple exposure and acquisition modes.
- Adopts configurable bi-directional I/O hardware design.
- Compact design and flexible installation.
- Compatible with Camera Link Protocol and GenlCam Standard.
MV-CL161-41CM
HIKROBOT Line Scan Camera CL Series
HIKROBOT Line Scan Camera CL Series
The CL series covers 2K-16K pixels and equipped with GigE/Camera Link/XoF interfaces, support a variety of ISP and algorithms that can fulfill various application needs of line scan cameras.
The CL camera supports various ISP functions: Flat field correction, Gamma, LUT, white balance, CCM, SC, etc. to help users obtain higher quality image data; Despite timed exposure, a new acquisition method of trigger-width controlled exposure is added, and with external (soft/hard) trigger signals, it can flexibly adapt to external lighting conditions and exposure control needs.
The High-Bandwidth Mode is equipped in the new GigE CL line scan camera. Breaking through the physical bandwidth of the gigabit network, the line frequency can been improved by 1.5-2 times, which provide users with a more cost-effective solution.
Product Downloads:
| Model | Product Model | MV-CL161-41CM |
| Type | 16k Camera Link Line Scan Cameras，Mono | |
| Performance | Sensor type | CMOS |
| Pixel size | 3.5 μm | |
| Resolution | 16384 × 1 | |
| Image mode | 1-line | |
| Max. line rate | 10 kHz (Base), 20 kHz (Medium), 40 kHz (Full), and 50 kHz (80-bit) | |
| Configuration mode | Base, Medium, Full, 80-bit | |
| Tap geometry | 1 × 2, 1 × 4, 1 × 8, 1 × 10 | |
| Tap number | 2 Taps, 4 Taps, 8 Taps, 10 Taps | |
| Pixel clock | 40 MHz, 66 MHz, 80 MHz, 85 MHz | |
| Dynamic range | 64.7 dB | |
| SNR | 44.3 dB | |
| Gain | Supports 1 ×, 2 ×, 4 ×, 8 × | |
| Exposure time | 2 μs to 10 ms | |
| Exposure mode | Off/ Once/ Continuous exposure mode; supports fixed exposure time, trigger-width exposure | |
| Mono/color | Mono | |
| Pixel format | Mono 8/10/12 | |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 | |
| Reverse image | Supports horizontal reverse image output | |
| Trigger mode | External trigger, internal trigger | |
| External trigger mode | Line trigger, frame trigger, line + frame trigger | |
| Electrical feature | Data interface | Camera Link |
| Digital I/O | 12-pin P10 connector provides power and I/O: configurable input and output × 4 (Line 0/1/3/4), and support single-end/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4). | |
| Power supply | 12 VDC to 24 VDC | |
| Power consumption | Typ. 7.2 W@12 VDC | |
| Mechanical | Lens mount | M72*0.75, optical back focal length: 12 mm (0.5"), applicable to F-mount via lens adapter |

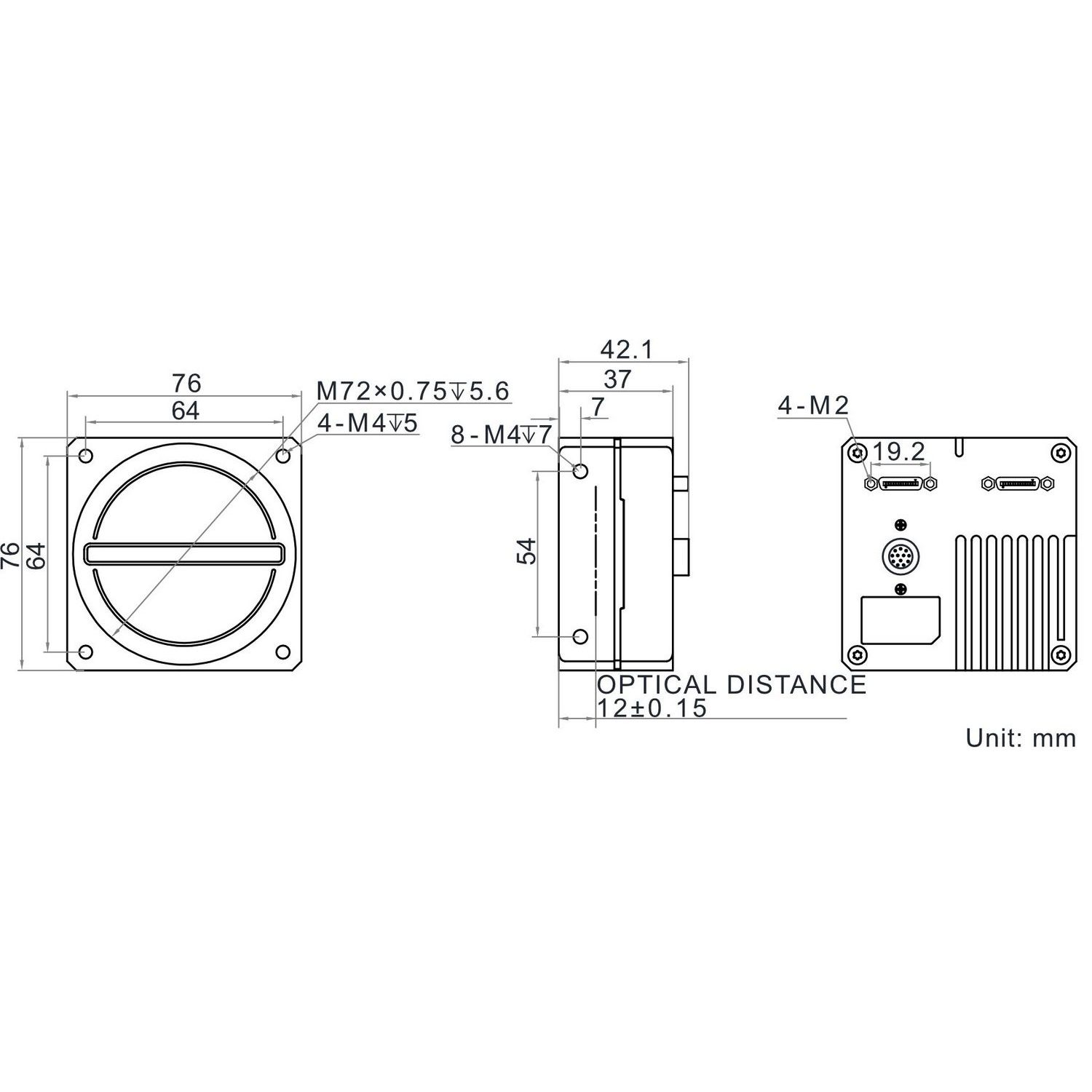

| Dimension | 76 mm × 76 mm × 42.1 mm (3.0" × 3.0" × 1.7") | |
| Weight | Approx. 320 g (0.7 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: 0 °C to 55 °C (32 °F to 131 °F); Storage temperature: -30 °C to 80 °C (-22 °F to 176 °F) | |
| Humidity | 5% to 90% RH, non-condensing | |
| General | Client software | MVS and frame grabber software meeting with Camera Link Protocol |
| Operating system | 32/64-bit Windows 7/10 | |
| Compatibility | Camera Link V1.2, GenICam | |
| Certification | CE, FCC, RoHS, KC |
