- Built-in deep learning algorithm to read codes with good robustness.
- Compact design and small in size.
- Adopts multiple IO interfaces and plug-in power interface.
- Adopts LED aiming light to help aim codes.
- Adopts buzzer and indicator for indicating device status.
- Supports one-click parameter adjustment for convenient operation.
MV-ID2013EM-05-WBN
HIKROBOT Smart Code Reader ID2000 Series
HIKROBOT Smart Code Reader ID2000 Series
As a compact industrial barcode reader, ID2000 series can be embedded in automated machine equipment and other automated assembly line proximity barcode reading applications. Support common 1D, 2D and DPM codes, the patented lighting design provides high-quality image lighting.
Supports the identification of multiple 1D and 2D codes and DPM codes like laser engraving, inkjet and others. The decoding frame rate can reach up to 20fps and the code reading speed can reach 45 codes/s.
With a size of 46×25×38mm, ID2000 series support two installation methods (side/back), which can be perfectly embedded in miniaturized or existing automated machine equipments and can maximize saving installation space.
Product Downloads:
| Model | Product Model | MV-ID2013EM-05-WBN |
| Type | 5mm focal length 1.3MP Ultra-Compact Industrial Code Reader | |
| Performance | Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE2-dimensional codes: QR Code, Data Matrix |
| Max. frame rate | 50 fps | |
| Max. reading speed | 30 codes/sec | |
| Sensor type | CMOS, global shutter | |
| Pixel size | 2.7 µm × 2.7 µm | |
| Sensor size | 1/4″ | |
| Resolution | 1280 × 1024 | |
| Exposure time | 60 μs to 6000 μs | |
| Gain | 1 dB to 28 dB | |
| Mono/color | Mono | |
| Communication protocol | Device with network interface: SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP | |
| Depth of field | Code 39 (5 mil): 75 mm to 215 mmCode 128 (10 mil): 50 mm to 400 mmEAN 13 (13 mil): 60 mm to 420 mmData Matrix (10 mil): 50 mm to 240 mmQR Code (15 mil): 40 mm to 290 mm | |
| Optics | Focal length | 4.7 mm (0.2″) |
| Working distance | 120 mm (4.7″) | |
| Ambient illumination | 900 lux@120 mm | |
| Light source | White | |
| Aiming system | Green LED | |
| Electrical feature | Data interface | Device with network interface: Fast Ethernet |
| Digital I/O | Device with network interface: DB15 connector provides power and I/O, including none-isolated input × 2 (LineIn 0/1), none-isolated output × 2 (LineOut 2/3), RS-232 × 1. Device trigger via pressing trigger button supported. | |
| Power supply | Device with network interface: 12 VDC to 24 VDC | |
| Max. power consumption | Device with network interface: 3.5 W@12 VDC | |
| Mechanical | Lens mount | M5.8-mount |
| Indicator | Power indicator (POWER), status indicator (OK/NG) | |

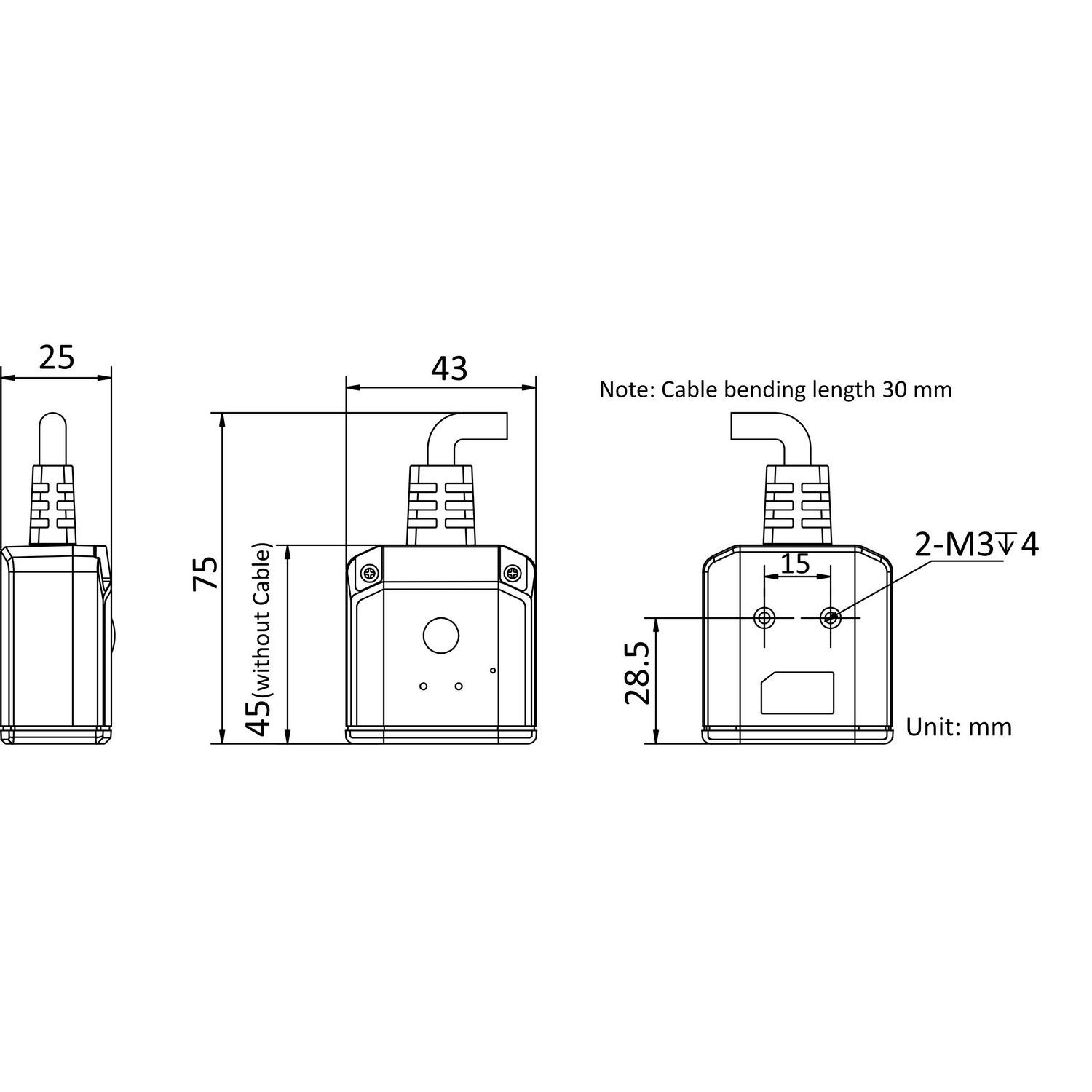

| Dimension | 45 mm × 43 mm × 25 mm (1.8″ × 1.7″ × 1.0″) | |
| Weight | Approx. 68.5 g (0.15 lb.) | |
| Ingress protection | IP54 | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | IDMVS |
| Certification | CE, FCC, RoHS |
