- Built-in deep learning algorithm to read codes with good robustness.
- Compact design and small in size.
- Adopts aviation connector for single cable wiring.
- Adopts LED aiming light to help aim codes.
- Adopts focus knob for adjusting focusing manually.
- Adopts multiple IO interfaces and plug-in power interface.
- Supports multiple communication protocols, including TCP, Serial, FTP, Profinet, etc.
MV-ID2016M-06S-RBN-U
HIKROBOT Smart Code Reader ID2000 Series
HIKROBOT Smart Code Reader ID2000 Series
As a compact industrial barcode reader, ID2000 series can be embedded in automated machine equipment and other automated assembly line proximity barcode reading applications. Support common 1D, 2D and DPM codes, the patented lighting design provides high-quality image lighting.
Supports the identification of multiple 1D and 2D codes and DPM codes like laser engraving, inkjet and others. The decoding frame rate can reach up to 20fps and the code reading speed can reach 45 codes/s.
With a size of 46×25×38mm, ID2000 series support two installation methods (side/back), which can be perfectly embedded in miniaturized or existing automated machine equipments and can maximize saving installation space.
Product Downloads:
| Model | Product Model | MV-ID2016M-06S-RBN-U |
| Type | 6mm focal length 1.6MP USB PRO Series Compact Industrial Code Reader | |
| Performance | Symbologies | 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ITF 14, ITF 25, MATRIX 25, UPCA, UPCE, MSI, Code 11, Industrial 25, China Post, and Pharmacode2D codes: QR Code, Data Matrix, Micro QR, and AZTECStacked codes: PDF 417 |
| Max. frame rate | 60 fps | |
| Max. reading speed | 45 codes/sec | |
| Sensor type | CMOS, global shutter | |
| Pixel size | 3.45 µm × 3.45 µm | |
| Sensor size | 1/2.9″ | |
| Resolution | 1408 × 1024 | |
| Exposure time | 16 μs to 1 sec | |
| Gain | 0 dB to 15 dB | |
| Mono/color | Mono | |
| Communication protocol | SmartSDK，USB | |
| Electrical feature | Data interface | USB2.0 |
| Digital I/O | 17-pin M12 connector provides data transmission. Device trigger via pressing button on side supported. | |
| Power supply | 5 VDC (USB2.0 provides power supply) | |
| Max. power consumption | Approx. 4.6 W@5 VDC (USB2.0 provides power supply) | |
| Mechanical | Focal length | 6.72 mm (0.3″) |
| Lens mount | M10-mount, adjusting focus manually supported | |
| Working distance | 40 mm to 120 mm (1.6″ to 4.7″) | |
| Ambient illumination | 0 lux to 50000 lux | |
| Light source | Red | |
| Aiming system | Green LED | |
| Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (STS) | |

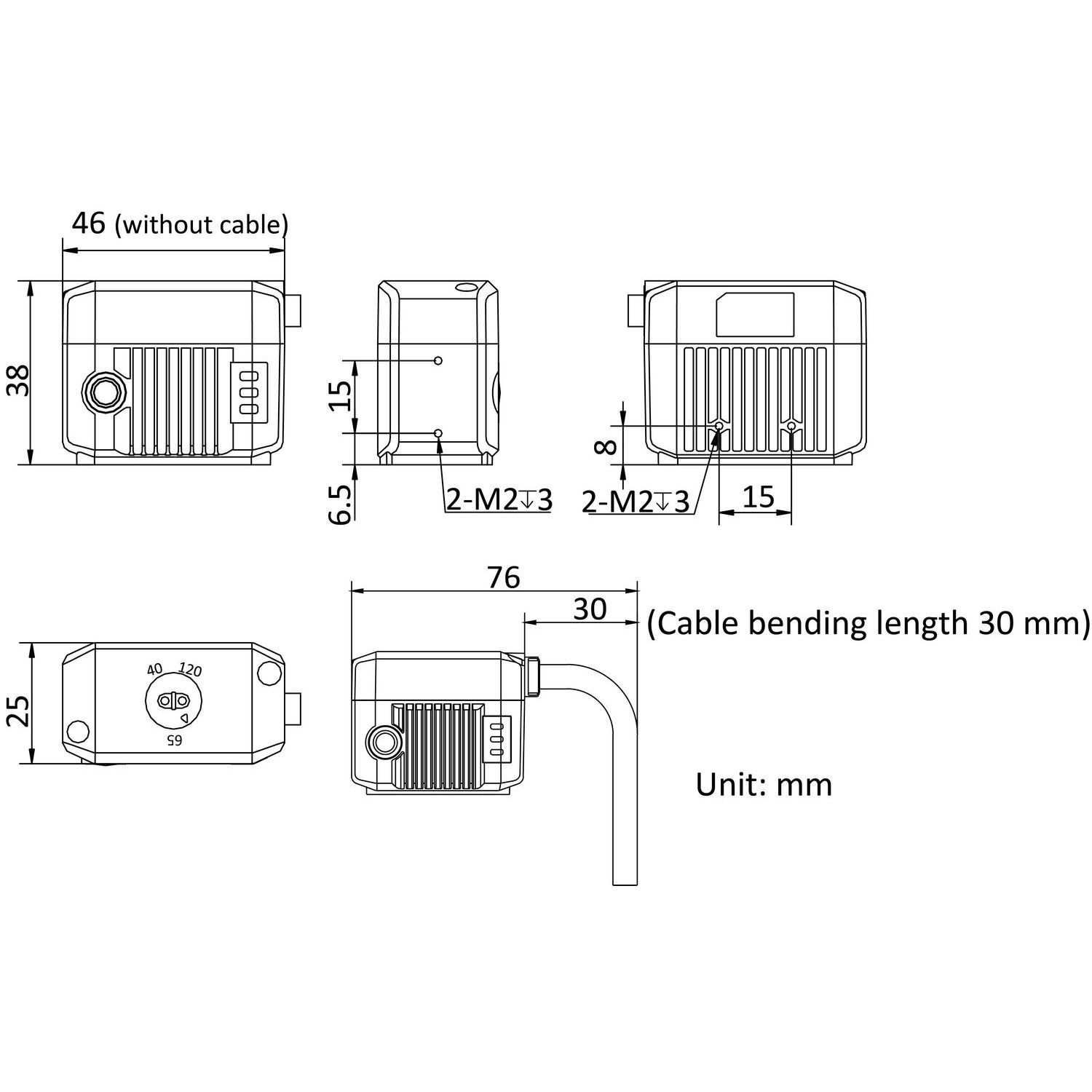

| Dimension | 46 mm × 38 mm × 25 mm (1.8″ × 1.5″ × 1.0″) | |
| Weight | Approx. 160 g (0.35 lb.) | |
| Ingress protection | IP65 | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | IDMVS |
| Certification | CE, RoHS, KC |
