- Adopts built-in deep learning algorithm to read codes with good robustness.
- Adopts CMOS sensor to acquire high-quality images.
- Adopts multiple indicators displaying device status from different sides.
- Supports one-key auto adjustment and easy to operate.
- Good environmental compatibility with Illuminating system.
- Adopts IO interfaces for input and output signals.
- Modularized light source design and easy to replace.
MV-ID3030XM-08M-RBN

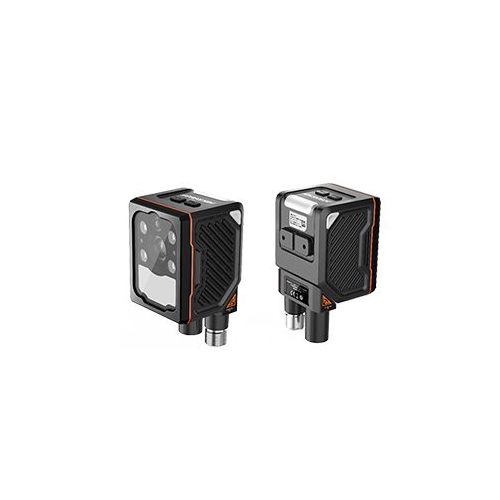

HIKROBOT Smart Code Reader ID3000 Series
HIKROBOT Smart Code Reader ID3000 Series
Based on the embedded deep-learning platform, ID3000 adopt compact & modular design. With easy debugging (mechanical focusing), automatic polarization function and controllable light source branching, ID3000 can be widely used in various code reading scenarios.
The ID3000 series integrates a deep-learning system chip (Soc), which has powerful computing power and lower energy consumption ratio. ID3000 series has a high-speed recognition efficiency and stable recognition for label paper and DPM barcodes.
The ID3000 series has a rich selection of light source, lens and other modules, which is easy to switch, can ensure the best image lighting effect and adapt to the requirements of different working distances and fields of view in complex working conditions.
Product Downloads:
| Model | Product Model | MV-ID3030XM-08M-RBN |
| Type | ID3030XM，3.1MP，RED Light，8mm focal length Industrial Code Reader | |
| Performance | Symbologies | 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ITF 14, ITF 25, MATRIX 25, UPCA, UPCE, MSI, Code 11, Industrial 25, China Post, and Pharmacode 2D codes: QR Code, Data Matrix, and Micro QR Stacked codes: PDF 417 |
| Max. frame rate | 60 fps | |
| Max. reading speed | 90 codes/sec | |
| Sensor type | CMOS, global shutter | |
| Pixel size | 3.45 µm × 3.45 µm | |
| Sensor size | 1/1.8″ | |
| Resolution | 2048 × 1536 | |
| Exposure time | 6 μs to 30000 μs | |
| Gain | 0 dB to 24 dB | |
| Mono/color | Mono | |
| Communication protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus, Fins, UDP | |
| Electrical feature | Data interface | Fast Ethernet |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1. Triggering the device is supported via pressing the top button. |
|
| Power supply | 24 VDC | |
| Max. power consumption | 6.2 W@24 VDC (self-light source enabled) | |
| Mechanical | Focal length | 8 mm (0.3″) |
| Lens mount | M12-mount, mechanical autofocus | |
| Lens cap | Transparent + polarized + diffused lens cap | |
| Light source | Red point light source + white diffused light source. White/blue/IR point light source is optional. | |
| Aiming system | Orange LED | |
| Indicator | Device body indicator, reading result indicator | |

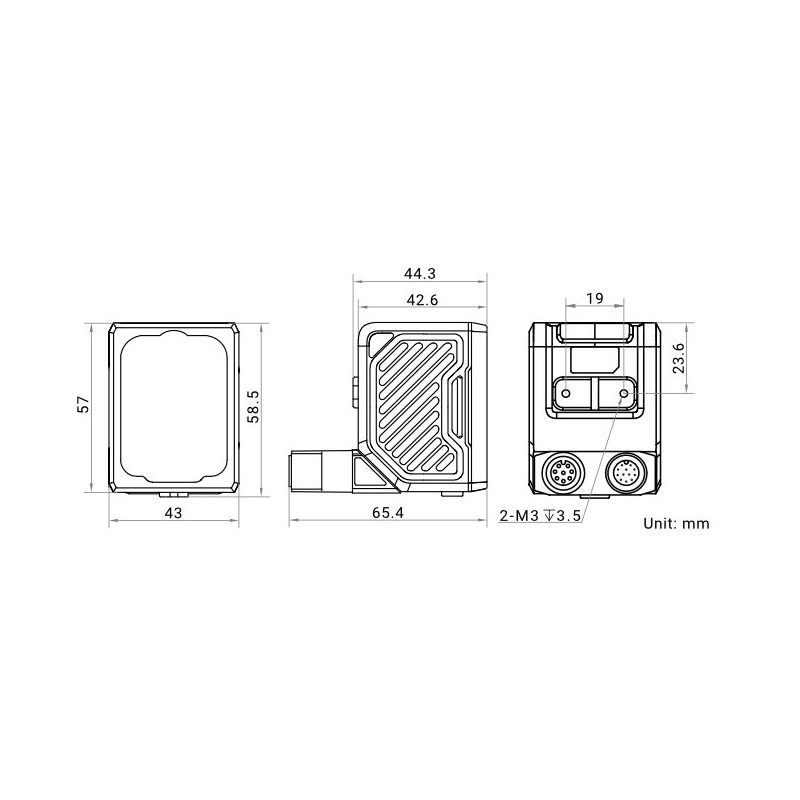

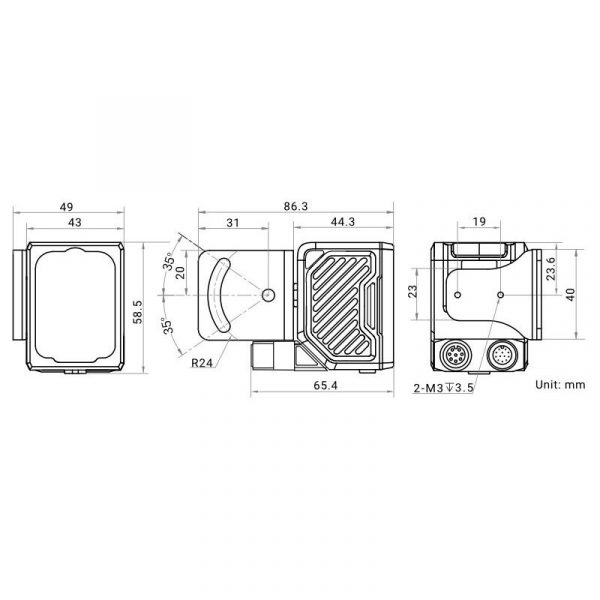

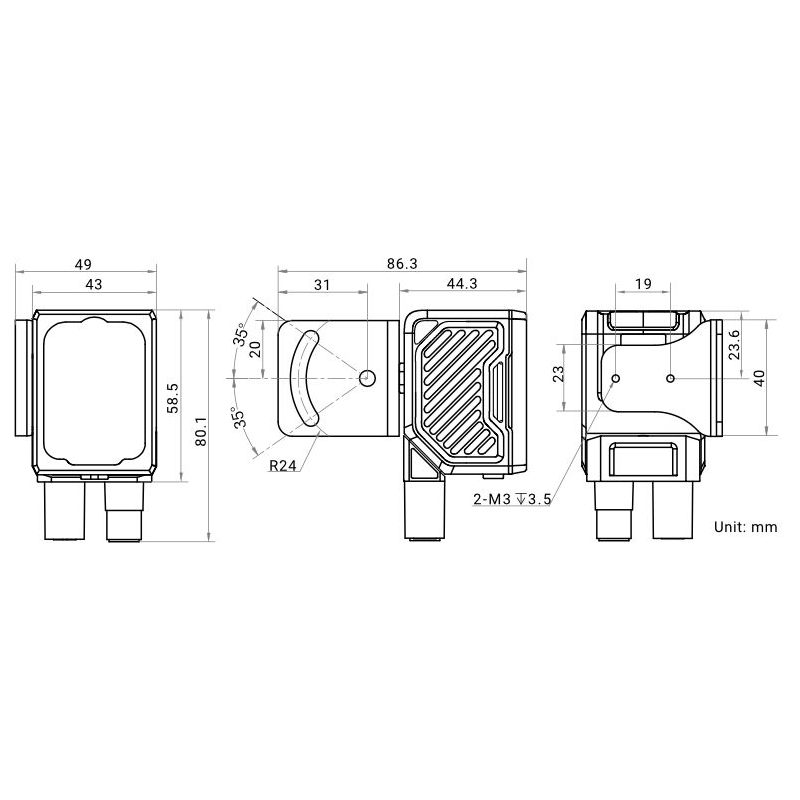

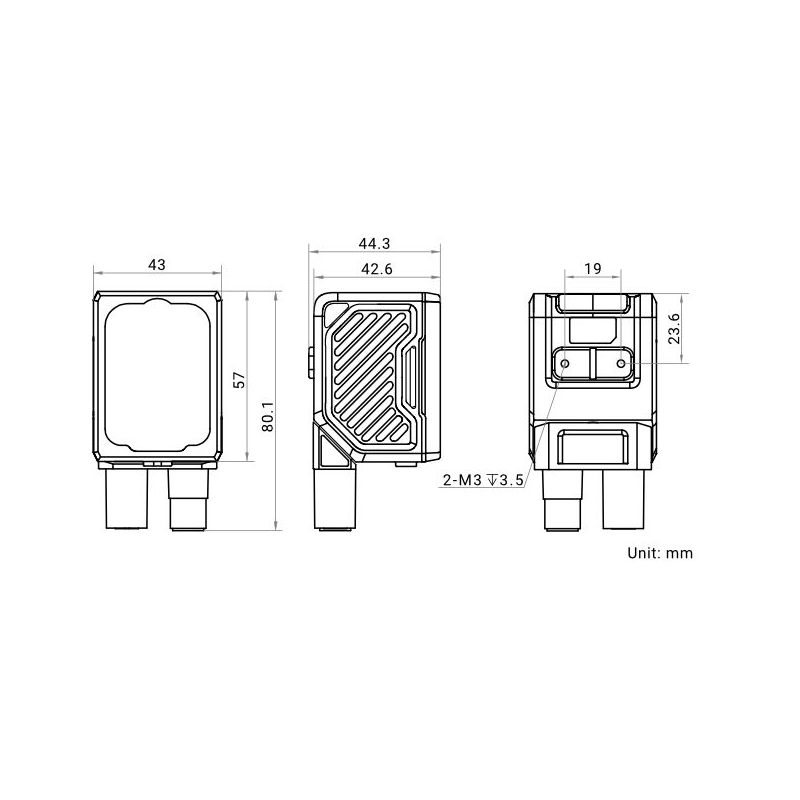

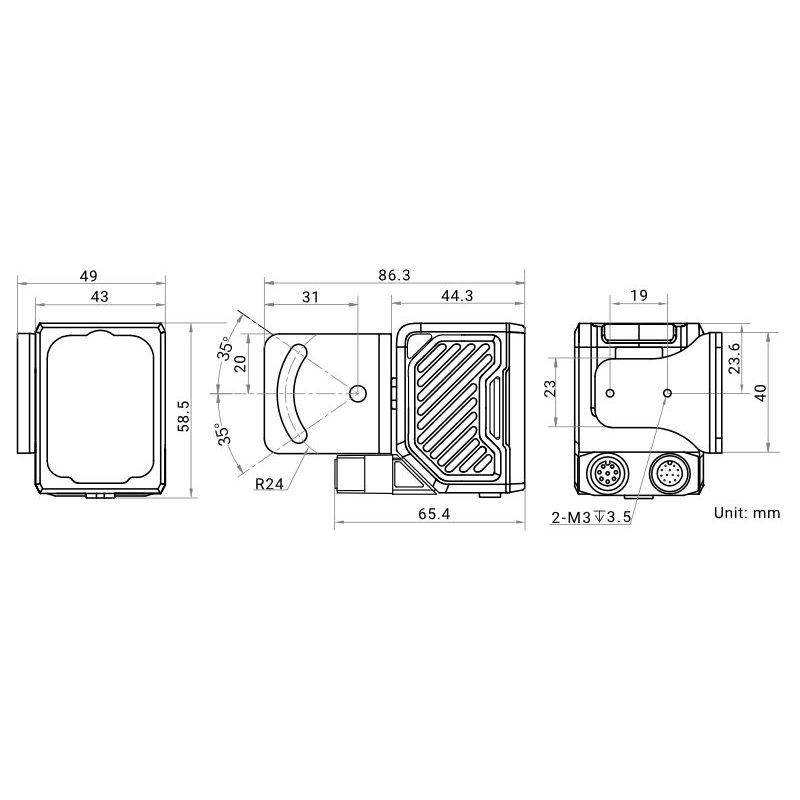

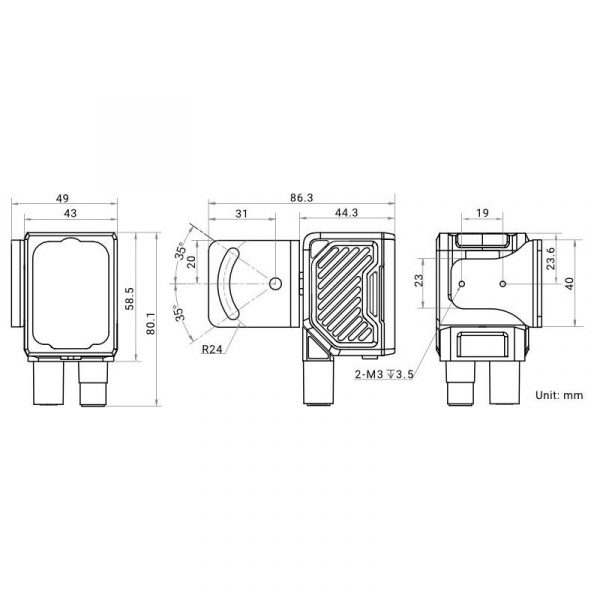

| Dimension | Straight angle: 80.1 mm × 43 mm × 44.3 mm (3.2″ × 1.7″ × 1.7″) Right angle: 58.5 mm × 43 mm × 65.4 mm (2.3″ × 1.7″ × 2.6″) |
|
| Weight | Approx. 195 g (0.4 lb.) | |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
|
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | IDMVS |
| Certification | CE, RoHS, KC |
