- Built-in deep learning algorithm to read codes with good robustness.
- Adopts CMOS sensor to provide high-quality images with horizontal resolution of 5K and bottom horizontal FOV covering 1-meter conveyor line.
- Supports rapid recognition of multiple codes within large FOV.
- Supports networking of multiple devices.
- Flexible installation and convenient debugging.
MV-ID6200EM-00C-NNG

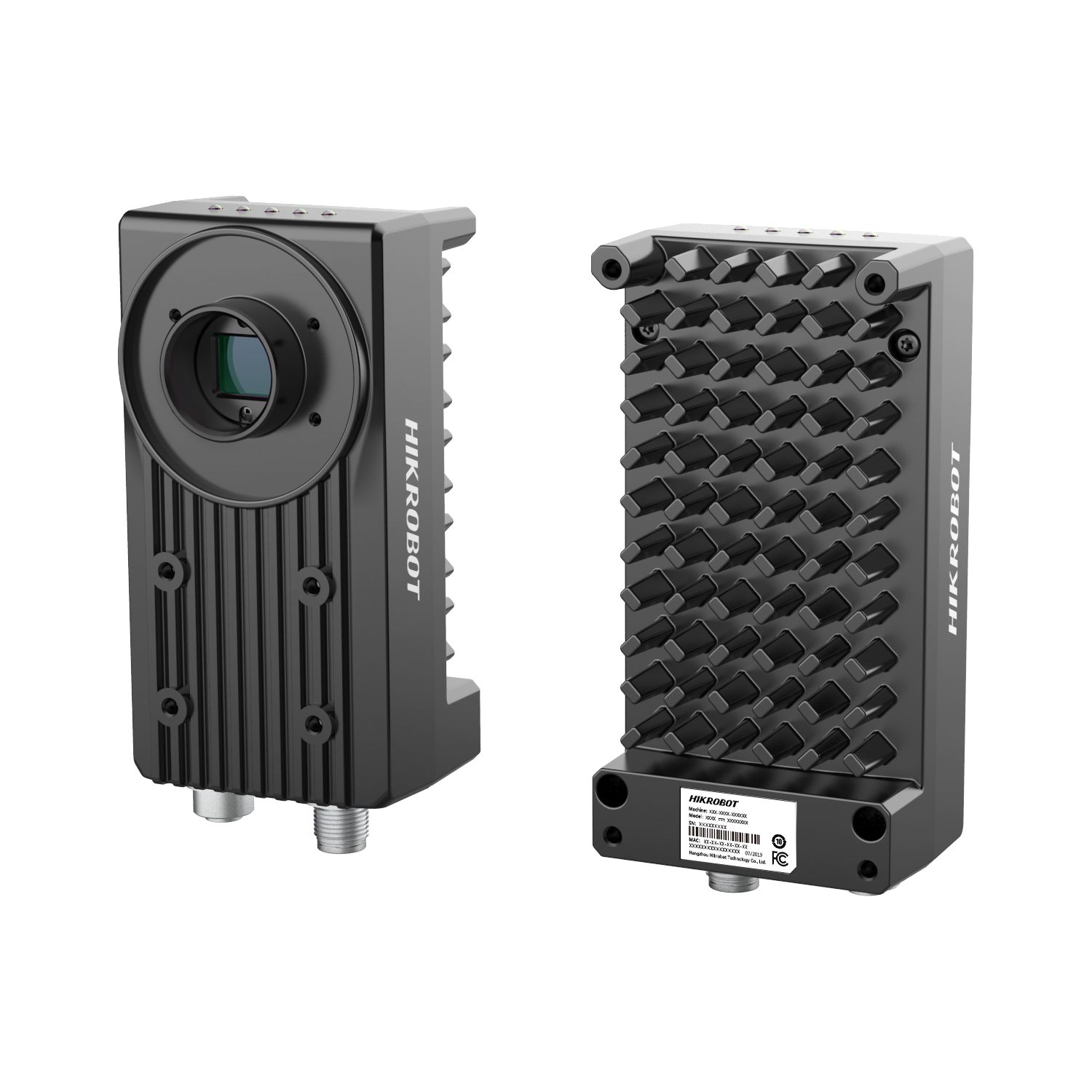

HIKROBOT Logistics Code Reader ID6000 Series
HIKROBOT Logistics Code Reader ID6000 Series
Image-based high-resolution barcode reader ID6000 is specialized for the logistics industry. ID6000 has especially developed in algorithm development to cope with various complex logistics code reading application scenarios.
Based on high-performance multi-core deep learning processor, ID6000 series has specially optimized decoding algorithm and high decoding frames rate. It can identify complex codes in common environment such as stained, defective and poorly printing codes.
ID6000 series can be matched with various types of external integrated light sources, combined with high-performance decoding algorithms, to achieve a super-large depth of field effect of over 700mm, can cover packages under 700mm through 1 camera.
Product Downloads:
| Model | Product Model | MV-ID6200EM-00C-NNG |
| Type | 20MP Logisitc Code Reader | |
| Performance | Symbologies | 1-dimensional codes: Code 39, Code 128, Code 93, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE2-dimensional codes: QR Code, Data Matrix |
| Max. frame rate | 10 fps | |
| Max. reading speed | 30 codes/sec | |
| Sensor type | CMOS, rolling shutter | |
| Pixel size | 2.4 µm × 2.4 µm | |
| Sensor size | 1″ | |
| Resolution | 5440 × 3648 | |
| Exposure time | 16 μs to 500 ms | |
| Gain | 0 dB to 40 dB | |
| Mono/color | Mono | |
| Communication protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP, UDP | |
| Electrical feature | Data interface | GigE |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 3/4/5) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1. | |
| Power supply | 12 VDC to 24 VDC | |
| Max. power consumption | 12 W@24 VDC | |
| Mechanical | Lens mount | C-mount |
| Light source | Not included | |
| Lens cap | Not included | |

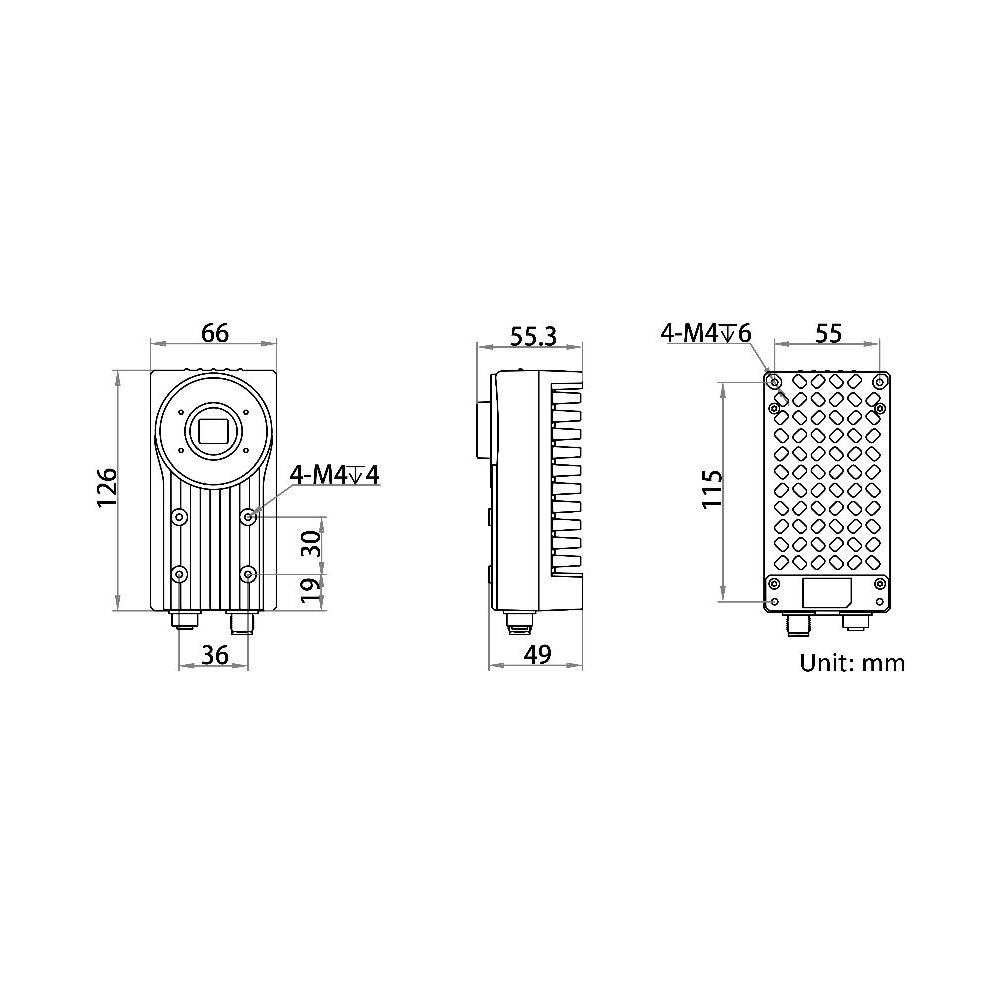

| Dimension | 126 mm × 66 mm × 55.3 mm (5.0″ × 2.6″ × 2.2″) | |
| Weight | Approx. 550 g (1.2 lb.) | |
| Ingress protection | IP64 | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | IDMVS |
| Certification | CE, RoHS |
