MV-ID6200M-00C-NNG

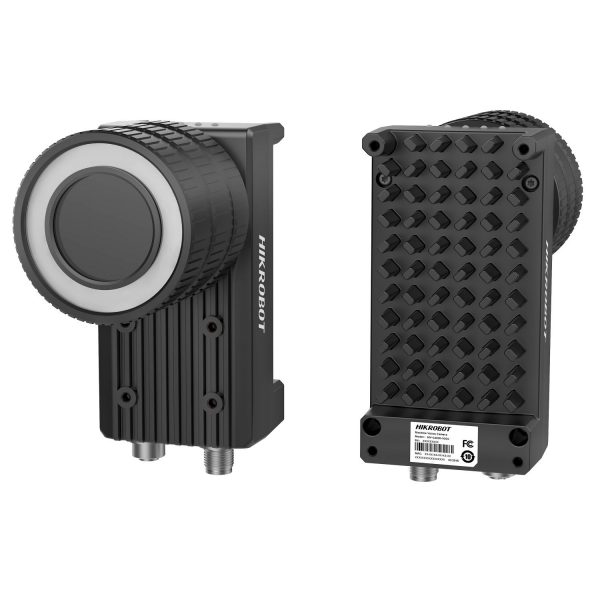

HIKROBOT Logistics Code Reader ID6000 Series

C-mount, 20MP (5440 × 3648), 20 fps, 60 codes/sec, No light, Gigabit

HIKROBOT Logistics Code Reader ID6000 Series

Image-based high-resolution barcode reader ID6000 is specialized for the logistics industry. ID6000 has especially developed in algorithm development to cope with various complex logistics code reading application scenarios.
Based on high-performance multi-core deep learning processor, ID6000 series has specially optimized decoding algorithm and high decoding frames rate. It can identify complex codes in common environment such as stained, defective and poorly printing codes.
ID6000 series can be matched with various types of external integrated light sources, combined with high-performance decoding algorithms, to achieve a super-large depth of field effect of over 700mm, can cover packages under 700mm through 1 camera.

Product Downloads:

DrawingUser ManualData Sheet

SKU: MV-ID6200M-00C-NNG Category: Tags: , , , , ,
Compare
  • Provides 20 MP resolution to cover a larger field of view.
  • Adopts deep learning algorithm with good robustness to recognize various poor printing quality codes.
  • Supports recognition of multiple codes in the field of view.
  • Supports gigabit Ethernet transmission to output images.
  • Supports networking of multiple devices via code reading platform.
  • Ingress protection (IP) 67.

Model Product Model MV-ID6200M-00C-NNG
Type 20MP Logisitc Code Reader
Performance Symbologies 1-dimensional codes: Code 39, Code 128, Code 93, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 142-dimensional codes: QR Code, Data Matrix
Max. frame rate 20 fps
Max. reading speed 60 codes/sec
Sensor type CMOS, rolling shutter
Pixel size 2.4 µm × 2.4 µm
Sensor size 1″
Resolution 5440 × 3648
Exposure time 16 μs to 0.5 sec
Gain 0 dB to 40 dB
Mono/color Mono
Communication protocol SmartSDK, TCP Client, TCP Server, Serial, FTP
Electrical feature Data interface GigE
Digital I/O 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1.
Power supply 12 VDC to 24 VDC
Max. power consumption 12 W@24 VDC
Mechanical Lens mount C-mount
Light source Not included
Lens cap Included

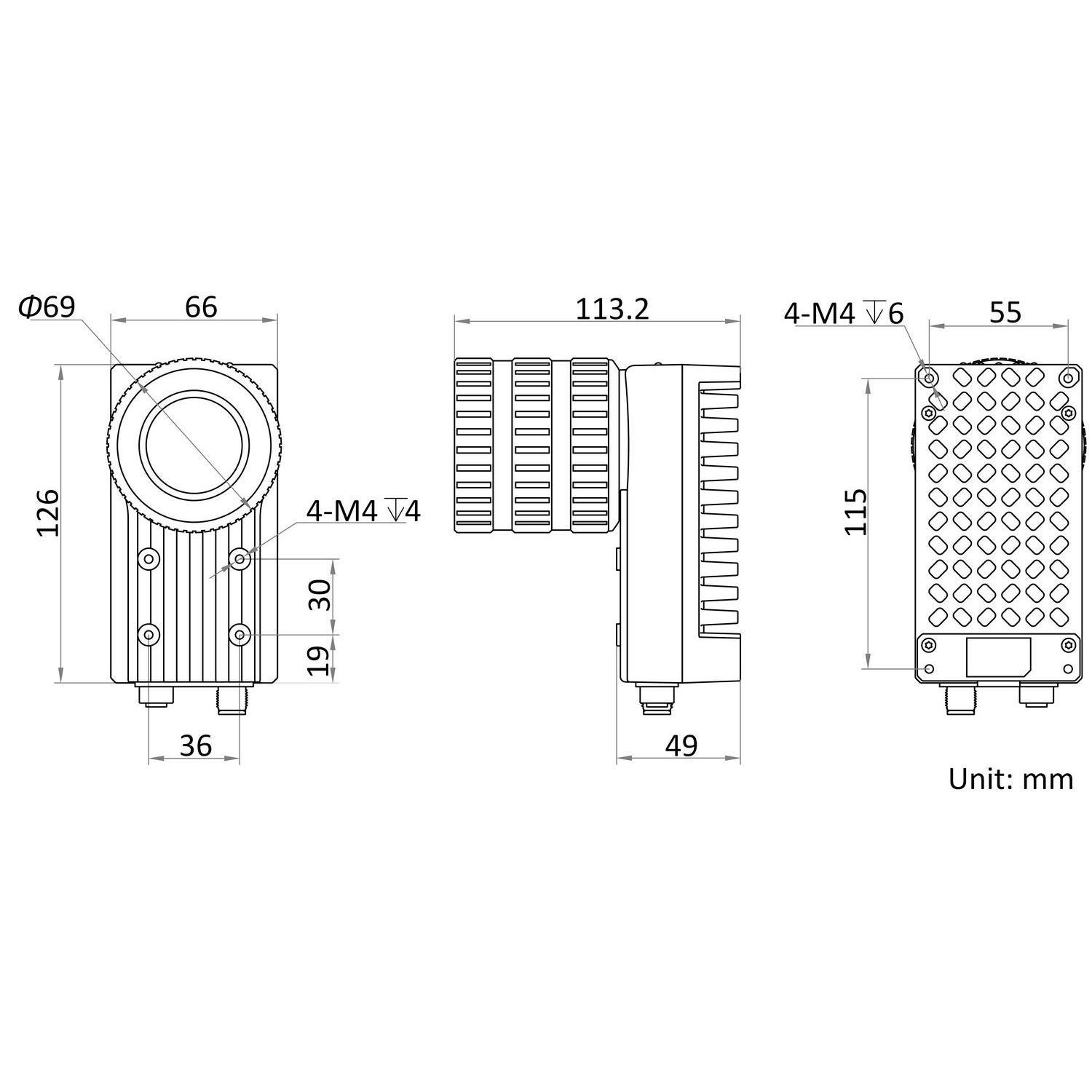

Dimension 126 mm × 66 mm × 113.2 mm (5.0″ × 2.6″ × 4.5″)
Weight Approx. 750 g (1.7 lb.)
Ingress protection IP67 ( under proper installation of waterproof lens cap)
Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity 20% to 95% RH, non-condensing
General Client software IDMVS
Certification CE, RoHS
