- Built-in code reading algorithm to read different types of one-dimensional and two-dimensional codes with good robustness.
- Supports image stitching and outputting combined images according to order.
- Adopts image sensor to acquire and provide high-quality images.
- Supports different trigger modes and image acquisition modes.
- Adopts multiple IO interfaces for input/output signals.
- Supports RS-232 serial communication protocol.
- Integrated light source design with 36 LED lamps.

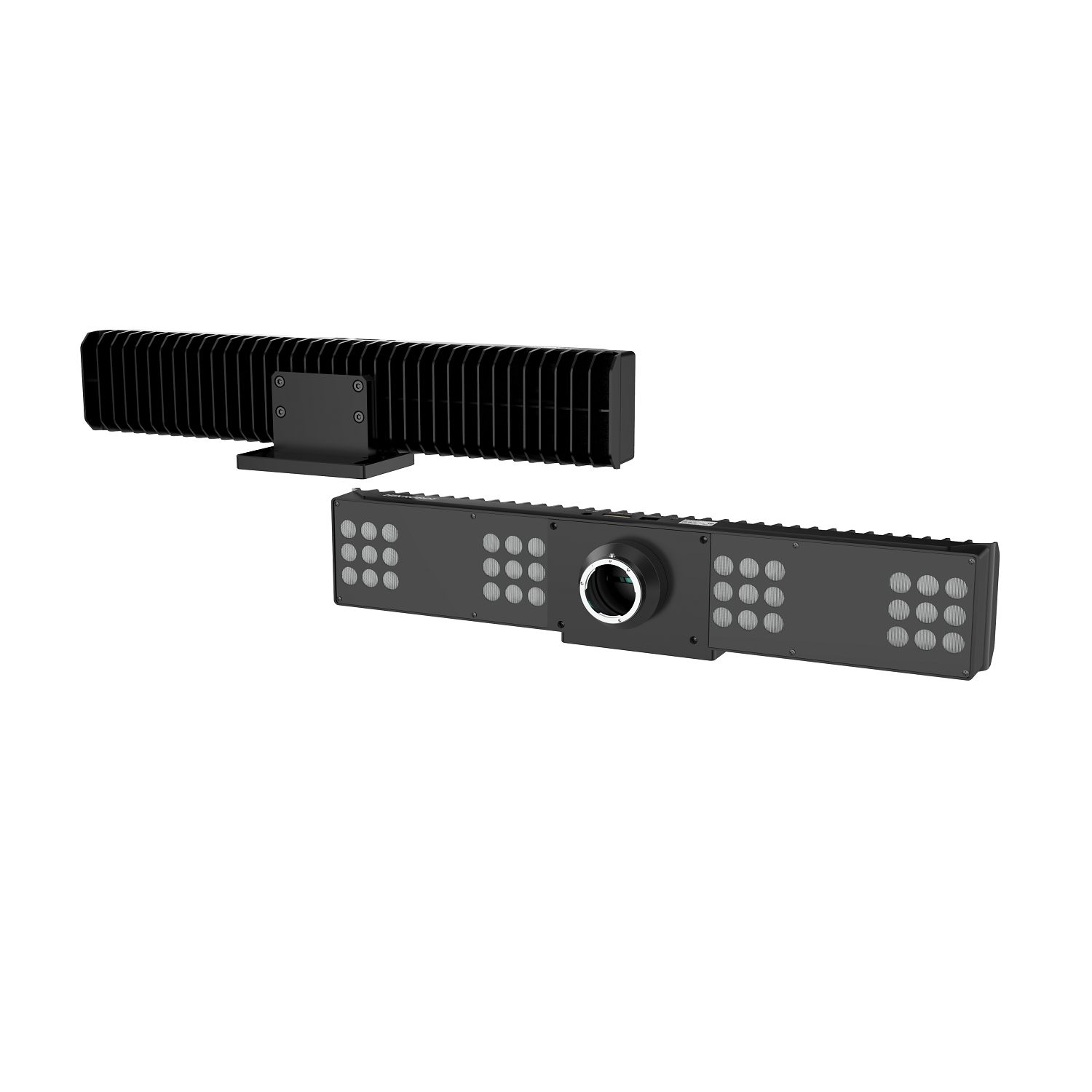

MV-ID7080EM-35F-WHA
HIKROBOT Logistics Code Reader ID7000 Series
HIKROBOT Logistics Code Reader ID7000 Series
Image-based high-resolution barcode reader ID6000 is specialized for the logistics industry. ID6000 has especially developed in algorithm development to cope with various complex logistics code reading application scenarios.
Based on high-performance multi-core deep learning processor, ID6000 series has specially optimized decoding algorithm and high decoding frames rate. It can identify complex codes in common environment such as stained, defective and poorly printing codes.
ID6000 series can be matched with various types of external integrated light sources, combined with high-performance decoding algorithms, to achieve a super-large depth of field effect of over 700mm, can cover packages under 700mm through 1 camera.
Product Downloads:
| Model | Product Model | MV-ID7080EM-35F-WHA |
| Type | 8K Logistic Code Reader | |
| Performance | Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ITF 14, ITF 25, UPCA, and UPCE2-dimensional codes: QR Code, Data Matrix |
| Max. line frequency | 15 kHz | |
| Max. operating speed of conveyer belt | 2.5 m/sec | |
| Resolution | 7424 × 1 | |
| Focal length | 35 mm (1.4″) | |
| Best working distance | 1000 mm (39.4″) | |
| Field of view (range) | 1000 mm @10 mil | |
| Mono/color | Mono | |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server | |
| Electrical feature | Data interface | GigE |
| Digital I/O | 10-pin green terminal provides I/O, including differential input (LineIn 0) × 1, opto-isolated input (LineIn 1) × 1, opto-isolated output (LineOut 3/4) × 2, and RS-232 × 1. | |
| Power supply | 48 VDC | |
| Max. power consumption | 180 W@48 VDC | |
| Mechanical | Lens mount | F-mount, flange back focal length 46.5 mm (1.8″) |

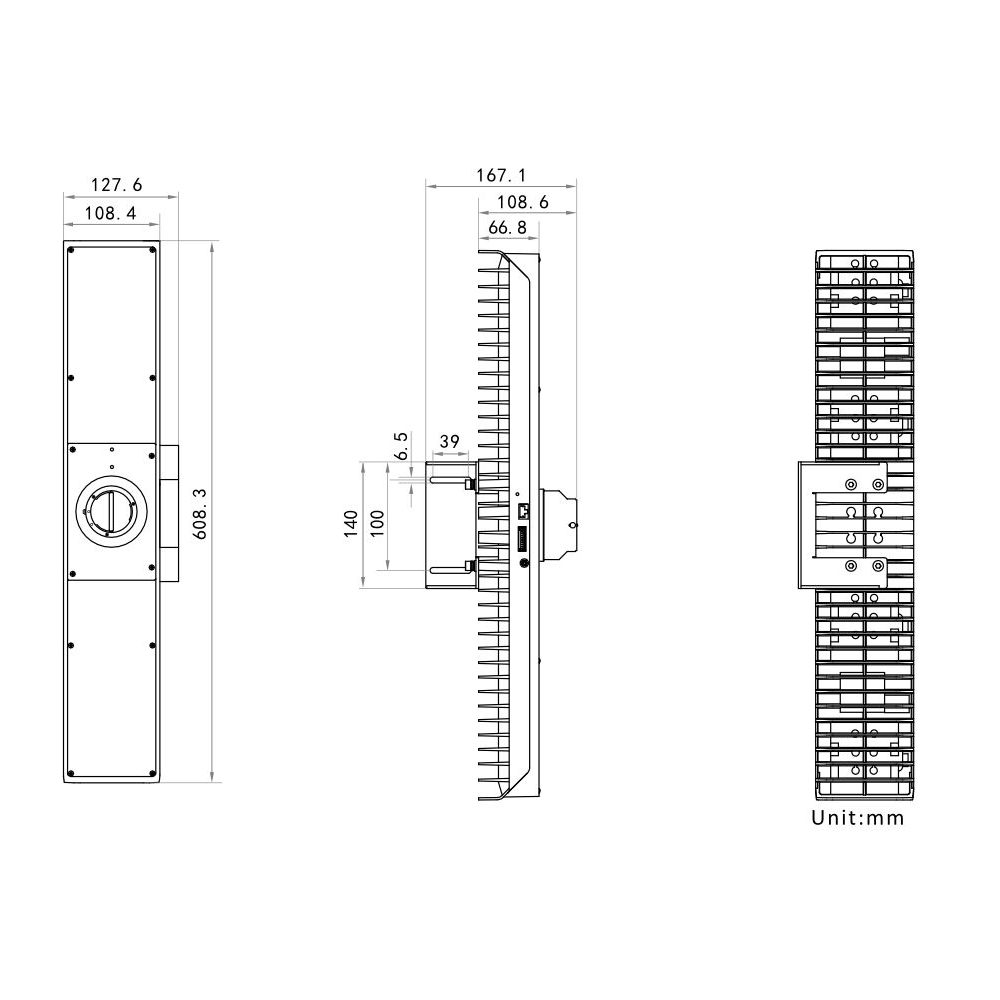

| Dimension | 608.3 mm × 127.6 mm × 167.1 mm (23.9″ × 5.0″ × 6.6″) | |
| Weight | Approx. 5 kg (11.0 lb.) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | IDMVS |
| Operating system | 32/64-bit Windows XP/7/10 | |
| Certification | CE, RoHS, KC |
