- High density array LED, provides uniform lighting.
- Middle opening design (circular hole/square hole), achieve forward lighting.
- Provide side mounting lugs, flexible installation mode.
MV-LBES-H-600-400-W
HIKROBOT Light Source, Flat Type
HIKROBOT Light Source, Flat Type
Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.
Product Downloads:
| Model | Product Model | MV-LBES-H-600-400-W |
| Type | Flat lighting with hole，600x400 | |
| Performance | Color | White |
| Center illuminance | ≥ 13000 lux@600 mm | |
| Color temperature | 6000 ~ 7000K | |
| Electrical feature | Power consumption | 174 W |
| Output voltage | 24 VDC | |
| Connector type | Dual-channel 19M-2A | |

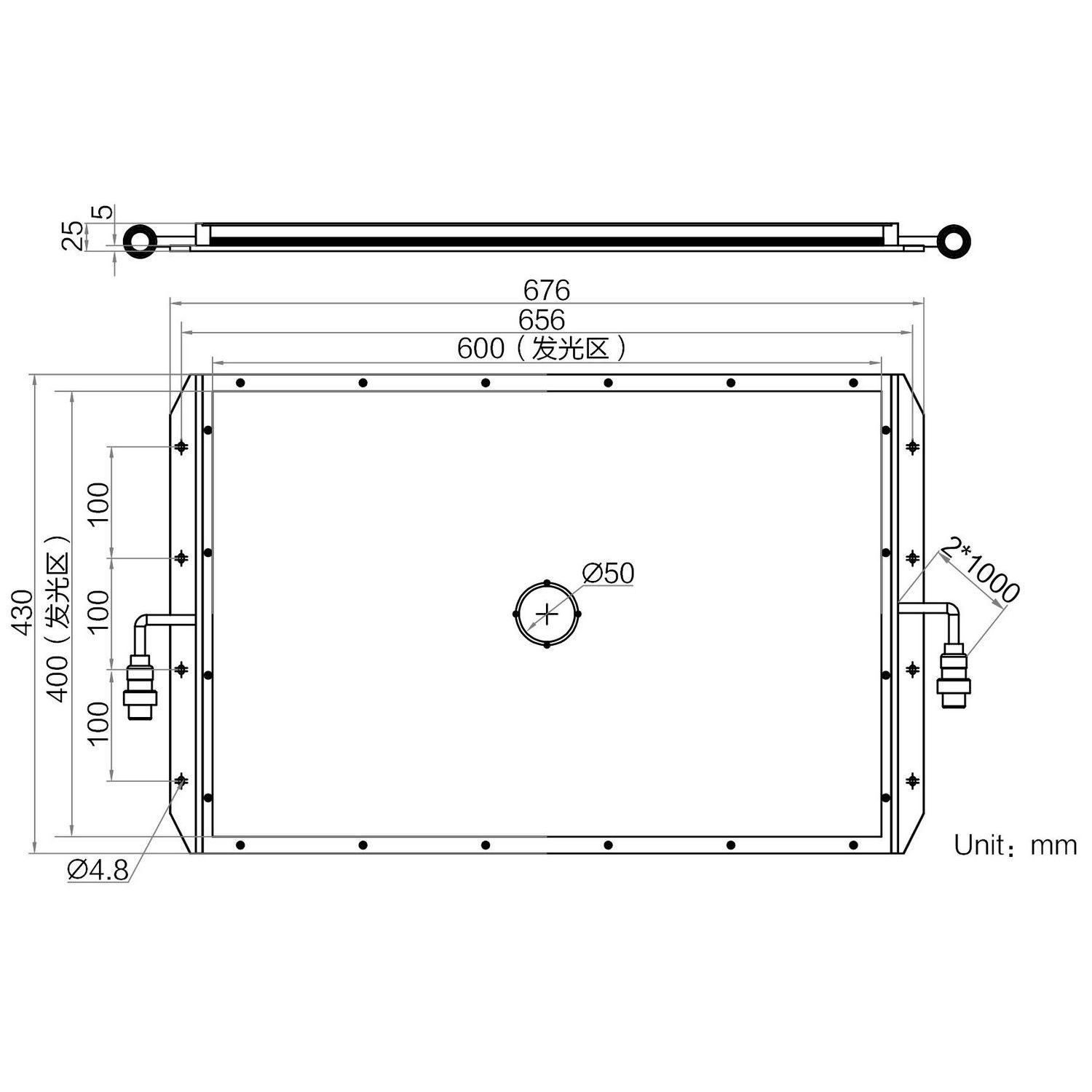

| Mechanical | Dimension | 676 mm × 430 mm × 25 mm |
| Emitting area dimensions | 600 mm × 400 mm | |
| Bore dimensions | Ø 50 mm | |
| Cable length | 1 m | |
| Cooling mode | Naturual cooling | |
| Weight | 7.2 kg | |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F) | |
| Humidity | 20% to 90%RH, non-condensing | |
| Diffuse plate included | Included |
