HIKROBOT Light Source, Coaxial Type

Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.

Compare

Aluminum alloy shell, good heat dissipation
High-density LED arrangement, high brightness
Customizable in various sizes and bands

Model	Model	MV-LCDS-30-30-B
Model	Name	Coaxial light source MV-LCDS-30-30-B
Performance	Color	Blue
	Wavelength	/
	Color temperature	/
Electrical characteristics	Interface type	SMR-03V-B
Electrical characteristics	Power	4.5 W
Structure	Power line length	500 mm

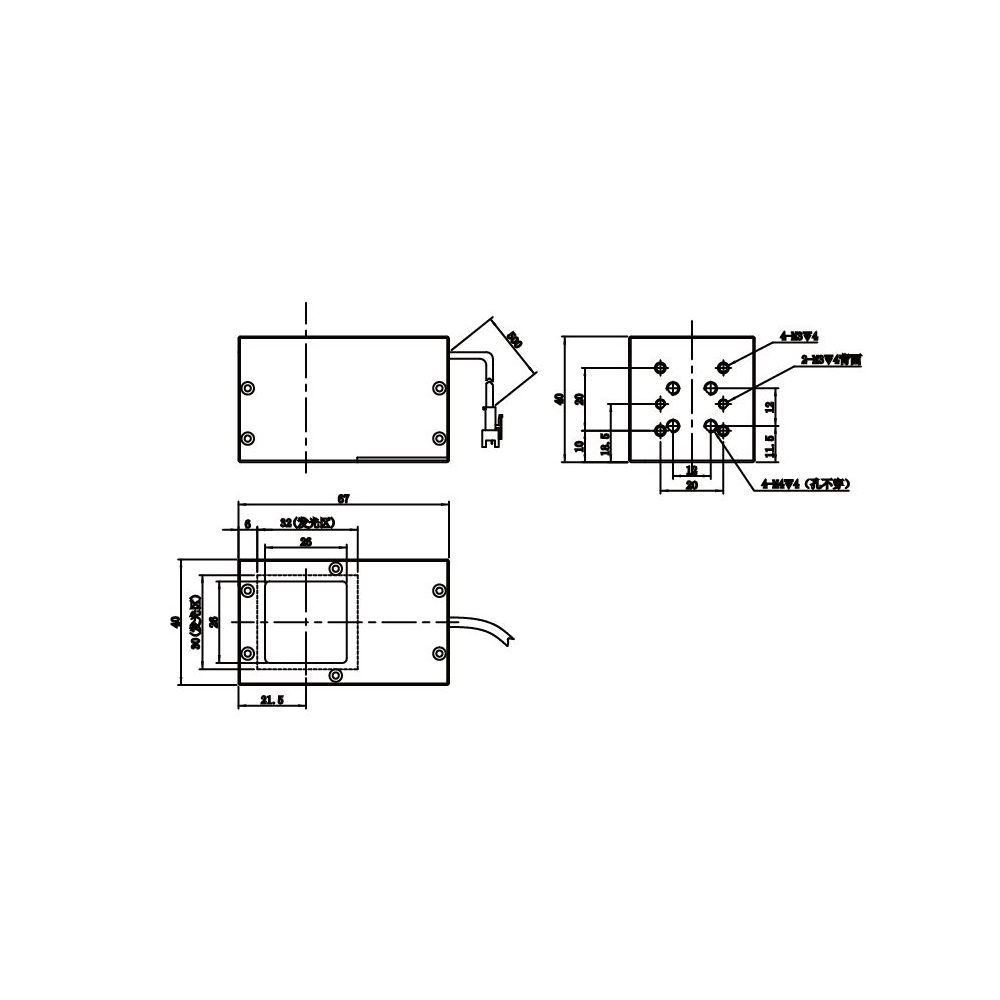

	Dimensions	56 mm × 38 mm × 36 mm
	Light-emitting area size	30 mm × 30 mm
	Temperature	Working temperature 0~40°C, storage temperature -20~60°C
	Humidity	20~85%RH without condensation
	Diffuser	Standard

MV-LCDS-30-30-B
