MV-LCDS-H-30-30-R

HIKROBOT Light Source, Coaxial Type

2.2W, 69x37.9x38mm, Area 32.5x32mm, Coaxial, Red

HIKROBOT Light Source, Coaxial Type

Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.

Product Downloads:

Data SheetDrawing

Compare
  • Special spectroscope design, improve lighting efficiency.
  • Efficient heat dissipation, extended service life.

ModelProduct ModelMV-LCDS-H-30-30-R
TypeCoaxial lighting,30*30,red color
PerformanceColorRed
Color temperature/
Wavelength625 nm
Electrical featurePower consumption2.2 W
Connector typeSMR-03V-B

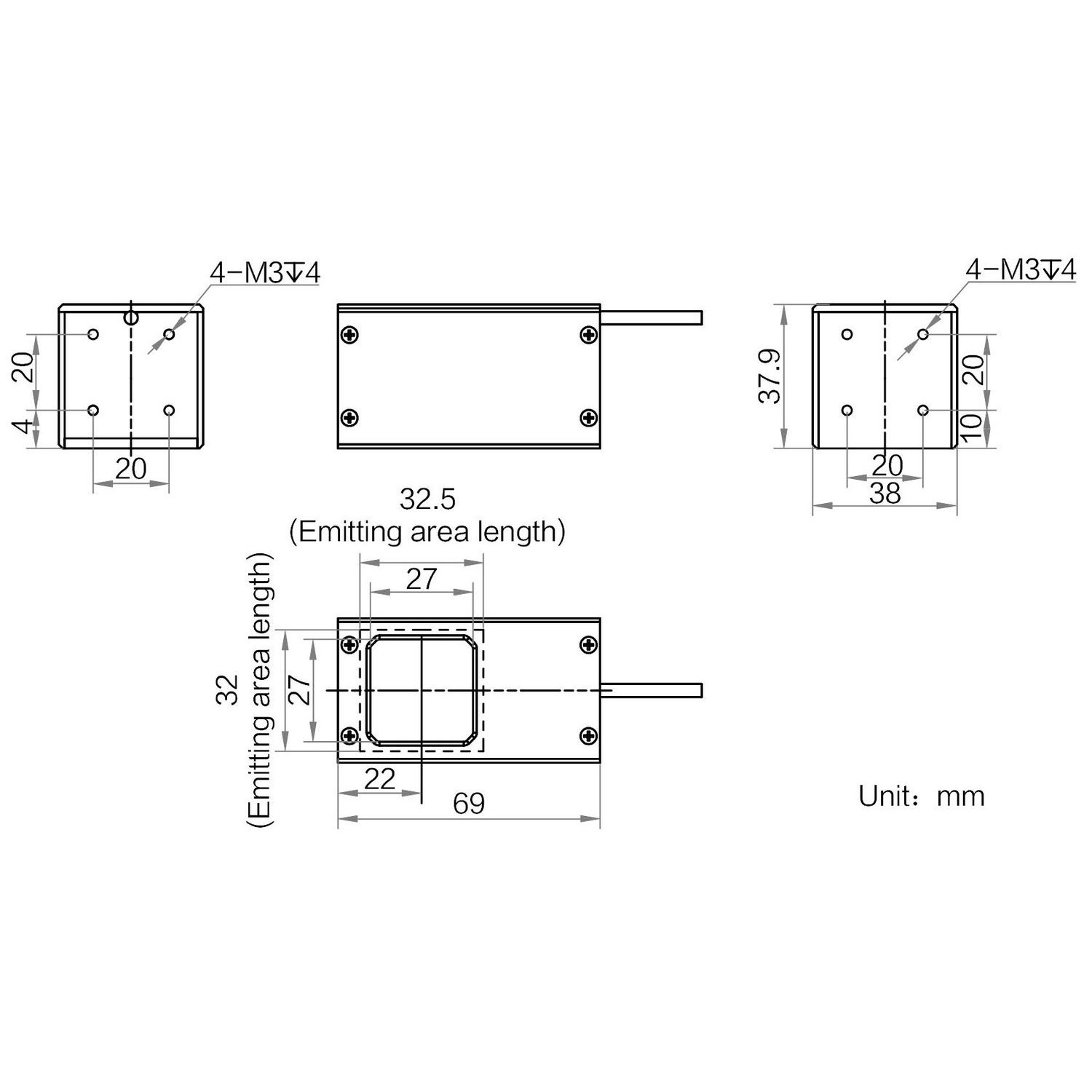

MechanicalDimension69 mm × 37.9 mm × 38 mm
Emitting area dimensions32.5 mm × 32 mm
Weight132 g
Cable length1 m
Cooling modeNaturual cooling
TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F)Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)
Humidity20% to 90%RH, non-condensing
Diffuse plate includedIncluded
