HIKROBOT Light Source, Coaxial Type

Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.

Product Downloads:

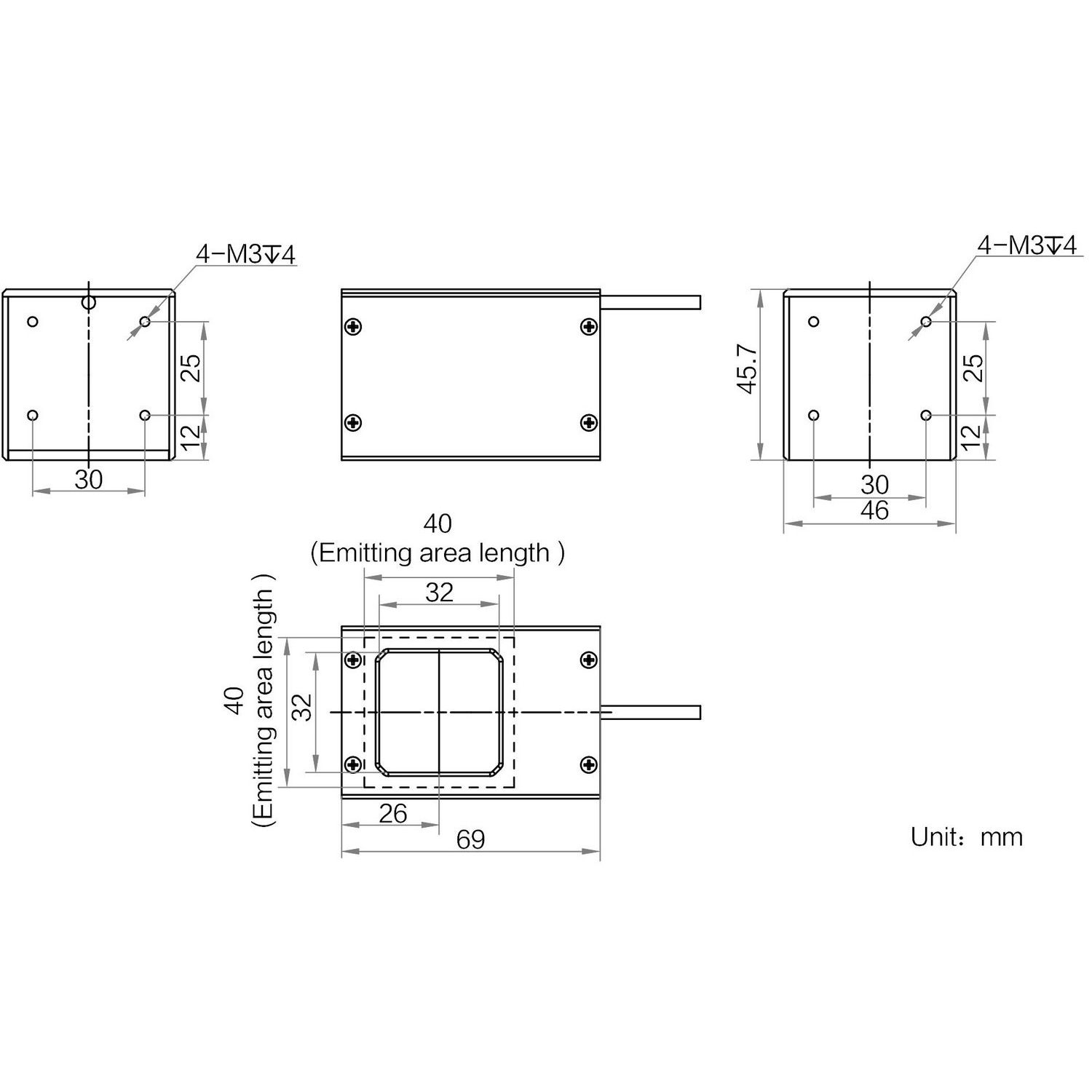

Data Sheet Drawing

Compare

Special spectroscope design, improve lighting efficiency.
Efficient heat dissipation, extended service life.

Model	Product Model	MV-LCDS-H-40-40-W
Model	Type	Coaxial lighting，40*40，white color
Performance	Color	White
	Color temperature	6000 ~ 7000K
	Wavelength	/
Electrical feature	Power consumption	5.4 W
Electrical feature	Connector type	SMR-03V-B
Mechanical	Dimension	69 mm × 45.7 mm × 46 mm
	Emitting area dimensions	40 mm × 40 mm
	Weight	167 g
	Cable length	1 m
	Cooling mode	Naturual cooling
	Temperature	Working temperature: 0 °C to 40 °C (32 °F to 104 °F)Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)
	Humidity	20% to 90%RH, non-condensing
	Diffuse plate included	Included

MV-LCDS-H-40-40-W
