HIKROBOT Light Source, Coaxial Type, Infra-red

Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.

Product Downloads:

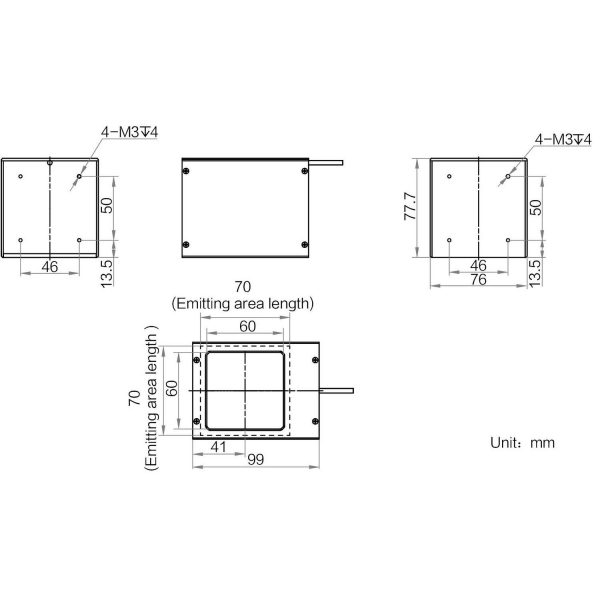

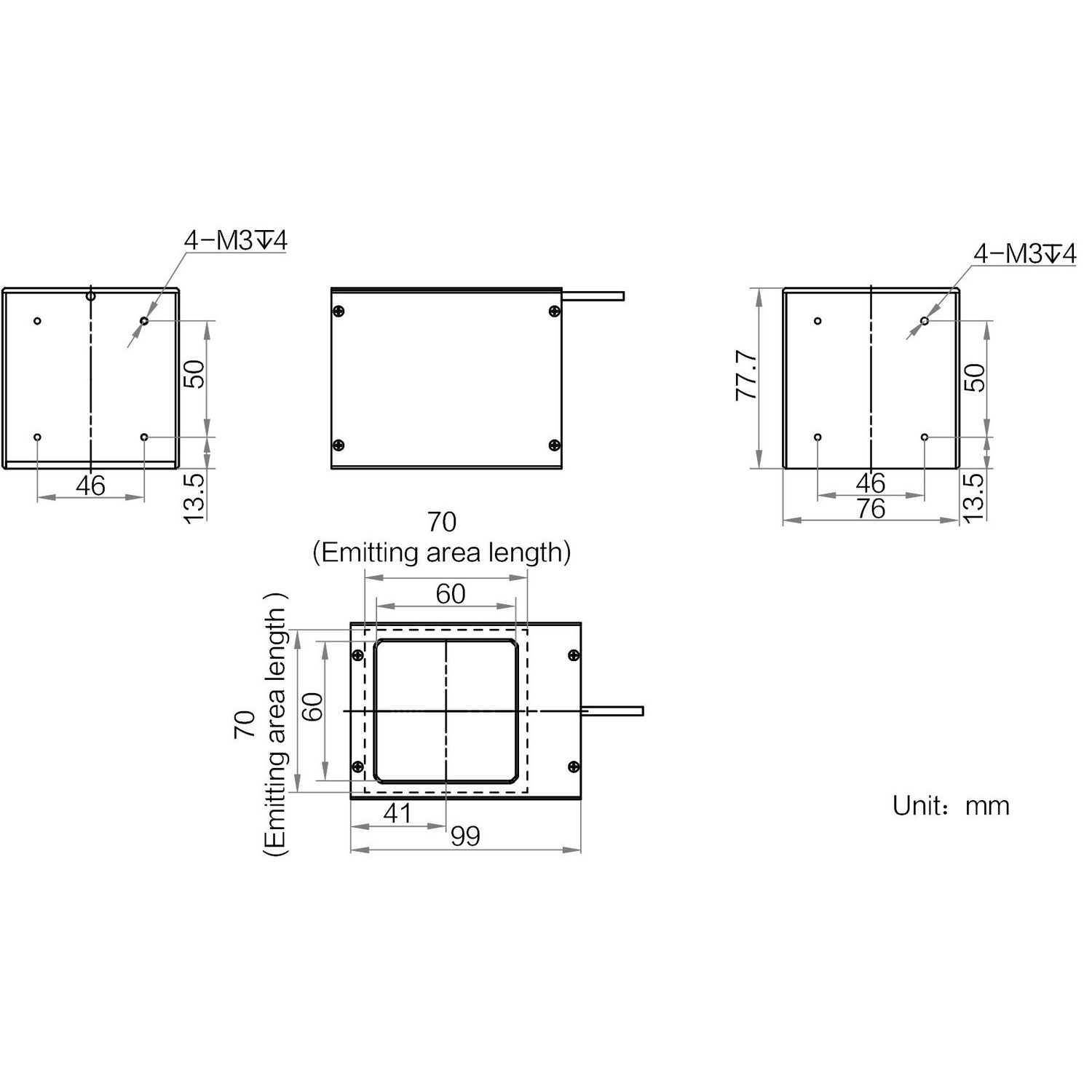

Data Sheet Drawing

Compare

Special spectroscope design, improve lighting efficiency.
Efficient heat dissipation, extended service life.

Model	Product Model	MV-LCDS-H-70-70-IR850
Model	Type	Coaxial lighting，70*70，IR850
Performance	Color	Infrared
	Color temperature	/
	Wavelength	850 nm
Electrical feature	Power consumption	12.6 W
Electrical feature	Connector type	SMR-03V-B
Mechanical	Dimension	99 mm × 77.7 mm × 76 mm
	Emitting area dimensions	70 mm × 70 mm
	Weight	417 g
	Cable length	1 m
	Cooling mode	Naturual cooling
	Temperature	Working temperature: 0 °C to 40 °C (32 °F to 104 °F)Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)
	Humidity	20% to 90%RH, non-condensing
	Diffuse plate included	Included

MV-LCDS-H-70-70-IR850
