- High-power LED, high brightness
- One-piece aluminum alloy molding, efficient heat dissipation
- Compatible with mainstream telecentric lenses on the market, and can also be customized in non-standard sizes
MV-LDSS-8-3-B
HIKROBOT Light Source, Spot Type
HIKROBOT Light Source, Spot Type
Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.
Product Downloads:
| Model | Model | MV-LDSS-8-3-B |
| Name | Point light source MV-LDSS-8-3-B | |
| Performance | Color | Blue |
| Wavelength | 465 nm | |
| Color temperature | / | |
| Electrical characteristics | Interface type | SMR-03V-B |
| Power | 2.8 W | |
| Structure | Power line length | 500 mm |

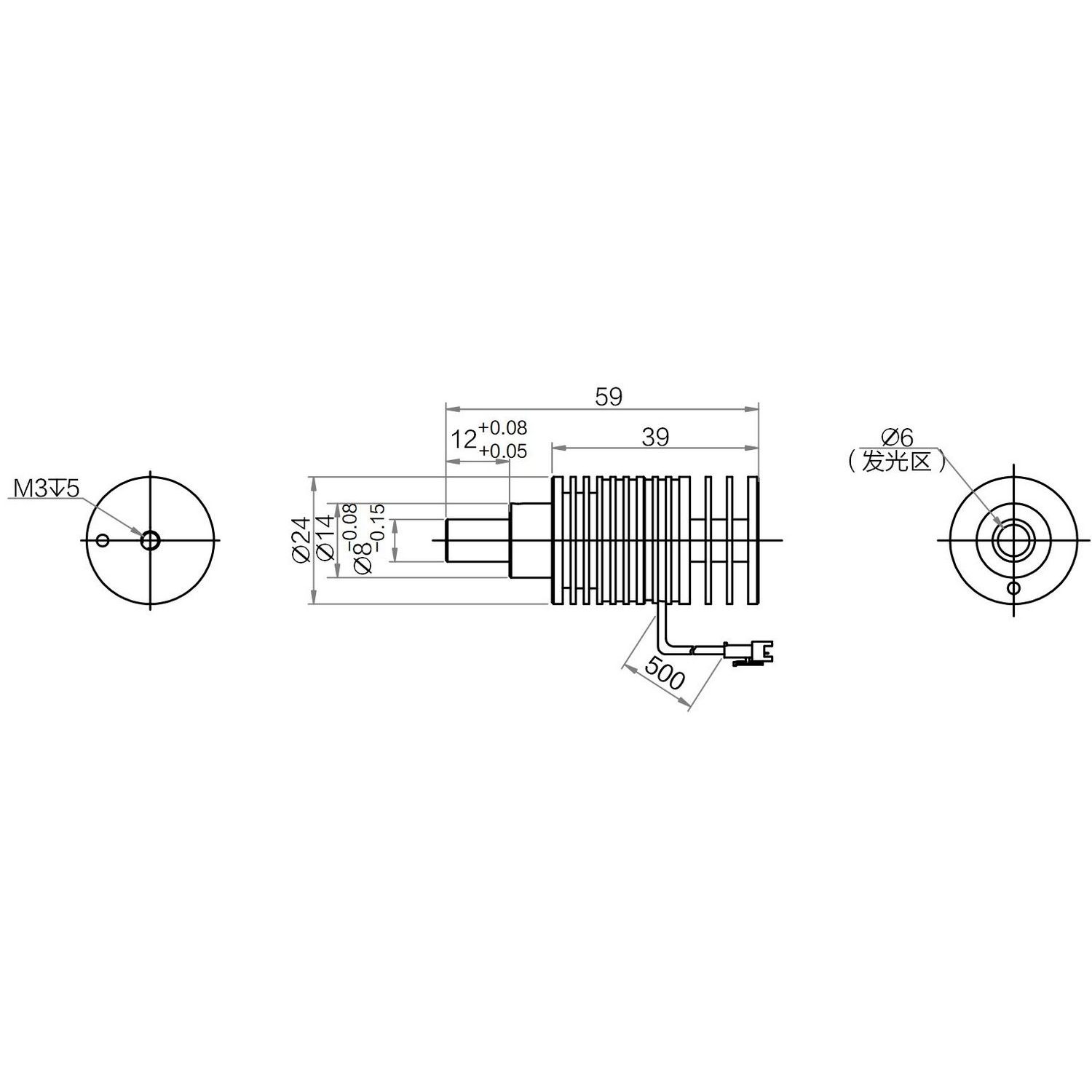

| Dimensions | Ø24 mm × 59 mm | |
| Diameter | Ø24 mm | |
| Outer diameter of luminous surface | Ø6 mm | |
| Temperature | Operating temperature 0 ~ 40°C, storage temperature -20 ~ 60°C | |
| Humidity | 20 ~ 85%RH non-condensing | |
| Diffuser | Standard |
