- The light outlet adopts special light guide column, brightness concentration.
- Compact size,high heat dissipation type structural design.
- Can be matched with telecentric series lenses.
MV-LDSS-H-8-3-R
HIKROBOT Light Source, Spot Type
HIKROBOT Light Source, Spot Type
Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.
Product Downloads:
| Model | Product Model | MV-LDSS-H-8-3-R |
| Type | Dot lighting，standard，red | |
| Performance | Color | Red |
| Center illuminance | > 7K lux@WD=100 mm | |
| Best working distance | 65 ~ 200 mm | |
| Wavelength | 620 ~ 630 nm | |
| Color temperature | / | |
| Electrical feature | Power consumption | 1.7 W |
| Connector type | SMR-03V-B | |

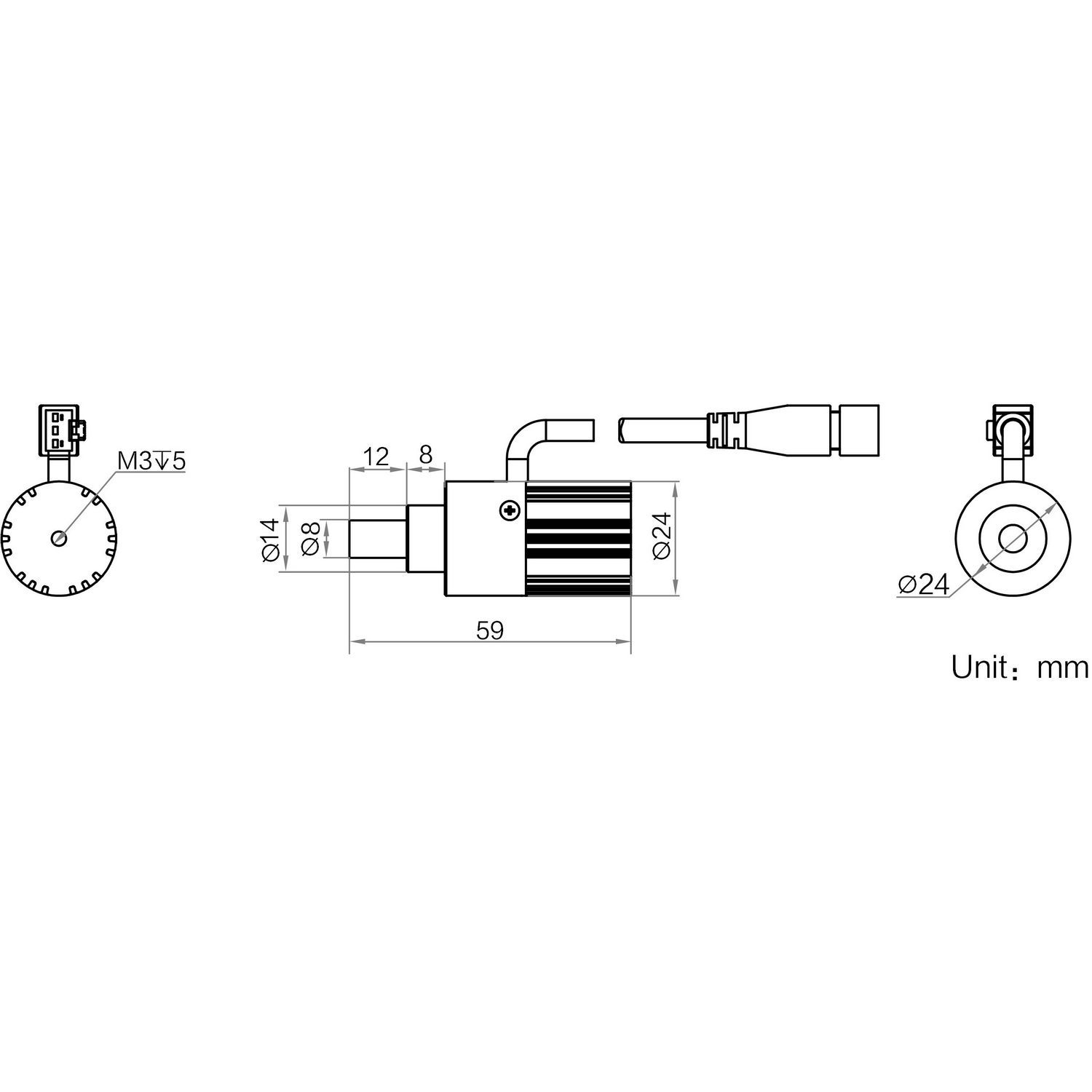

| Mechanical | Dimension | 59 mm × Ø24 mm |
| Optical outlet diameter | Ø 8 mm | |
| Weight | 75 g | |
| Cable length | 1 m | |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F) | |
| Humidity | 20% to 90ziramn %RH, non-condensing |
