- Adopts constant voltage control and supports infinitely variable brightness.
- Adopts knob control on control panel, and plug and play.
- Provides multichannel opto-isolated inputs.
- Supports installation via slide rail or screw hole.
- Supports overcurrent, overload, short circuit protection.

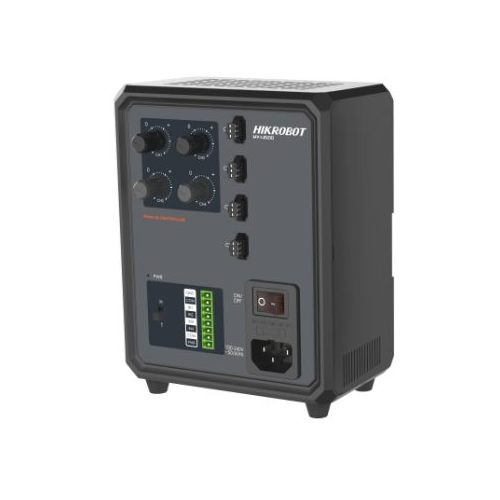

MV-LE100-120W24-4D
HIKROBOT Light Controller, Digital controller, constant current, Input: 220VAC, Output: 200W/48VDC, Channels: 2, RJ45, DB9F
HIKROBOT Light Controller, Digital controller, constant current, Input: 220VAC, Output: 200W/48VDC, Channels: 2, RJ45, DB9F
Hikrobot MV-LE series light controllers cover MV-LE100 analog constant voltage series, MV-LE200 digital constant voltage series and MV-LE201 digital constant current series by now with brand new family style design, stable and reliable performance, compatible with all light source product series.
The analog series support knob stepless dimming, helping users to achieve rapid deployment; The digital series support precise button dimming, can also flexibly configure parameters through the communication interfaces; Support Always-On & Trigger mode; Equipped with unique “Timer” linkage function, can flexibly realize multi-optical signal synchronization linkage.
Support various parameter configuration methods: panel/serial port/network port Provide demo tools (no installation needed), no need for users to query the controller communication protocol; Support MVS/SDK integration, highly match the development habits of industrial cameras, can reduce the complexity of secondary development.
| Model | Product Model | MV-LE100-120W24-4D |
| Type | Analog Light Controller，4 channel，120W/24V | |
| Performance | Drive mode | Analog, constant voltage |
| Lighting mode | Continued, trigger | |
| Channel | 4-channel | |
| Dimming mode | Control panel (knob) | |
| Lighting response time | < 100 μs | |
| Trigger mode | External trigger | |
| Applicable product | Ring lighting, bar lighting, flat lighting, coaxial lighting, etc. | |
| Electrical feature | Input voltage | 100 VAC to 240 VAC, 50 Hz/60 Hz |
| Input current | 2.1 A (115 VAC), 1.2 A (230 VAC) | |
| Output voltage | 24 VDC | |
| Output current | Max. 5 A | |
| Output power | Max. 120 W | |
| Output current for each channel | Max. 3 A | |
| Trigger in | High level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC | |
| Mechanical | Power supply interface | C13 220 VAC interface |
| Digital I/O | Opto-isolated input × 4 | |
| Lighting output connector | SMR-03V-BC | |

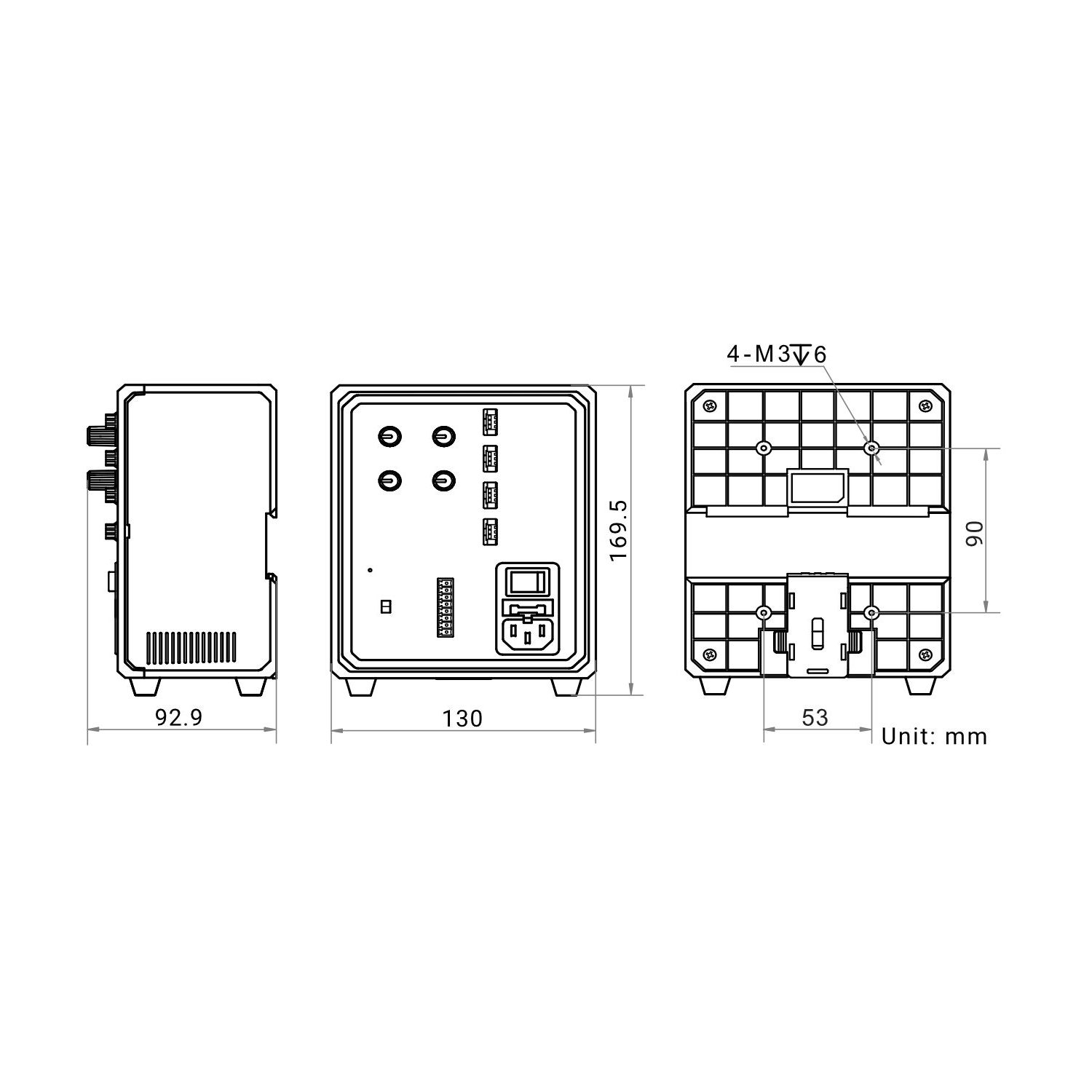

| Dimension | 130 mm × 92.9 mm × 169.5 mm (5.1" × 3.7" × 6.7") | |
| Shell material | Plastic | |
| Weight | Approx. 795 g (1.8 lb.) | |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F)Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F) | |
| Humidity | 20% to 85% RH, non-condensing | |
| Ingress protection | IP30 | |
| Cooling mode | Fan cooling | |
| General | Certification | CE, KC |
