MV-LLAS-112-W

HIKROBOT Light Source, Bar Type

8.8W, 112x112x36mm, 6000 ~ 7000K, Bar, White

HIKROBOT Light Source, Bar Type

Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.

Product Downloads:

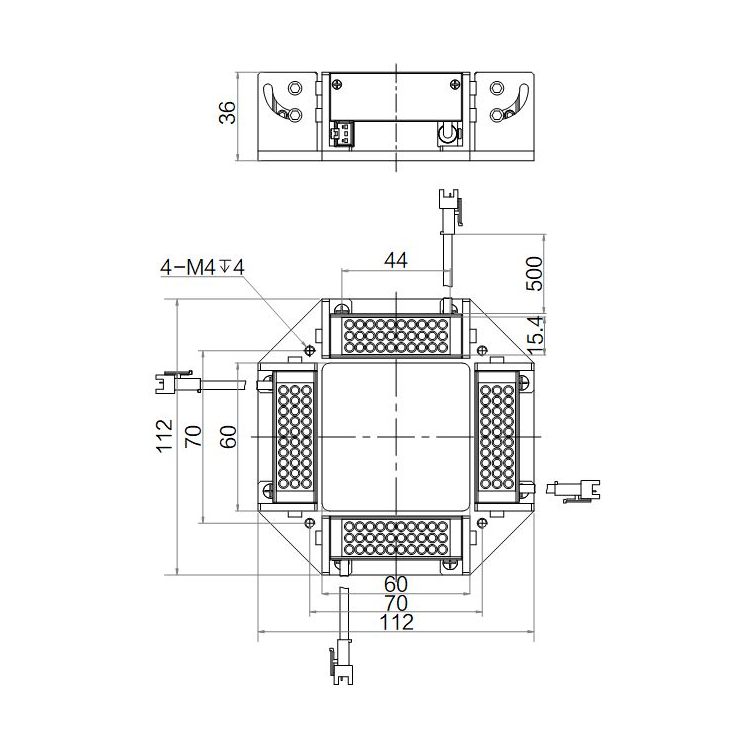

Data SheetDrawing

Compare
  • Flexible angle adjustment to achieve the best light effect
  • Brightness can be unified or controlled separately

ModelModelMV-LLAS-112-W
NameCombined bar light source MV-LLAS-112-W
PerformanceColorWhite
Color temperature6000~7000K
Irradiation angle0~90°(single bar light)
Electrical characteristicsInterface typeSMR-03V-B
Power8.8 W
StructureLED Rows3
Power supply line length500 mm
Dimensions112 mm × 112 mm × 36 mm
TemperatureOperating temperature 0~40°C, storage temperature -20~60°C
Humidity20~85%RH non-condensing
DiffuserIncluded
