MV-LLDS-102-18-B

HIKROBOT Light Source, Bar Type

2.4W, 102x18x27mm, Area 90x12mm, Bar, LED Rows: 2, Blue

HIKROBOT Light Source, Bar Type

Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.

Compare
  • Aluminum alloy one-piece design, good heat dissipation
  • Multiple installation methods, both ends and back
  • High-quality LED, high brightness

ModelModelMV-LLDS-102-18-B
NameBar light source MV-LLDS-102-18-B
PerformanceColorBlue
Wavelength/
Color temperature/
Electrical characteristicsInterface typeSMR-03V-B
Power2.4 W
StructureLED Rows2
Length of power supply line500 mm

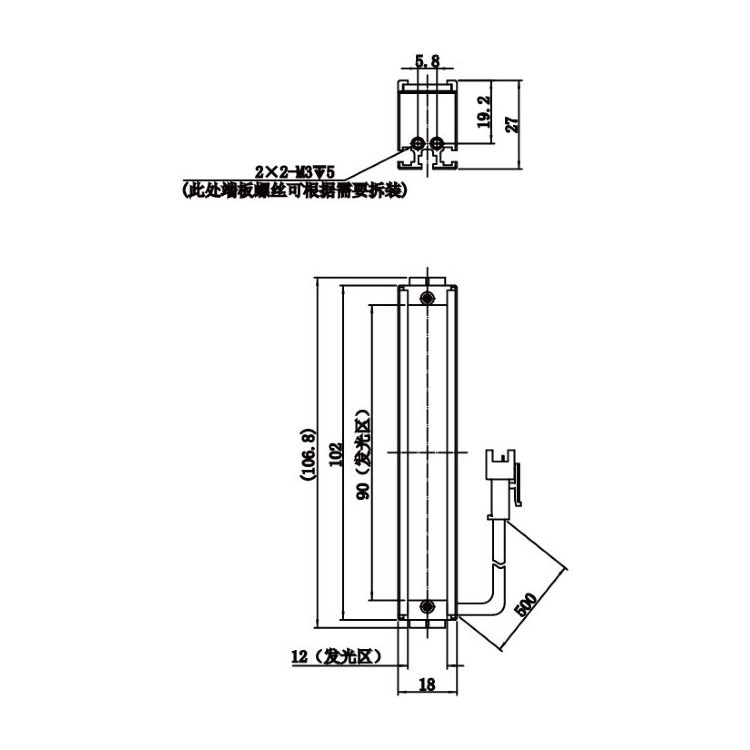

Dimensions102 mm × 18 mm × 27 mm
Diameter of luminous area90 mm × 12 mm
TemperatureWorking temperature 0~40°C, storage temperature -20~60°C
Humidity20~85%RH without condensation
DiffuserIncluded
