- The irradiation direction and angle can be adjusted freely.
- Support multi-side installation.
- High quality LED particles, stable lighting and high brightness.
MV-LLDS-H-150-40-IR850
HIKROBOT Light Source, Bar Type, Infra-red
HIKROBOT Light Source, Bar Type, Infra-red
Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.
Product Downloads:
| Model | Product Model | MV-LLDS-H-150-40-IR850 |
| Type | MV-LLDS-H-150-40-IR850 | |
| Performance | Color | IR850 |
| Best working distance | 30 ~ 500 mm | |
| Wavelength | 850 nm | |
| Color temperature | W: 6000K to 7500K | |
| Electrical feature | Power | 12.7 W |
| Connector type | SMR-03V-B | |

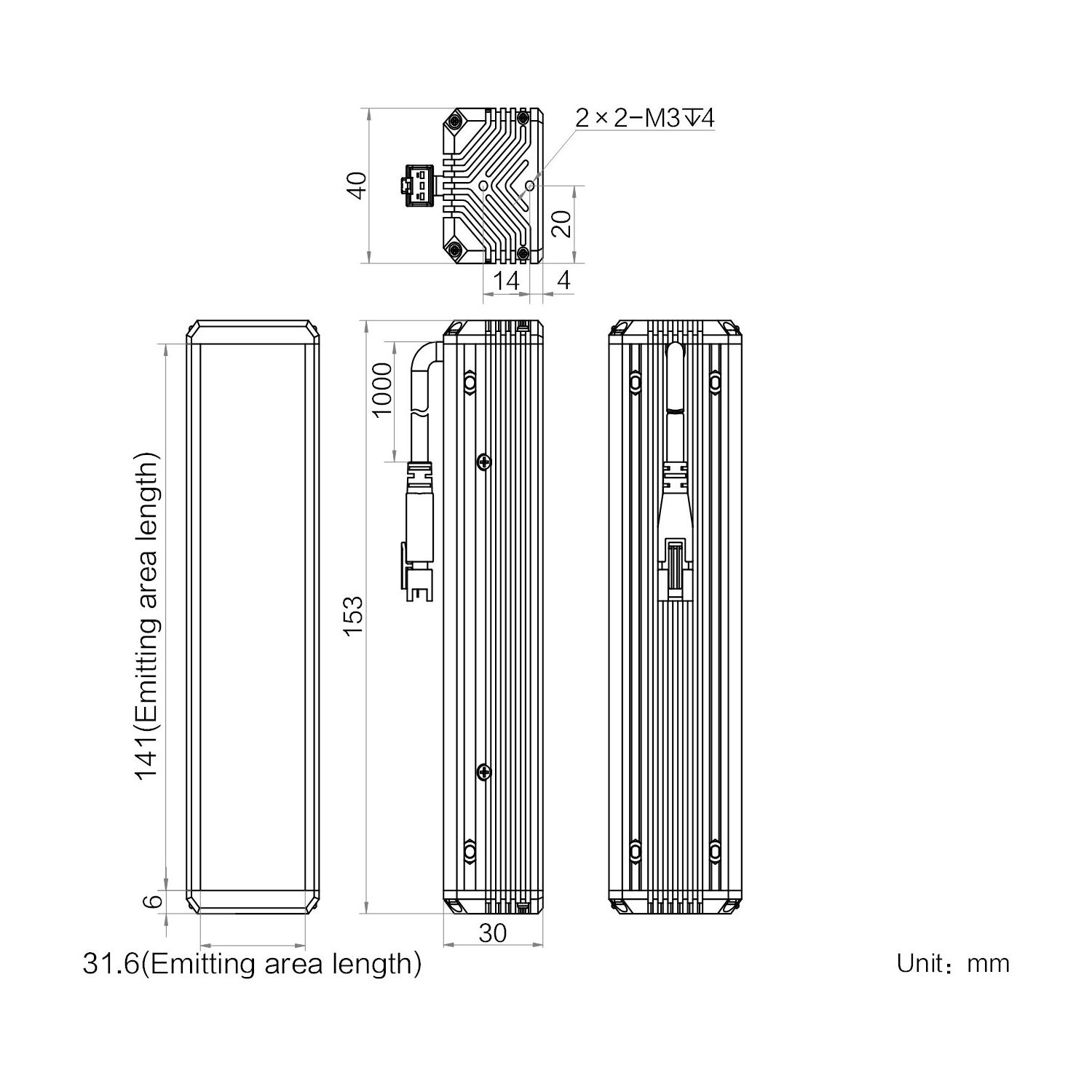

| Mechanical | Dimension | 153 mm × 40 mm × 30 mm |
| Emitting area dimension | 141 mm × 31.6 mm | |
| LED rows | 6 | |
| Weight | 0.32 kg | |
| Cable length | 1 m | |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F)Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) | |
| Humidity | 20% RH to 90% RH (no condensation) | |
| Diffuse plate included | PMMA |
