MV-LLDS-H-800-40-R

HIKROBOT Light Source, Bar Type

47.8W, 6000 ~ 7500K, 738x40x30mm, Area 726x21.6mm, Bar, LED Rows: 6, Red

HIKROBOT Light Source, Bar Type

Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.

Product Downloads:

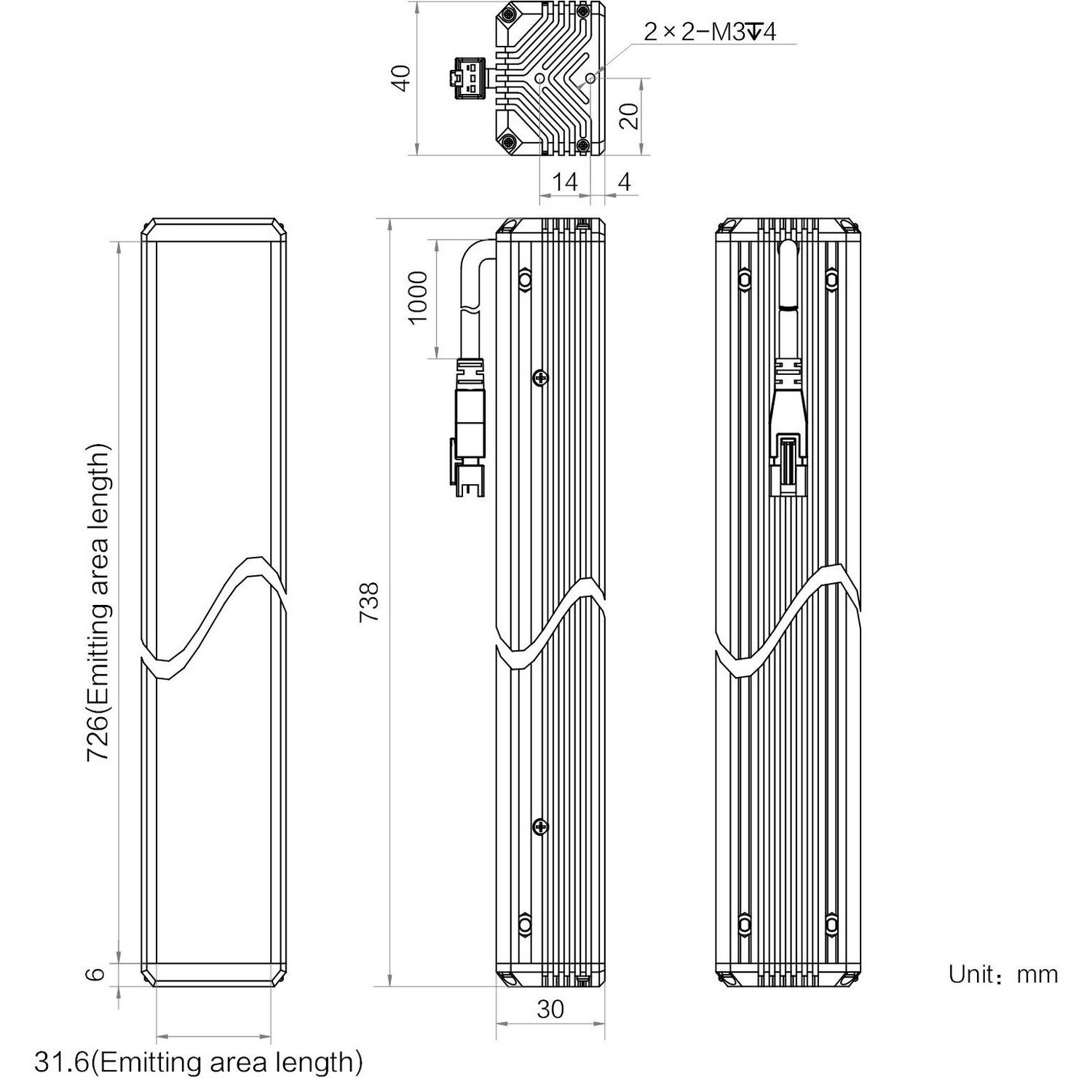

Data SheetDrawing

Compare
  • The irradiation direction and angle can be adjusted freely.
  • Support multi-side installation.
  • High quality LED particles, stable lighting and high brightness.

ModelProduct ModelMV-LLDS-H-800-40-R
TypeMV-LLDS-H-800-40-R
PerformanceColorRed
Best working distance30 ~ 500 mm
Wavelength625 nm
Color temperatureW: 6000K to 7500K
Electrical featurePower47.8 W
Connector typeSMR-03V-B
MechanicalDimension738 mm × 40 mm × 30 mm
Emitting area dimension726 mm × 31.6 mm
LED rows6
Weight1.43 kg
Cable length1 m
TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F)Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% RH to 90% RH (no condensation)
Diffuse plate includedPMMA
