MV-LRDS-120-70-IR940

HIKROBOT Light Source, Ring Type

15.0W, Angle 70°, Bore Ø 65, LED Rows: 4, Outer: Ø120*24, Ring, IR940

HIKROBOT Light Source, Ring Type

Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.

Compare
  • Simple structure, compact, easy to install
  • Various angles, flexible size
  • High quality LED, stable light and high brightness

ModelModelMV-LRDS-120-70-IR940
NameRing light source MV-LRDS-120-70-IR940
PerformanceColorIR940
Wavelength
Color temperature/
Irradiation angle70°
Electrical characteristicsInterface typeSMR-03V-B
Power15 W
StructureLED Rows4
Length of power supply line500 mm

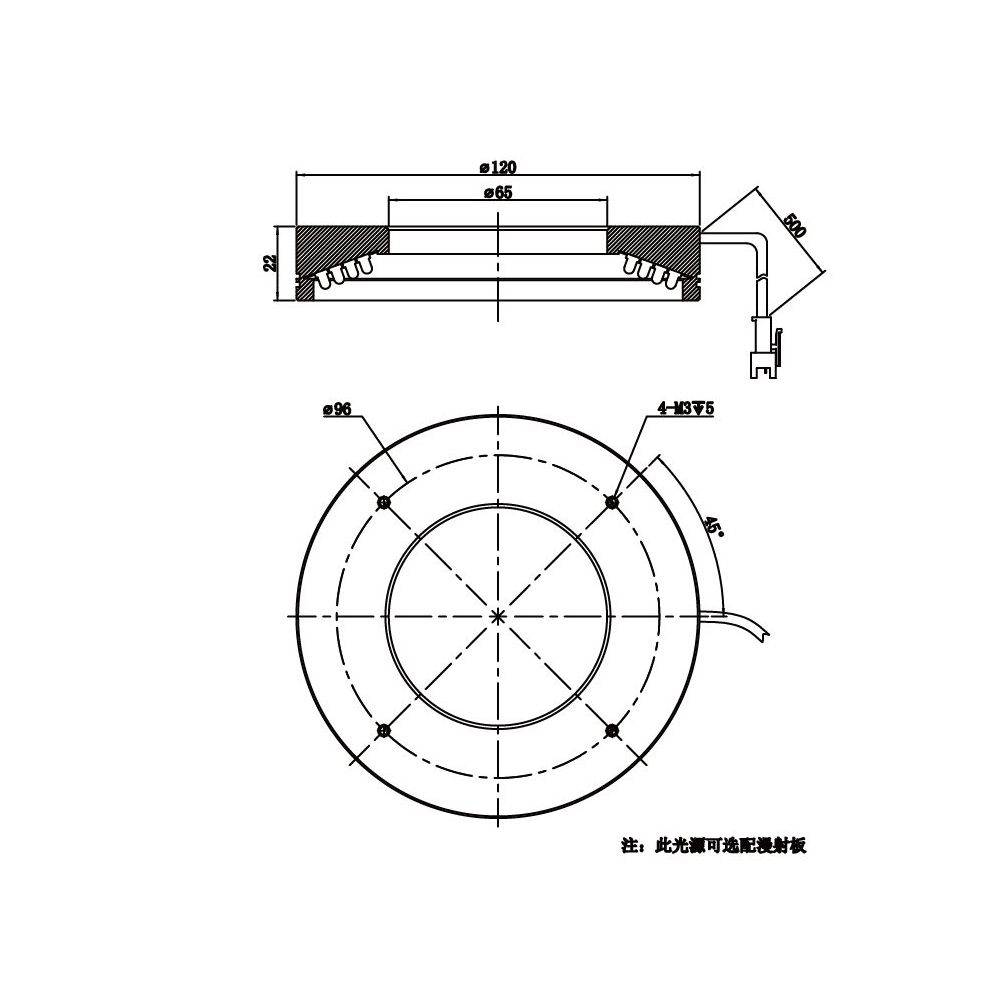

DimensionsØ120 × 24 mm
DiameterØ120 mm
ApertureØ65 mm
TemperatureWorking temperature 0~40°C, storage temperature -20~60°C
Humidity20~85%RH without condensation
DiffuserIncluded
