MV-LRDS-150-60-W

HIKROBOT Light Source, Ring Type

21.6W, 6000 ~ 7000K, Angle 60°, Bore Ø 90, LED Rows: 5, Outer: Ø 150*24, Ring, White

HIKROBOT Light Source, Ring Type

Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.

Product Downloads:

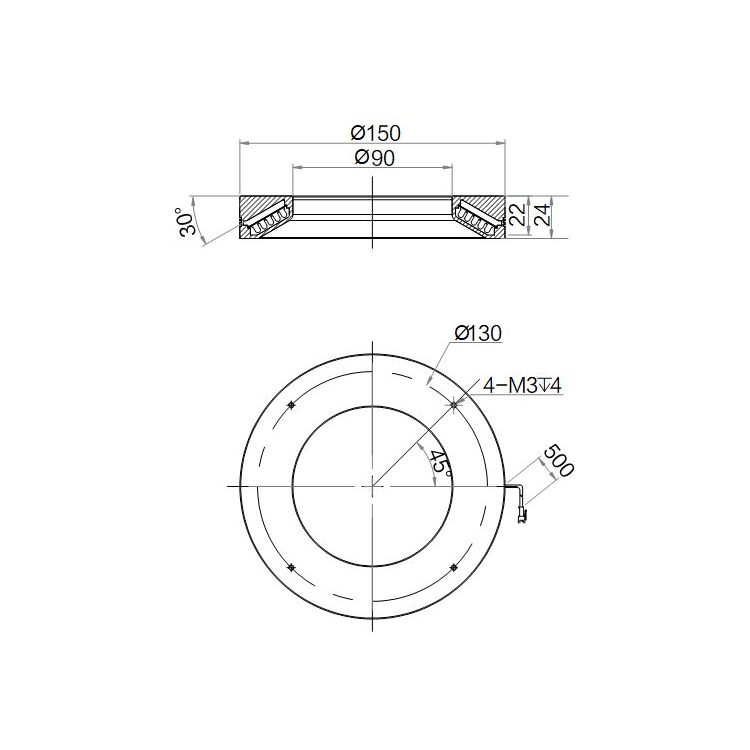

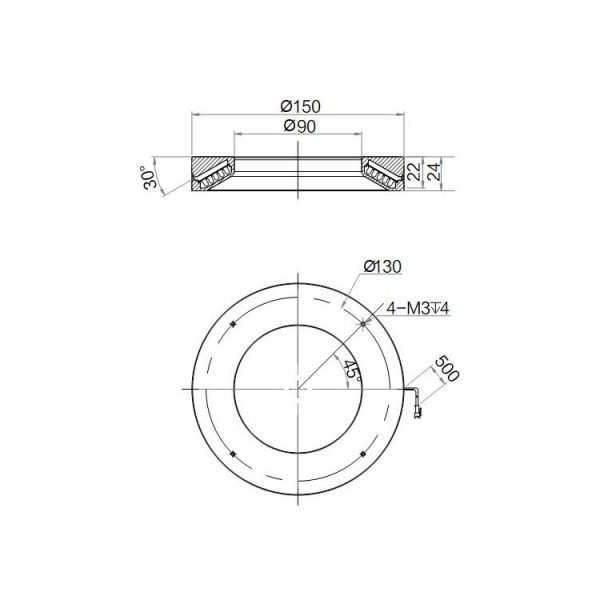

DrawingData Sheet

Compare
  • Simple structure, compact, easy to install
  • Various angles, flexible size
  • High quality LED, stable light and high brightness

ModelModelMV-LRDS-150-60-W
NameRing light source MV-LRDS-150-60-W
PerformanceColorWhite
Wavelength/
Color temperature6000~7000K
Irradiation angle60°
Electrical characteristicsInterface typeSMR-03V-B
Power21.6 W
StructureLED Rows5
Length of power supply line500 mm
DimensionsØ150 × 24 mm
Outer diameterØ150 mm
Opening apertureØ90 mm
TemperatureWorking temperature 0~40°C, storage temperature -20~60°C
Humidity20~85%RH non-condensing
DiffuserIncluded
