MV-LRDS-73-90-IR940

HIKROBOT Light Source, Ring Type, Infra-red

6.0W, 940nm, Angle 90°, Bore Ø 36, LED Rows: 3, Outer: Ø 73*17.5, Ring, IR940

HIKROBOT Light Source, Ring Type, Infra-red

Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.

Product Downloads:

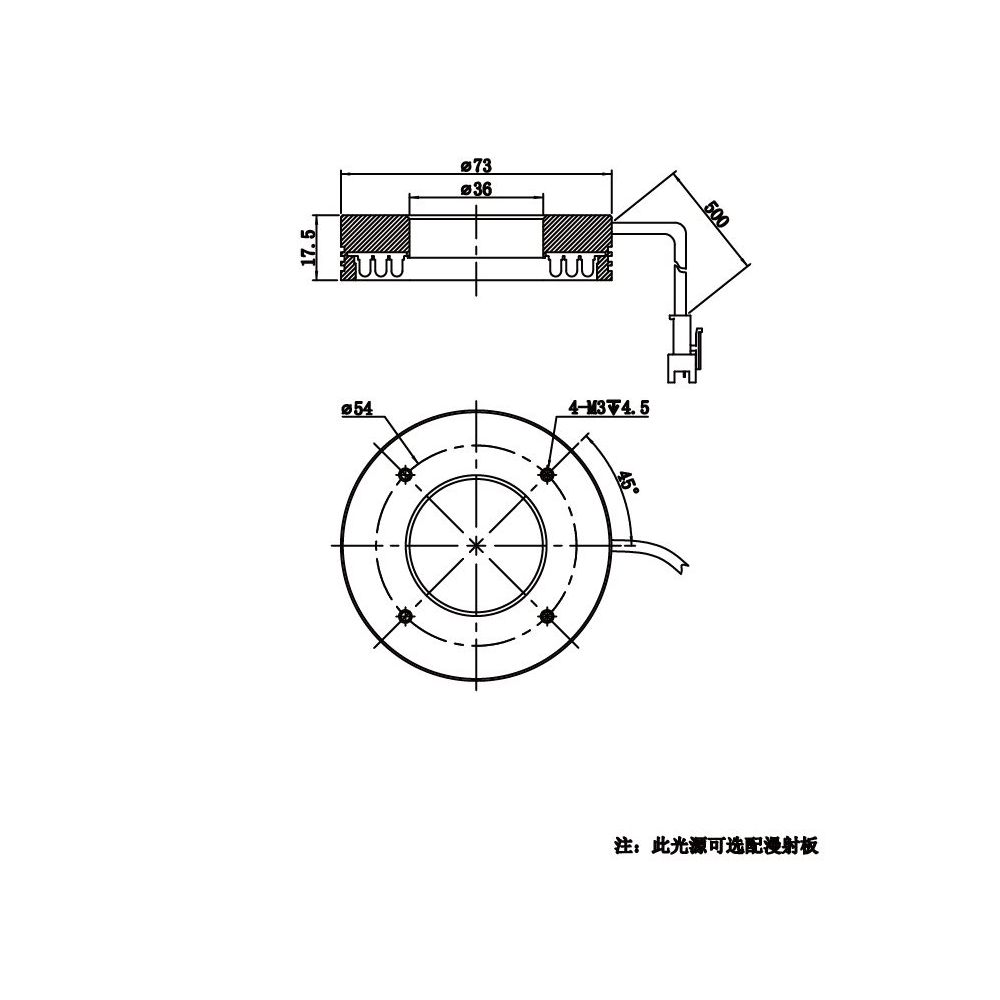

DrawingData Sheet

Compare
  • Simple structure, compact, easy to install
  • Various angles, flexible size
  • High quality LED, stable light and high brightness

ModelModelMV-LRDS-73-90-IR940
NameRing light source MV-LRDS-73-90-IR940
PerformanceColorInfrared
Wavelength940 nm
Color temperature/
Illumination angle90°
Electrical characteristicsInterface typeSMR-03V-B
Power6.0 W
StructureLED Rows3
Length of power supply line500 mm
DimensionsØ73 × 17.5 mm
Outer diameterØ73 mm
Opening apertureØ36 mm
TemperatureWorking temperature 0~40°C, storage temperature -20~60°C
Humidity20~85%RH non-condensing
DiffuserIncluded
