- Structure Simple structure, compact, easy to install
- Various angles, flexible size
- High quality LED, stable light emission and high brightness
MV-LRDS-74-60-W
HIKROBOT Light Source, Ring Type
HIKROBOT Light Source, Ring Type
Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.
Product Downloads:
| Model | Model | MV-LRDS-74-60-W |
| Name | Ring light source MV-LRDS-74-60-W | |
| Performance | Color | White |
| Wavelength | / | |
| Color temperature | 6000~7000K | |
| Irradiation angle | 60° | |
| Electrical characteristics | Interface type | SMR-03V-B |
| Power | 7.8 W | |
| Structure | LED Rows | 3 |
| Length of power supply line | 500 mm | |

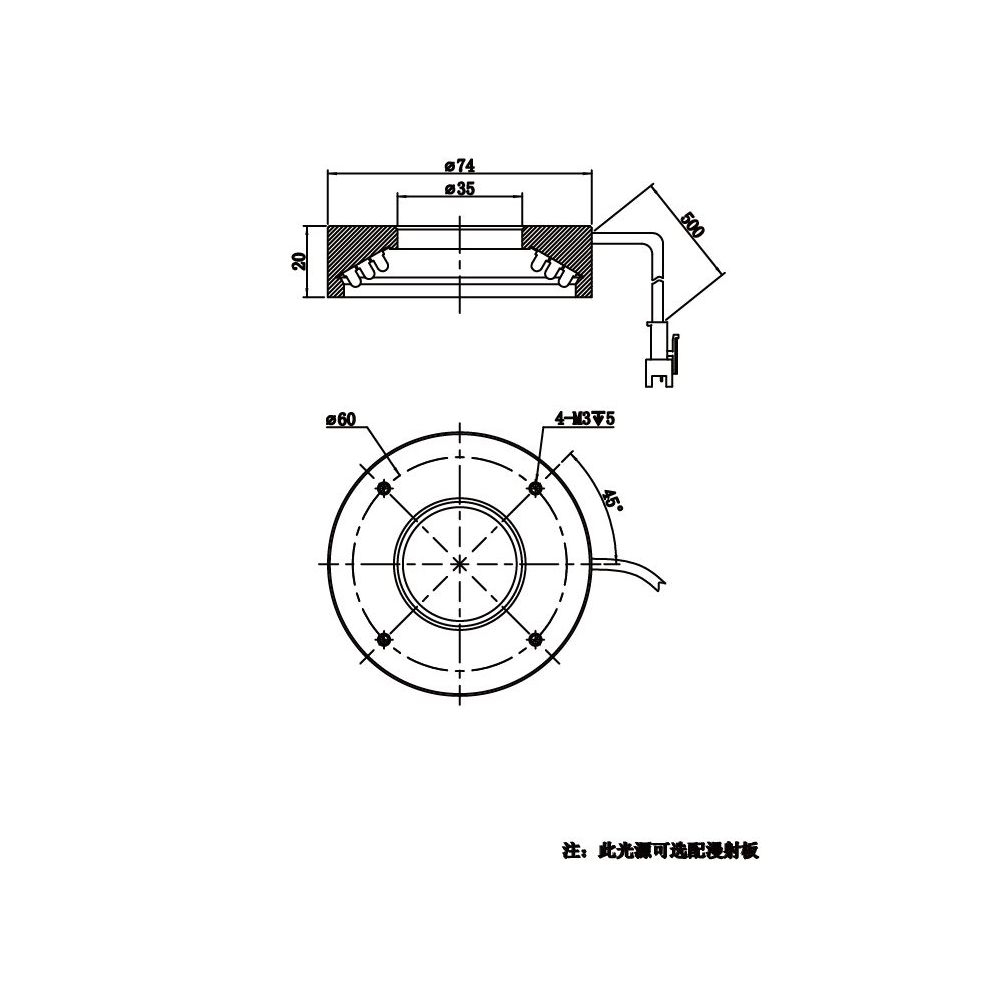

| Dimensions | Ø74 × 20 mm | |
| Outer diameter | Ø74 mm | |
| Opening aperture | Ø35 mm | |
| Temperature | Working temperature 0~40°C, storage temperature -20~60°C | |
| Humidity | 20~85%RH non-condensing | |
| Diffuser | Included |
