- Provides a variety of lengths to meet the installation methods of different distances of light sources
- Provides a variety of light source interfaces to adapt to various light source interface types

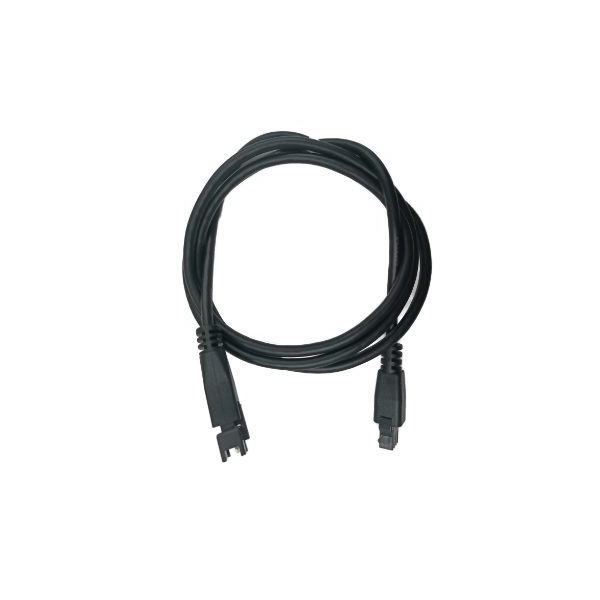

MV-LW-020-1-S
HIKROBOT Light Source extension cable, SMR-03V-B to SMR-03V-BC, 20m
HIKROBOT Light Source extension cable, SMR-03V-B to SMR-03V-BC, 20m
Hikrobot provides high-quality cable products including power line, I/O control line, data transmission line to fulfill diverse application needs.
The cables’ length covers 0.5 m – 80 m to meet requirements in different scenarios. Even at the maximum length, the data transmission maintains high stability. Some cables also have motion performance, support the application scenes of moving drag chains.
| Model | Model | MV-LW-020-1-S |
| Name | Light source extension cable, 1 to 1, 20m, SMR-03V-B interface | |
| Physical specifications | Number of channels | 1 |
| A-end interface | SMR-03V-BC | |
| B-end interface | SMR-03V-B | |
| Length | 15 m | |
| Wire harness diameter | φ4 mm | |
| Cable Material | PVC | |
| ±90°Bending Cycles | 5 million times | |
| Minimum Bending Radius | 48 mm | |
| Maximum Plug-In Times | 20,000 times | |
| Cable Flammability Grade | 3 A | |
| Electrical Specifications | Insulation Characteristics | ≥ 10 MΩ |
| Withstand Voltage | 300 | |
| Structure | Temperature | Working Temperature -20 ~ 40°C, Storage Temperature -20 ~ 60°C |
| Humidity | 20% ~ 85%RH | |
| IP protection level | IP30 (when properly installed) | |
| General specifications | Certification | RoHS |
