- Various connector types, suitable for various machine vision lighting interfaces.
- Various lengths can be selected, to meet the erection mode of different distances of the lighting(it should be noted that there is a risk of voltage drop under 30 m distance).

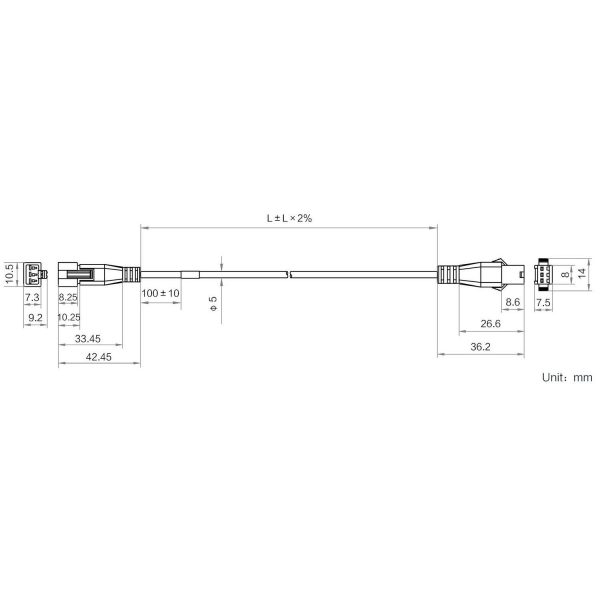

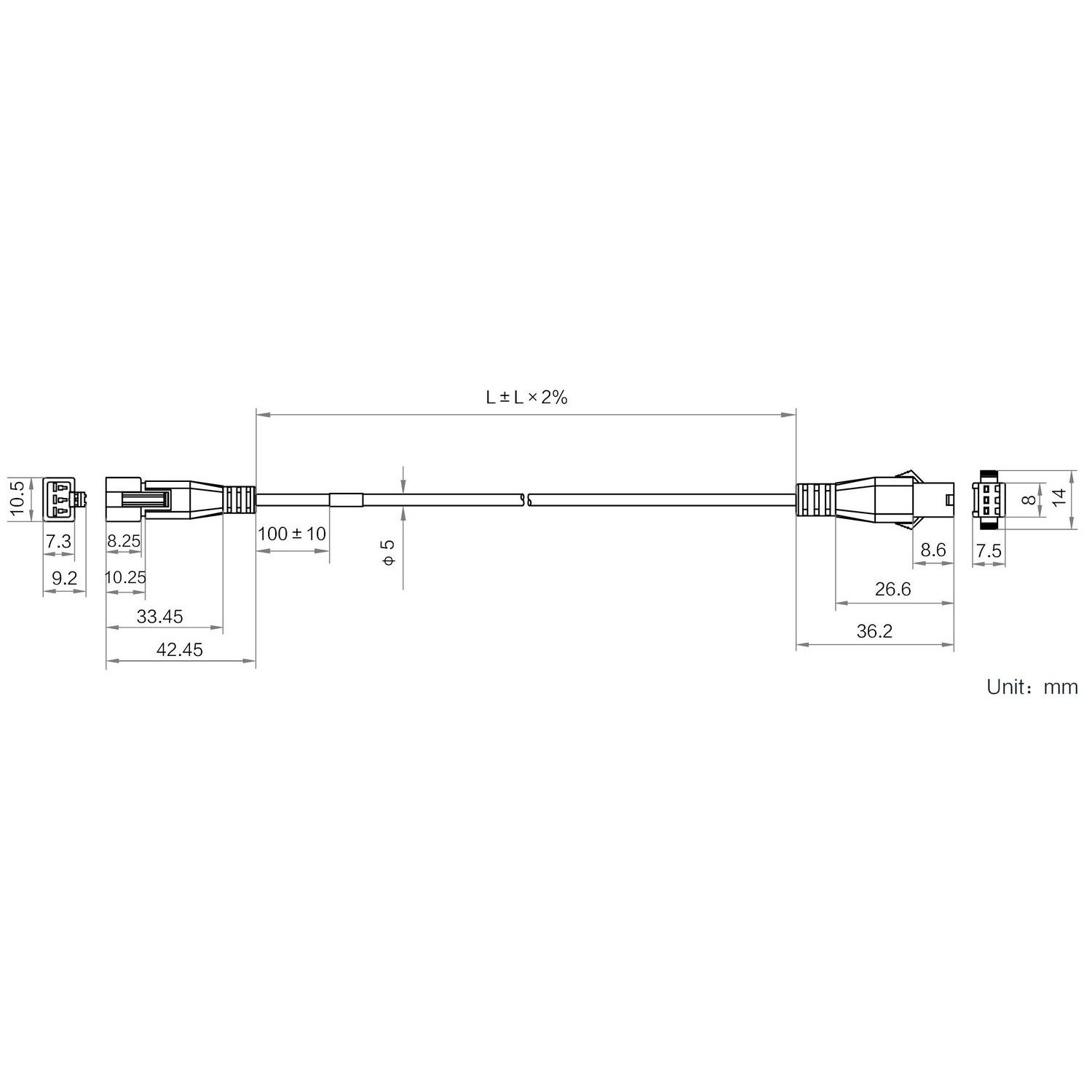

MV-LW-H-007-1-S
HIKROBOT Light Source extension cable, SMR-03V-B to SMR-03V-BC highflex, 7m
HIKROBOT Light Source extension cable, SMR-03V-B to SMR-03V-BC highflex, 7m
Hikrobot provides high-quality cable products including power line, I/O control line, data transmission line to fulfill diverse application needs.
The cables’ length covers 0.5 m – 80 m to meet requirements in different scenarios. Even at the maximum length, the data transmission maintains high stability. Some cables also have motion performance, support the application scenes of moving drag chains.
Product Downloads:
| Model | Product Model | MV-LW-H-007-1-S |
| Type | Cable,SMR-03V-B to SMR-03V-BC，highflex，7m | |
| Physical specification | Channel | 1 |
| End A connector | SMR-03V-B | |
| End B connector | SMR-03V-BC | |
| Length | 7 m | |
| Cable diameter | Φ5 mm | |
| Cable mechanical | 24AWG*3C | |
| Cable jacket | PVC | |
| Max. U-type bending cycles | 5 million times | |
| Min. bending radius | 40 mm | |
| Connector durability | 2000 times | |
| Flame resistance rating | VW-1 | |
| Electrical specification | Insulation | ≥ 20 MΩ/KM |
| Withstand voltage capability | 30 V | |
| Mechanical | Temperature | Working temperature: 0 °C to 80 °C (32 °F to 176 °F)Storage temperature: –20 °C to 80 °C (–4 °F to 176 °F) |
| Humidity | 20% RH to 90% RH (no condensation) | |
| Ingress protection | IP55（under correct installation） | |
| General | Certification | RoHS 2.0 |
