- Various connector types, suitable for various machine vision lighting interfaces.
- MV-LW-H-***-19M8A series model, it needs to be used with MV-LTDS-H series linescan lighting.
- Various lengths can be selected, to meet the erection mode of different distances of the lighting(it should be noted that there is a certain voltage drop under a long distance).

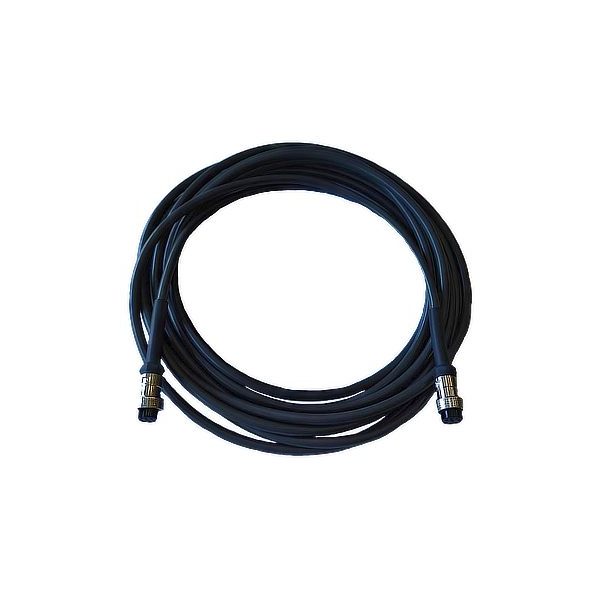

MV-LW-H-010-1-19M8A
HIKROBOT Light Source extension cable, 19M-8A to 19M-8A, 10m
HIKROBOT Light Source extension cable, 19M-8A to 19M-8A, 10m
Hikrobot provides high-quality cable products including power line, I/O control line, data transmission line to fulfill diverse application needs.
The cables’ length covers 0.5 m – 80 m to meet requirements in different scenarios. Even at the maximum length, the data transmission maintains high stability. Some cables also have motion performance, support the application scenes of moving drag chains.
Product Downloads:
| Model | Product Model | MV-LW-H-010-1-19M8A |
| Type | MV-LW-H-010-1-19M8A | |
| Physical specification | Channel | 1 |
| End A connector | 19M-8A | |
| End B connector | 19M-8A | |

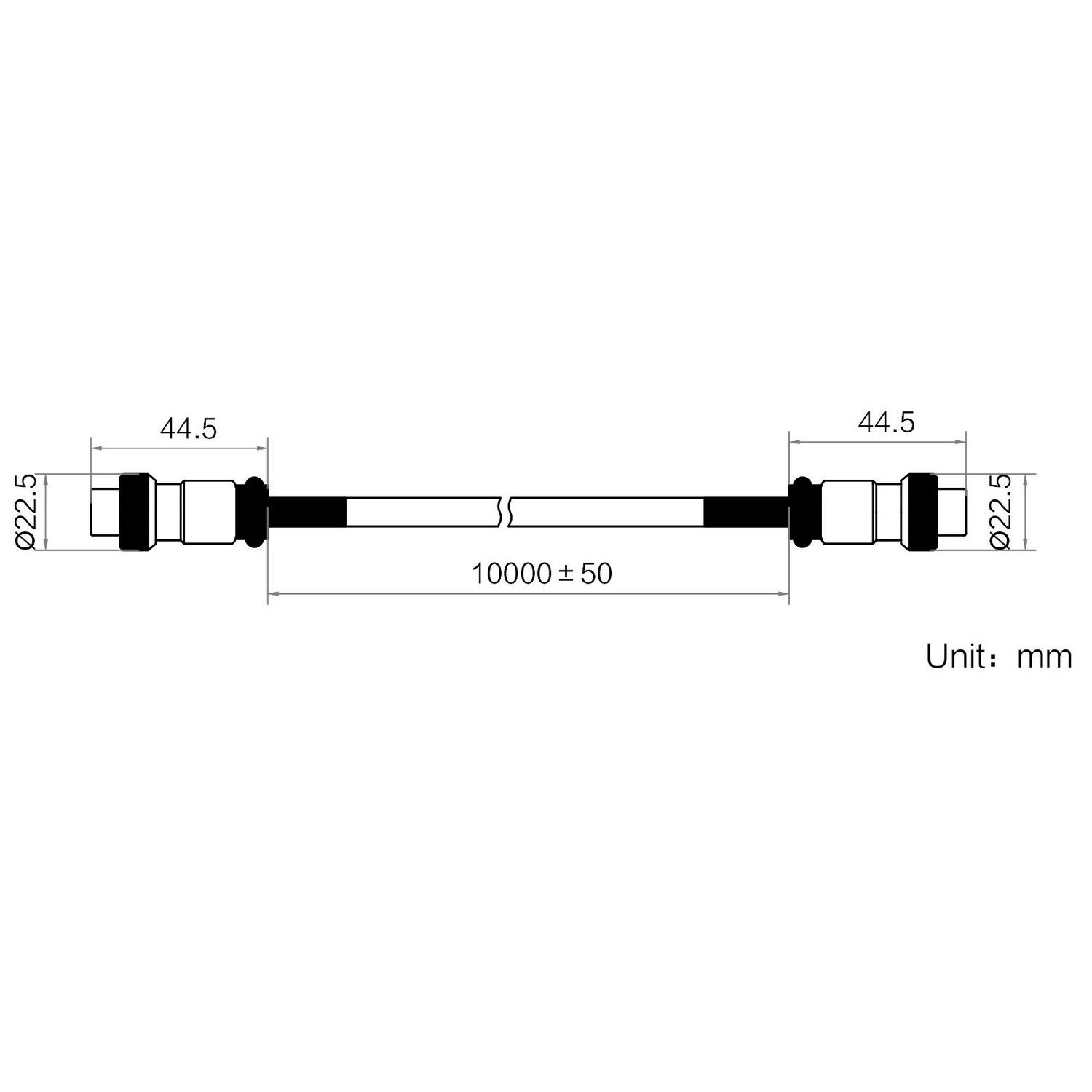

| Length | 10 m | |
| Cable diameter | φ8.75 mm | |
| Cable jacket | PVC | |
| Max. ±90° bending cycles | 20000 times | |
| Min. bending radius | 70 mm | |
| Connector durability | 500 times | |
| Flame resistance rating | VW-1 | |
| Electrical specification | Insulation | ≥10 MΩ/KM |
| Withstand voltage capability | 300 V | |
| Mechanical | Temperature | Working temperature: 0 °C to 80 °C (32 °F to 176 °F)Storage temperature: -20 °C to 80 °C (-4 °F to 176 °F) |
| Humidity | 20% to 90%RH,non-condensing | |
| Ingress protection | IP55（under correct installation） | |
| General | Certification | RoHS |
