- Various connector types to adapt to various machine vision light source interfaces
- MV-LW-H-***-19M8ASeries models, need to be used with MV-LTDS-H series line light source
- Multiple lengths are available to meet the installation methods of different distances of the light source (note that there is a certain voltage drop at long distances)

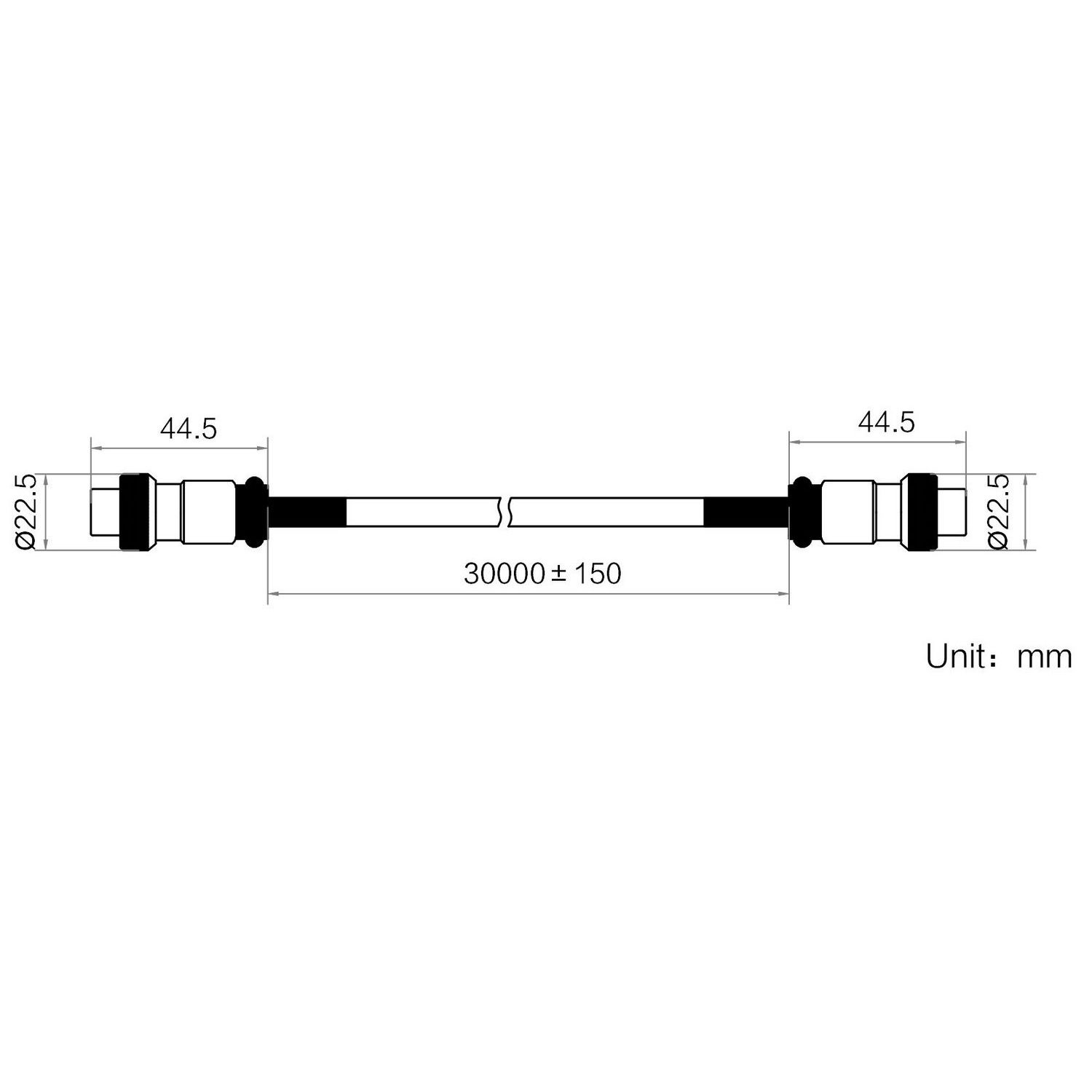

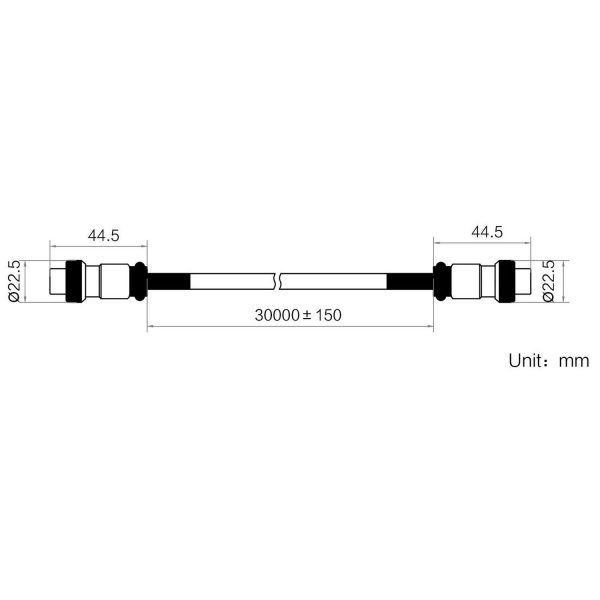

MV-LW-H-030-1-19M8A
HIKROBOT Light Source extension cable, 19M-8A to 19M-8A, 30m
HIKROBOT Light Source extension cable, 19M-8A to 19M-8A, 30m
Hikrobot provides high-quality cable products including power line, I/O control line, data transmission line to fulfill diverse application needs.
The cables’ length covers 0.5 m – 80 m to meet requirements in different scenarios. Even at the maximum length, the data transmission maintains high stability. Some cables also have motion performance, support the application scenes of moving drag chains.
Product Downloads:
| Model | Model | MV-LW-H-030-1-19M8A |
| Name | MV-LW-H-030-1-19M8A | |
| Physical Specifications | Number of Channels | 1 |
| Interface at A-end | 19M-8A | |
| Interface at B-end | 19M-8A | |
| Length | 30 m | |
| Wire Harness Diameter | φ8.75 mm | |
| Cable Material | PVC | |
| Number of ±90° Bending Cycles | 2 million times | |
| Minimum Bending Radius | 70 mm | |
| Maximum plugging and unplugging times | 500 times | |
| Cable flammability grade | VW-1 | |
| Electrical specifications | Insulation characteristics | ≥10 MΩ/KM |
| Withstand voltage | 300 V | |
| Structure | Temperature | Working temperature -0 ~ 80°C, storage temperature -20 ~ 80°C |
| Humidity | 20% ~ 90%RH | |
| IP protection grade | IP55 (when properly installed) | |
| General Specifications | Certification | RoHS |
