- Adopts small-size design for all types of machines and compact workstations.
- Adopts embedded hardware platform for high-speed image processing.
- Adopts built-in positioning and measurement algorithms to detect object’s existence, quantity, location, etc.
- Integrated LED aimer to allow the field-of-view to be clearly.
- Provides multiple indicators for displaying device status.
- Supports multiple communication protocols, including Modbus, EtherNet/IP, Profinet, FTP, UDP, TCP, and Serial Port
MV-SC1003M-03S-WBN-NR
HIKROBOT Smart Camera SC1000 Series
HIKROBOT Smart Camera SC1000 Series
With built-in positioning and measurement algorithms, MV-SC1003M vision sensor can detect object’s existence, quantity, location, etc.
It can be monitored and operated via the SCMVS client.
It can output results via RS-232 and Ethernet, and cooperate with other processes via IO. The vision sensor supports multiple result output methods and customized result text outp
Product Downloads:
| Model | Product Model | MV-SC1003M-03S-WBN-SR / MV-SC1003M-03S-WBN-NR |
| Type | SC1000 series vision sensor, 0.3MP, Mono | |
| Tool | Vision tool | Count: Spot count, edge count, pattern count; Existence: Circle existence, line existence, spot existence, edge existence, contour existence; Location: Position fixture; Logic tool: Condition judge, logic judge, combination judge, calculator; Measurement: L2L angle, diameter measurement, brightness analysis, contrast measurement, width measurement, P2L measurement, greyscale size, line angle, edge width measurement; Recognition: Classification registration |
| Solution capacity | Supports solution importing and exporting, and up to 8 solutions and 40 modules can be stored. | |
| Communication protocol | Modbus, EtherNet/IP, Profinet, FTP, UDP, TCP client, TCP server, Serial Port, MELSEC/SLMP, FINS, Keyence KV | |
| Camera | Sensor type | CMOS, global shutter |
| Pixel size | 3.74 µm × 3.74 µm | |
| Sensor size | 1/6″ | |
| Resolution | 640 x 480 | |
| Max. frame rate | 15 fps | |
| Dynamic range | 60 dB | |
| SNR | 40 dB | |
| Gain | 1 dB to 15 dB | |
| Exposure time | 60 μs to 7000 μs | |
| Pixel format | Mono 8 | |
| Mono/color | Mono | |
| Electrical feature | Data interface | Fast Ethernet |
| Digital I/O | Green terminal provides power, digital I/O, and serial port, including input signal × 1 (IN0), output signal × 1 (OUT0), and RS-232 × 1. Supports triggering device via pressing top trigger button. | |
| Power supply | 12 VDC to 24 VDC | |
| Max. power consumption | Approx. 3 W@12VDC | |
| Mechanical | Lens mount | M5.5 mount |
| Focal length | 3.1 mm | |

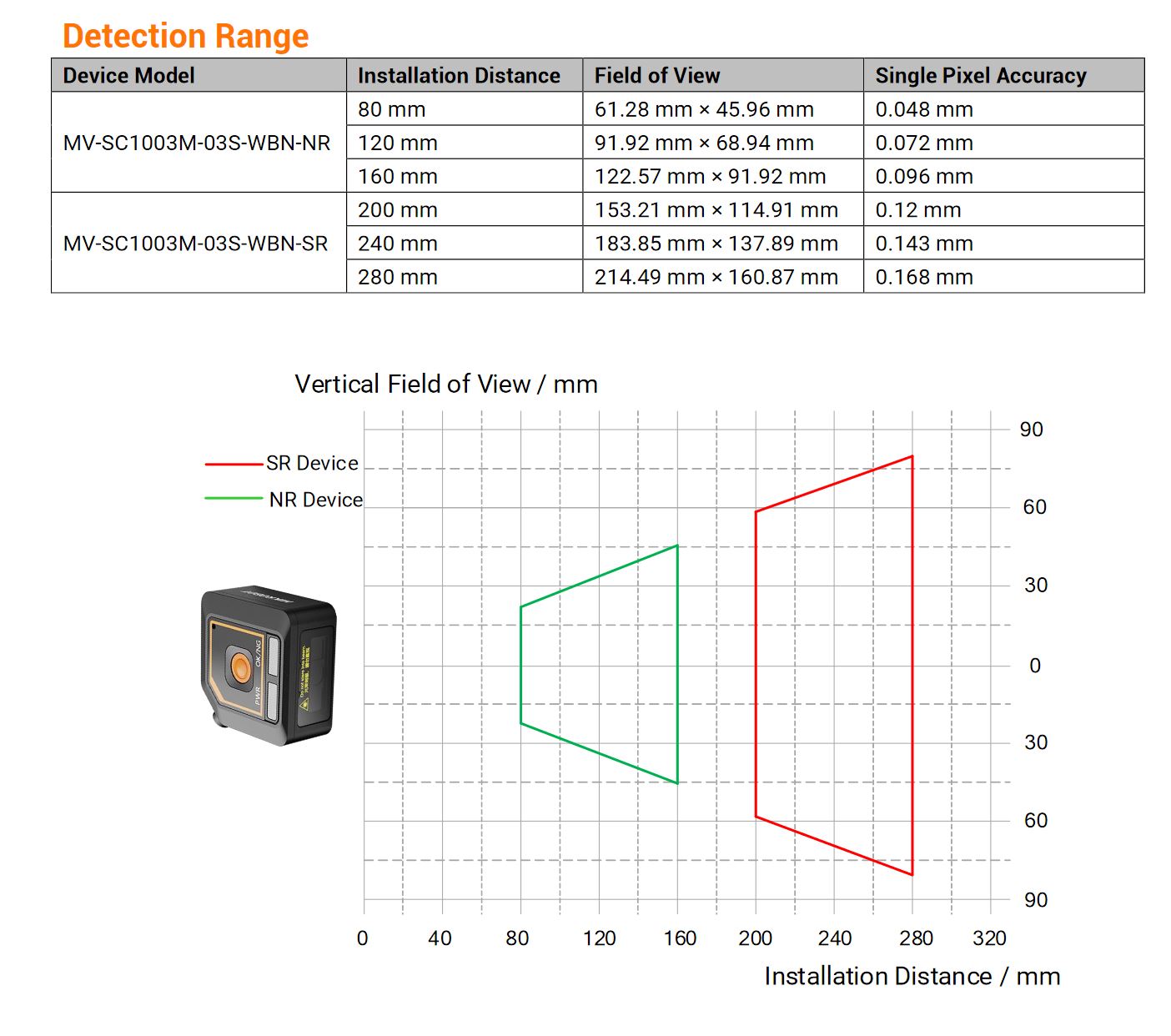

| Working distance | MV-SC1003M-03S-WBN-SR: 240 mm MV-SC1003M-03S-WBN-NR: 120 mm |
|
| Lens cap | Transparent lens cap | |
| Light source | White LED lamp | |
| Indicator | Power indicator (PWR), result indicator (OK/NG) | |

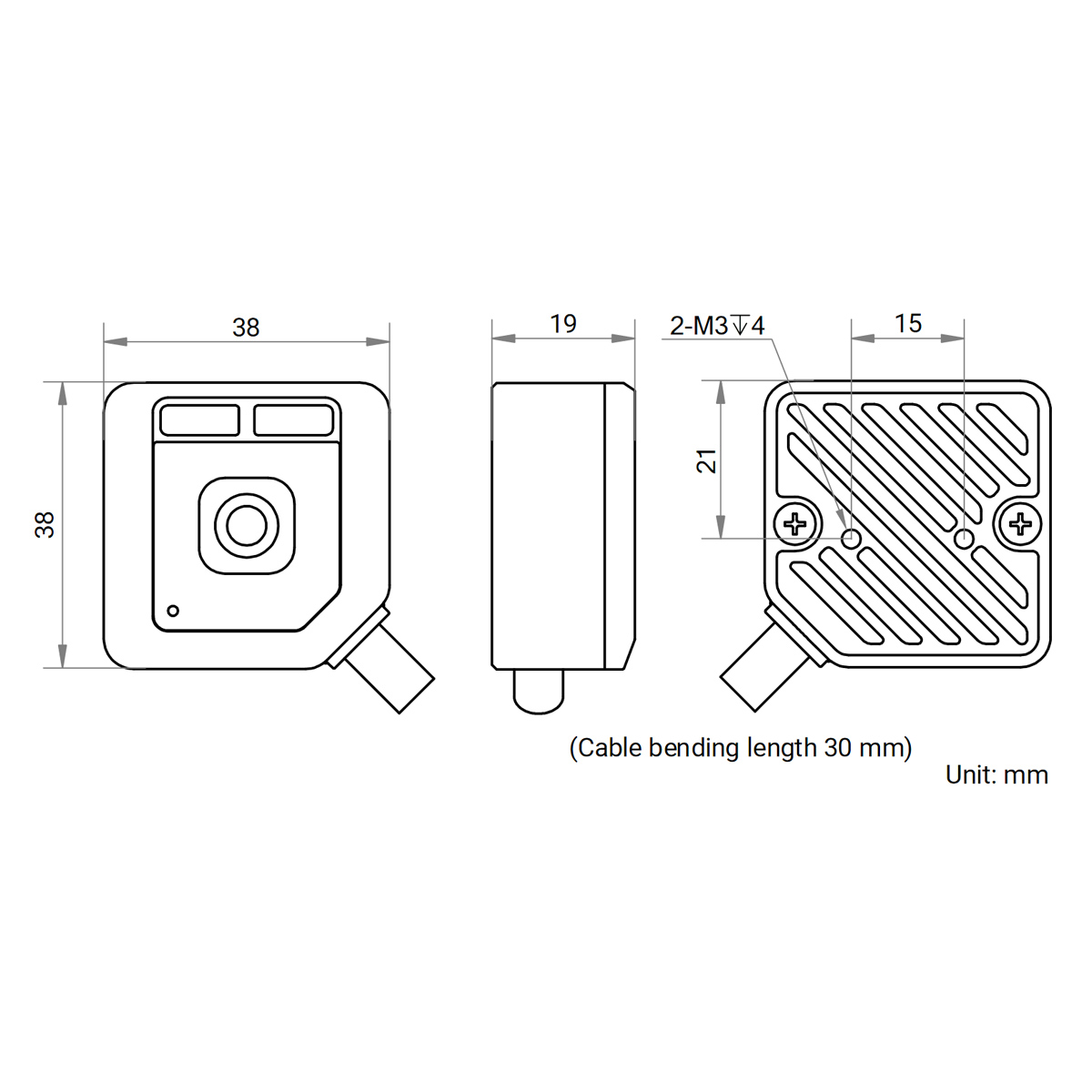

| Dimension | 38 mm × 38 mm × 19 mm (1.5″ × 1.5″ × 0.7″) | |
| Weight | Approx. 40 g (0.09 lb.) | |
| Ingress protection | IP54 | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | SCMVS |
| Certification | CE, KC |
