Adopts small-size design for all types of machines and compact workstations.
-
Adopts embedded hardware platform for high-speed image processing.
-
Adopts built-in positioning and measurement algorithms to detect object’s existence, quantity, location, etc.
-
Integrated laser to allow the field-of-view to be clearly.
-
Provides multiple indicators for displaying device status.
-
Supports multiple communication protocols, including Modbus, EtherNet/IP, Profinet, FTP, UDP, TCP, and Serial Port.
MV-SC1008M-05S-WBN-NR
HIKROBOT Smart Camera SC1000 Series
HIKROBOT Smart Camera SC1000 Series
With built-in positioning and measurement algorithms, MV-SC1008M vision sensor can detect object’s existence, quantity, location, etc. It can be monitored and operated via the SCMVS client.
It can output results via RS-232 and Ethernet, and cooperate with other processes via IO.
The vision sensor supports multiple result output methods and customized result text output.
Product Downloads:
| Model | Product Model | MV-SC1008M-05S-WBN-NR |
| Type | SC1000 series vision sensor，5mm focal length，focus 120mm，0.8MP，Mono | |
| Tool | Vision tool | Count: Spot count, edge count, pattern count Existence: Circle existence, line existence, spot existence, edge existence, contour existence Location: Position fixture Logic tool: Condition judge, logic judge, combination judge, calculator Measurement: L2L angle, diameter measurement, brightness analysis, contrast measurement, width measurement, P2L measurement, greyscale size, line angle, edge width measurement Recognition: Classification registration |
| Solution capacity | Supports solution importing and exporting, and up to 8 solutions and 40 modules can be stored. | |
| Communication protocol | Modbus, EtherNet/IP, Profinet, FTP, UDP, TCP client, TCP server, Serial Port, MELSEC/SLMP, FINS, Keyence KV | |
| Camera | Sensor type | CMOS, global shutter |
| Pixel size | 2.7 µm × 2.7 µm | |
| Sensor size | 1/4″ | |
| Resolution | 768 × 1024 | |
| Max. frame rate | 15 fps | |
| Dynamic range | 66 dB | |
| SNR | 40 dB | |
| Gain | 1 dB to 15 dB | |
| Exposure time | 60 μs to 7000 μs | |
| Pixel format | Mono 8 | |
| Mono/color | Mono | |
| Electrical feature | Data interface | Fast Ethernet (100 Mbit/s) |
| Digital I/O | Green terminal provides power, digital I/O, and serial port, including input signal × 1 (IN0), output signal × 1 (OUT0), and RS-232 × 1. Supports triggering device via pressing top trigger button. |
|
| Power supply | 12 VDC to 24 VDC | |
| Max. power consumption | Approx. 3 W @ 12 VDC | |
| Mechanical | Lens mount | M5-mount |
| Focal length | 4.9 mm | |
| Working distance | 120 mm | |
| Lens cap | Transparent lens cap | |
| Light source | White LED | |
| Aiming system | Cross laser | |
| Indicator | Power indicator (PWR), result indicator (OK/NG) | |

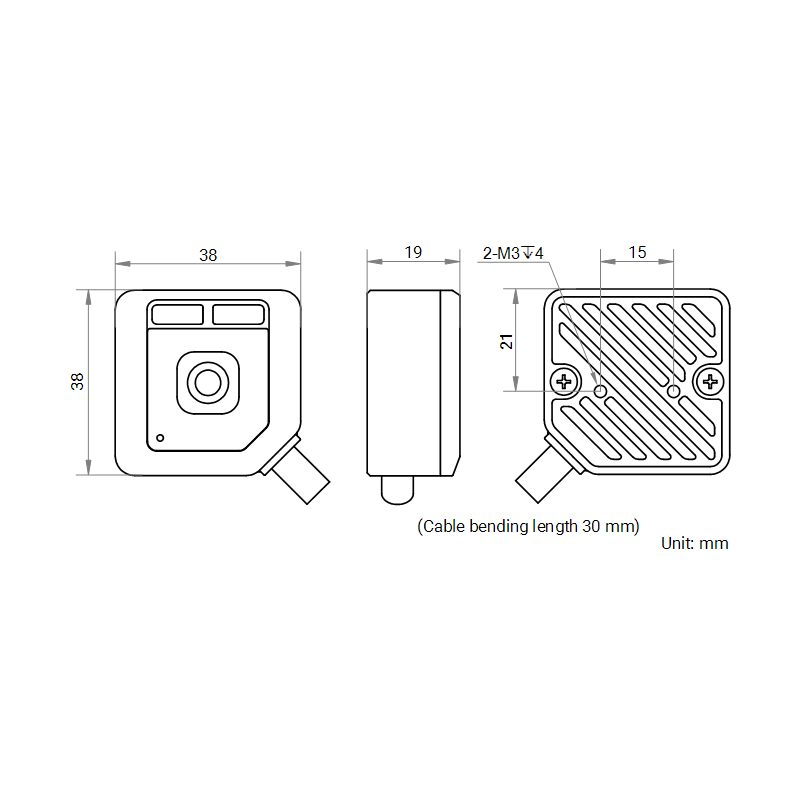

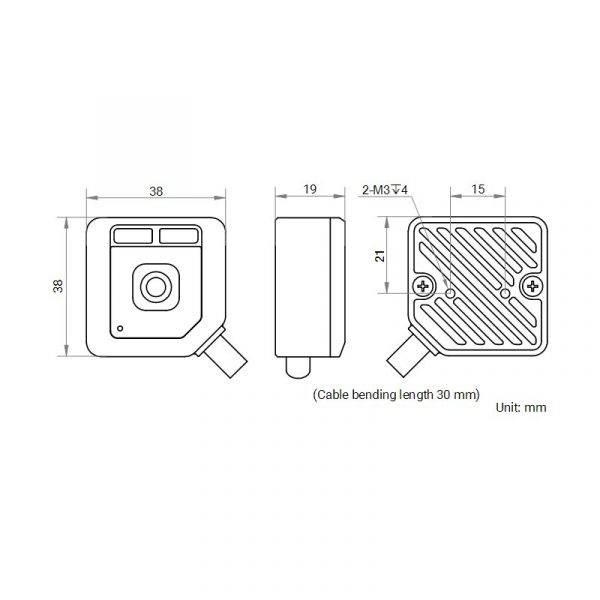

| Dimension | 38 mm × 38 mm × 19 mm (1.5″ × 1.5″ × 0.7″) | |
| Weight | Approx. 40 g (0.09 lb.) without cable | |
| Ingress protection | IP54 | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
|
| Humidity | 20% RH to 95% RH, no condensation | |
| General | Client software | SCMVS |
| Certification | CE, KC |
