- Adopts embedded hardware platform for high-speed image processing.
- Adopts built-in positioning and measurement algorithms to object’s existence, quantity, location, etc.
- Multiple IO interfaces for input and output signals.
- Multiple indicators for displaying device status.
- Adopts light source to ensure uniform brightness in the illuminated area.
- Supports multiple communication protocols, including Serial Port, TCP, UDP, FTP, Profinet, Modbus, etc.
MV-SC3050M-12M-WBN
HIKROBOT Smart Camera SC3000 Series
HIKROBOT Smart Camera SC3000 Series
Integrated with imaging, processing and communication functions, the SC3000 series has a more compact size and the vision detection tools lead to better performance. Equipped with a new SCMVS for on-site deployment and lower debugging requirements, bringing a more comprehensive and cost-effective choice for visual inspection!
Comprehensive Error-proofing Detection Algorithm Inspection solutions such as presence/absence, U/D, Positioning, counting, etc. are often used for error-proof inspection. More visual inspection tools can provide the optimal solution for parts of different shapes on the production line, making visual application easier.
Red, blue, white and infrared light sources provide better imaging for products of different colors.
Visible light polarization mirror to filter glare interference.
SV series display interface box, providing a visual SC2000Pro real-time detection interface and statistics
Vertical and coaxial wiring supported, to adapt to more field applications.
Product Downloads:
| Model | Product Model | MV-SC3050M-12M-WBN |
| Type | SC3000 series vision sensor，12mm focal length，5MP，Mono | |
| Tool | Vision tool | Count: Pattern count, spot count, edge countDefect detection: Exception detectionExistence: Pattern existence, spot existence, edge existence, circle existence, line existenceLocation: Match location, match calibration, fixtureLogic tool: If module, condition judge, logic judge, combination judge, character comparison, calculatorMeasurement: L2L angle, diameter measurement, brightness average value, contrast measurement, width measurement, P2L measurement, greyscale size, line angle, edge width measurementRecognition: OCR, code recognition |
| Solution capacity | Supports solution importing and exporting, up to 32 solutions and 40 modules can be stored. | |
| Communication protocol | Serial Port, TCP, UDP, FTP, Profinet, Modbus, Ethernet/IP | |
| Camera | Sensor type | CMOS, global shutter |
| Pixel size | 3.2 µm × 3.2 µm | |
| Sensor size | 1/1.7″ | |
| Resolution | 2368 × 1760 | |
| Max. frame rate | 30 fps | |
| Dynamic range | 71.4 dB | |
| SNR | 41 dB | |
| Gain | 0 dB to 18 dB | |
| Exposure time | 16 μs to 1 sec | |
| Pixel format | Mono 8 | |
| Mono/color | Mono | |
| Electrical feature | Data interface | Fast Ethernet |
| Digital I/O | 17-pin M12 connector provides power, Ethernet, digital I/O, and serial port: Input signal × 2 (Line 0/1), output signal × 3 (Line 5/6/7), bi-directional I/O × 3 (Line 2/3/4), and external button input × 1. Output signal can be set as NPN or PNP. | |
| Power supply | 24 VDC | |
| Max. power consumption | Approx. 48 W@24 VDC | |
| Mechanical | Lens mount | M12-mount, mechanical autofocus lens |
| Focal length | 12.4 mm (0.5″) | |
| Lens cap | Transparent lens cap. Polarization or infrared filter lens cap is optional. | |
| Light source | White light by default. Red/blue/near-infrared is optional. | |
| Indicator | Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG) | |

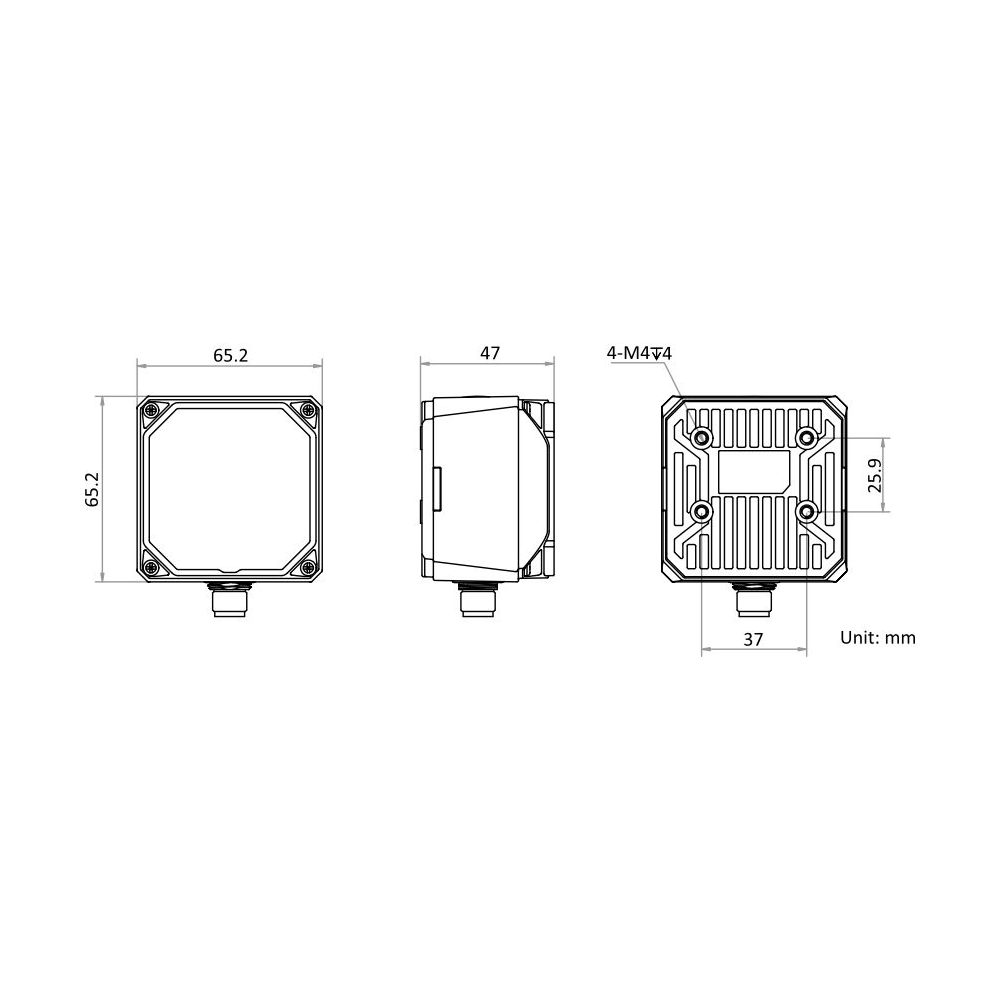

| Dimension | 65.2 mm × 65.2 mm × 47 mm (2.6″ × 2.6″ × 1.9″) | |
| Weight | Approx. 280 g (0.6 lb.) | |
| Ingress protection | IP67 (under proper installation of lens and wiring) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | SCMVS |
| Certification | CE, FCC, KC |
