- Adopts AI deep learning algorithm to achieve OCR, object recognition, defect detection, etc.
- Integrates VM functions and supports more than 140 algorithms.
- Adopts multiple interfaces and supports multiple-channel I/O, light source, display, etc.
- Adopts high-performance CPU with faster calculation performance and high efficiency.
- Supports multiple communication protocols.
- Supports indicators displaying device status for easy debugging and maintenance.
- Supports ingress protection IP67.
MV-SC6050C-00C-NNN

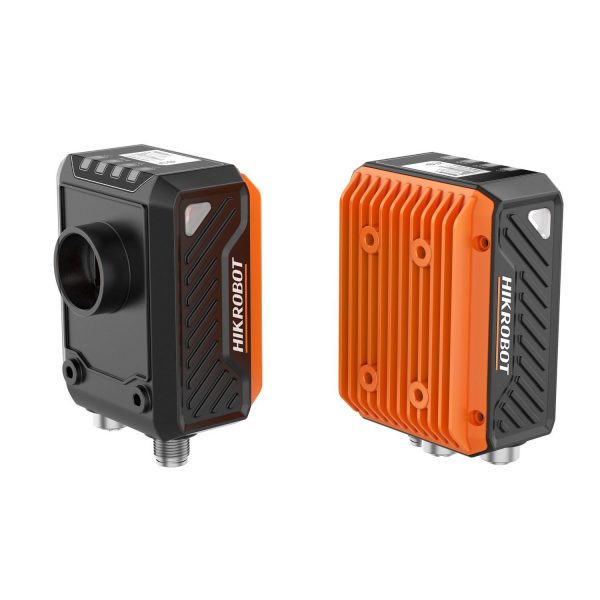

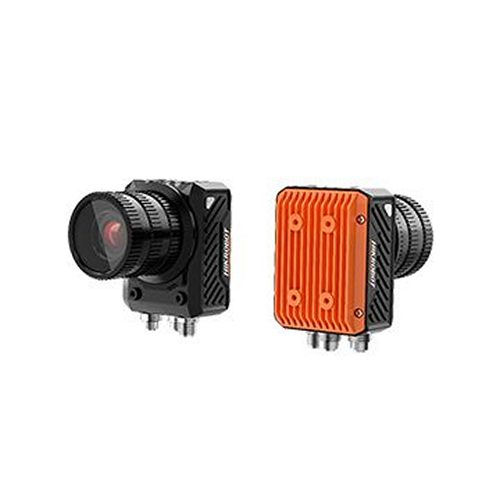

HIKROBOT Smart Camera SC6000 Series
HIKROBOT Smart Camera SC6000 Series
SC6000 series AI smart camera is developed on a high-performance embedded platform, it have strong AI capabilities. Built in VM algorithm software, free to use 140+algorithm functions. With powerful processing capabilities while also considering high usability and flexibility, it can be widely used in positioning, measurement, identification and detection of various industries. It is the best choice for single camera vision system.
The SC6000 AI smart camera has more than 140 visual tools, over 30 communication protocols, and adopts graphical interaction and process based operations, improving the application flexibility of smart cameras; SC6000 with high computing power and strong flexibility can handle everything from simple presence and absence judgments to complex defect detection, making it more adaptable to scenarios.
While maintaining high hardware integration, SC6000 supports the combination and combination of various accessories such as C-mount lens, external light source, and display, improving the application flexibility and complex scene response ability of AI smart cameras. Users can flexibly choose and match according to scene requirements, breaking through the application limitations of smart cameras.
Product Downloads:
| Model | Product Model | MV-SC6050C-00C-NNN |
| Type | SC6000 series Smart Camera, 5MP，Color，C-Mount | |
| Tool | Function module | VM Platform |
| Communication protocol | TCP, UDP, ModBus, Serial Port, Profinet, EtherNet/IP, Fins, MC, FTP, etc. | |
| Camera | Sensor type | CMOS, global shutter |
| Pixel size | 3.2 µm × 3.2 µm | |
| Sensor size | 1/1.7″ | |
| Resolution | 2560 × 2048 | |
| Max. frame rate | 40 fps | |
| Gain | 0 dB to 18 dB | |
| Exposure time | 16 μs to 1 sec | |
| Pixel format | Mono 8, RGB 8 | |
| Mono/color | Color | |
| Platform | Memory | 8 GB |
| Storage | 64 GB | |
| Electrical feature | Data interface | GigE |
| Digital I/O | 17-pin M12 male connector provides power and I/O, providing opto-isolated input × 2 (Line 0/1), opto-isolated output × 2 (Line 4/5), configurable non-isolated input/output × 2 (Line 2/3), RS-232 × 1, light source output (max. 30 W) × 1 | |
| Extended interface | 17-pin M12 female connector provides VGA × 1 and USB host × 1 | |
| Power supply | 24 VDC | |
| Power consumption | Approx. 12.5 W @24 VDC (without external light source)Approx. 42.5 W @24 VDC (with external light source) | |
| Mechanical | Lens mount | C-mount |
| Lens cap | Transparent lens cap | |
| Light source | Not included | |
| Indicator | Power indicator (PWR), network indicator (LNK), status indictor (STS), and user-defined indicator (U1/U2) | |

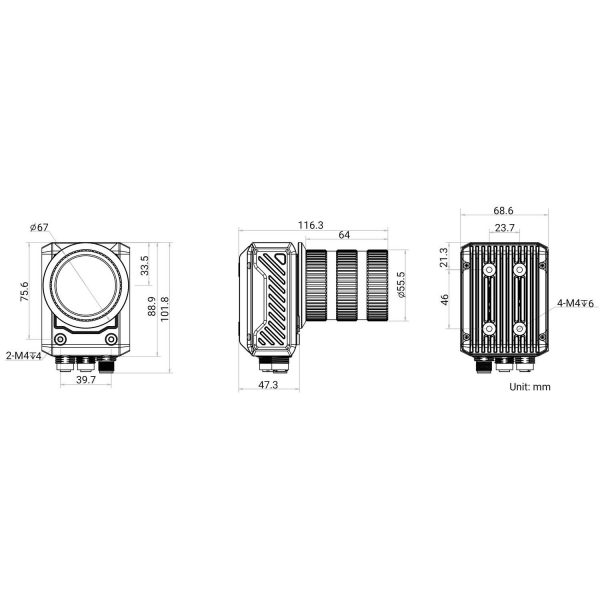

| Dimension | 116.3 mm × 68.6 mm × 101.8 mm (4.6″ × 2.7″ × 4.0″) | |
| Weight | Approx. 530 g (1.2 lb.) | |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Certification | CE, KC |
