- Adopts AI deep learning algorithm to achieve OCR, object recognition, defect detection, etc.
- Integrates VM functions and supports more than 140 algorithms.
- Supports four-color light source (red/green/blue/white), and switching as needed.
- Adopts multiple I/O interfaces, such as multiple input/output signals.
- Supports multiple communication protocols.
- Supports indicators displaying device status for easy debugging and maintenance.
- Supports ingress protection IP67.

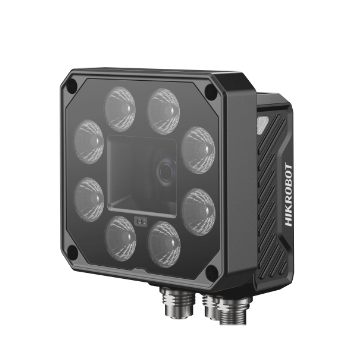

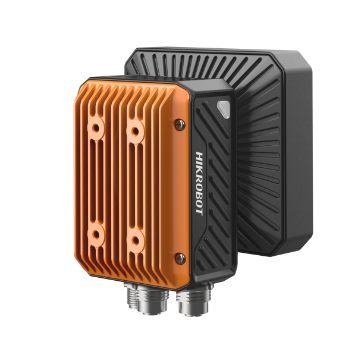

MV-SC6050C-08M-XBN
HIKROBOT Smart Camera SC6000 Series
HIKROBOT Smart Camera SC6000 Series
MV-SC6050M smart camera is developed based on highperformance embedded platform with strong calculation performance. It integrates VM functions and AI deep learning algorithm, and can use more than 140 algorithms.
It adopts multiple interfaces for supporting external light source, display, mouse, etc.
Applicable Industry:
Consumer electronics, food and pharmaceutical, packaging, positioning and grabbing, etc.
Product Downloads:
| Model | Product Model | MV-SC6050C-08M-XBN |
| Type | SC6000 Series Smart Camera，5MP，Color，M12-8mm focal length，Multi-color light source | |
| Tool | Function module | VM Platform |
| Communication protocol | TCP, UDP, ModBus, Serial Port, Profinet, EtherNet/IP, Fins, MC, FTP, etc. | |
| Camera | Sensor type | CMOS, global shutter |
| Pixel size | 3.45 μm × 3.45 μm | |
| Sensor size | 1/1.45″ | |
| Resolution | 2432 × 2048 | |
| Max. frame rate | 80 fps | |
| Gain | 0 dB to 18 dB | |
| Exposure time | 16 μs to 1 sec | |
| Pixel format | Mono 8, RGB 8 | |
| Mono/color | Color | |
| Platform | Memory | 8 GB |
| Storage | 64 GB | |
| Electrical feature | Data interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 17-pin M12 male connector provides power and I/O, providing opto-isolated input × 2 (Line 0/1), opto-isolated output × 2 (Line 4/5), configurable non-isolated input/output × 2 (Line 2/3), RS-232 × 1, light source output (max. 30 W) × 1 | |
| Extended interface | 17-pin M12 female connector provides VGA × 1 and USB host × 1 | |
| Power supply | 24 VDC | |
| Power consumption | Approx. 12 W @ 24 VDC (without external light source) Approx. 42 W @ 24 VDC (with external light source) Approx. 16.6 W @ 24 VDC (light source is enabled) |
|
| Mechanical | Lens mount | M12-mount |
| Focal length | 8 mm | |
| Light source | Red light, green light, blue light, white light (switching by software) | |
| Indicator | Power indicator (PWR), network indicator (LNK), status indictor (STS), and user-defined indicator (U1/U2) | |

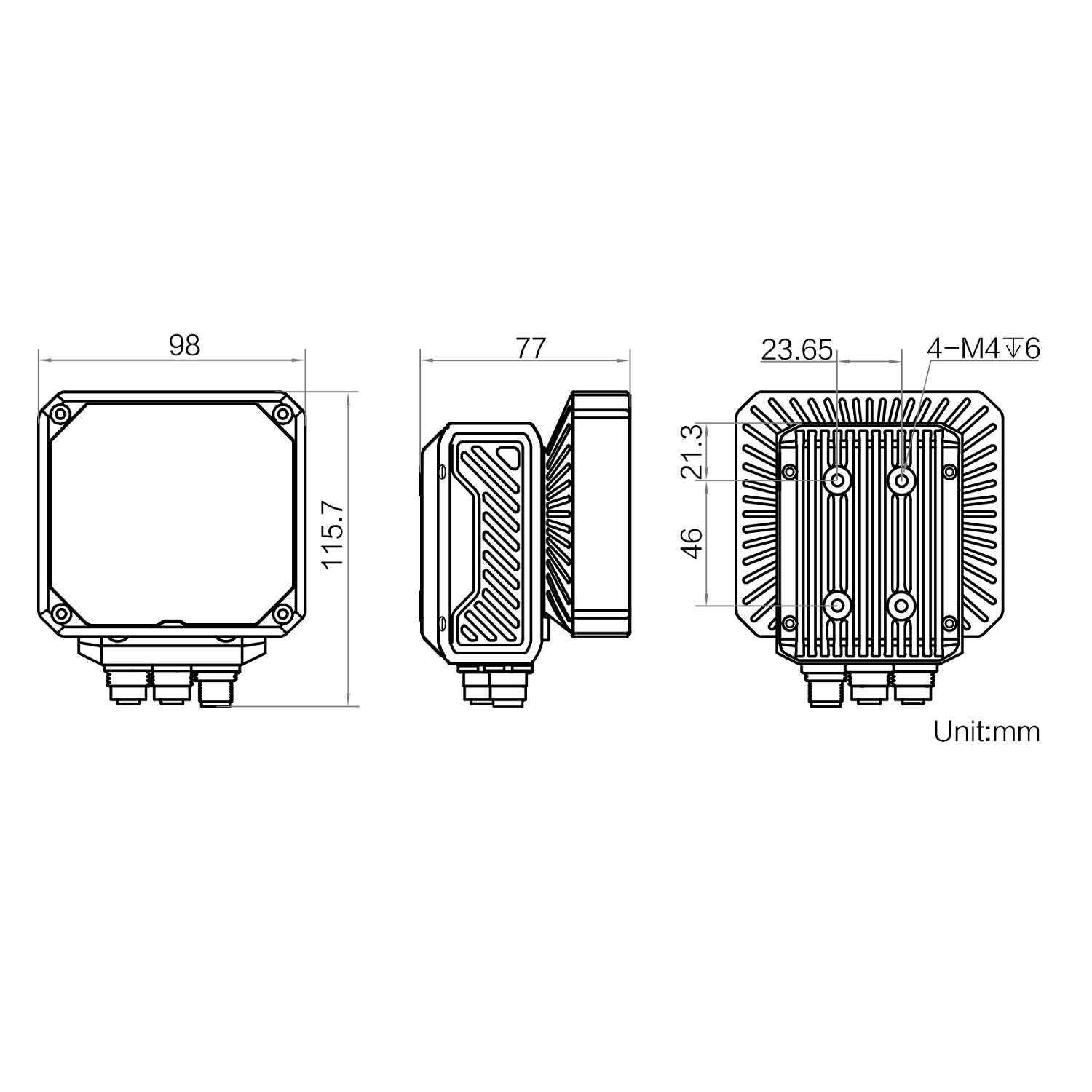

| Dimension | 77 mm × 98 mm × 115.7 mm (3.0″ × 3.9″ × 4.6″) | |
| Weight | Approx. 750 g (1.7 lb.) | |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
|
| Humidity | 20% RH to 95% RH, no condensation | |
| General | Certification | CE, KC |
